BUILT-IN REFRIGERATION
Overlay and Flush Inset Panels

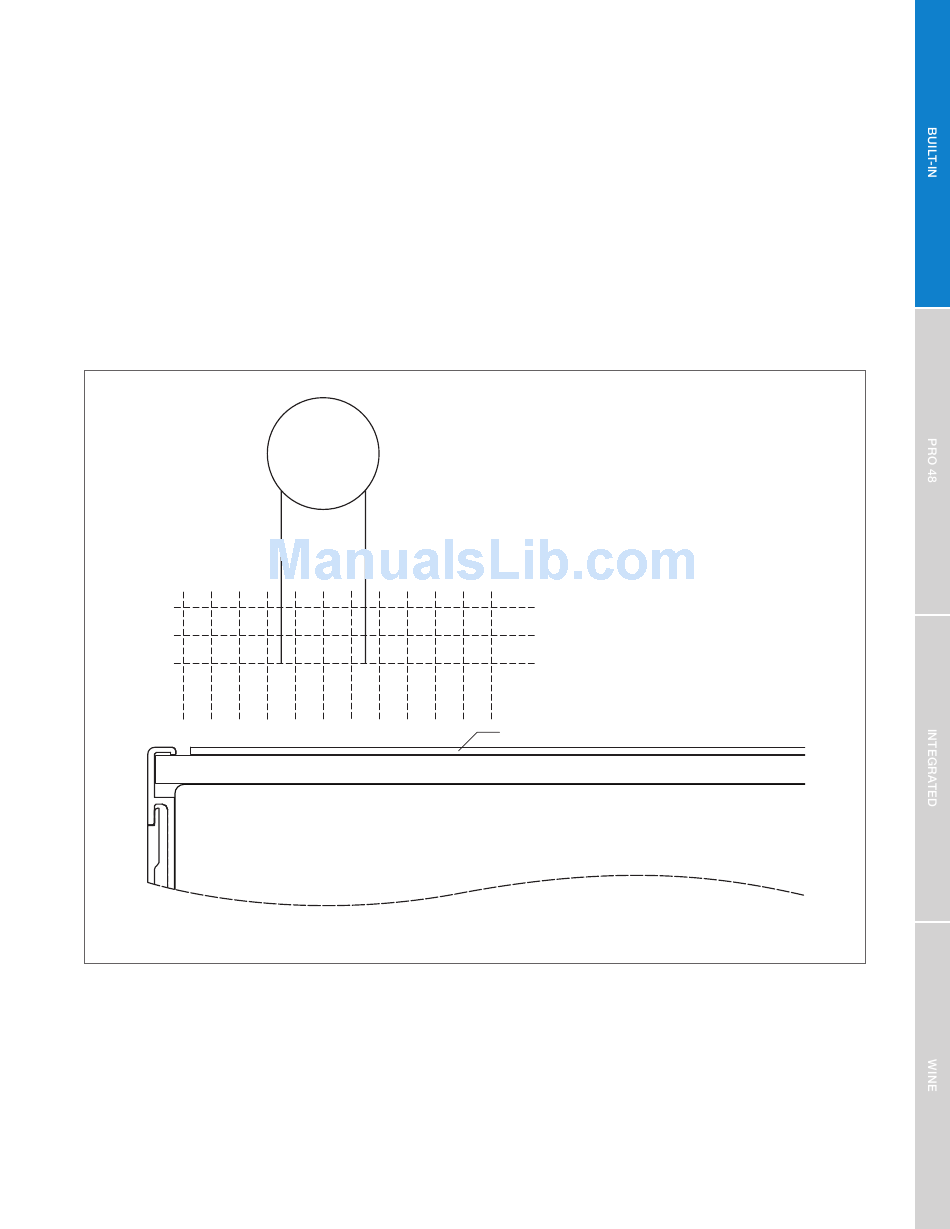

FULL-SCALE TEMPLATE
Overlay and flush inset panels must be a minimum of 16
mm thick to support mounting the handle. Panel thickness
does not include backer and spacer panel. Mount handle
close to the opening edge of the door.
25
mm
Overlay and flush inset panel thickness.
DEPTH OF TUBULAR
AND PRO HANDLES
51
mm
6 mm
BACKER PANEL
DOOR
76
mm
32 mm
PANEL
25 mm
PANEL
19 mm
PANEL
3 mm
SPACER PANEL
|
