Connecting external devices

This section will discuss the connectors for the Matrox Meteor-II /Multi-Channel
PCI and PC/104-Plus form factors.

Matrox Meteor-II /Multi-Channel for PCI

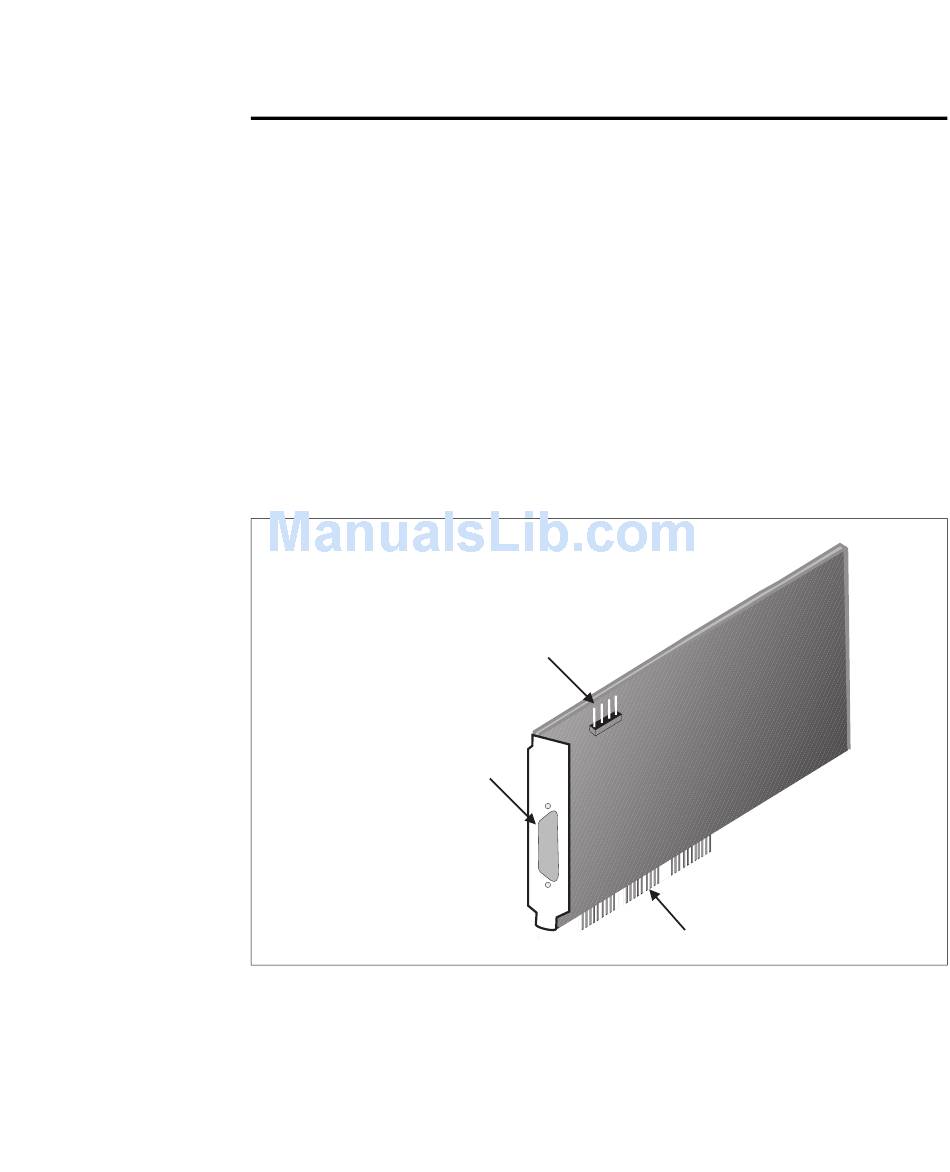

Matrox Meteor-II /Multi-Channel has three connectors, which are indicated in
the diagram below. One of these connectors is located on its bracket. The
connectors listed are discussed in detail in Appendix B.
• Video input connector. Used to receive analog video, as well as send and receive
synchronization signals and power.
• Auxiliary power supply input. Used to route power from your computer through
the Matrox Meteor-II board to your camera.
Auxiliary power supply input
Video input
Connecting external devices
PCI connector
