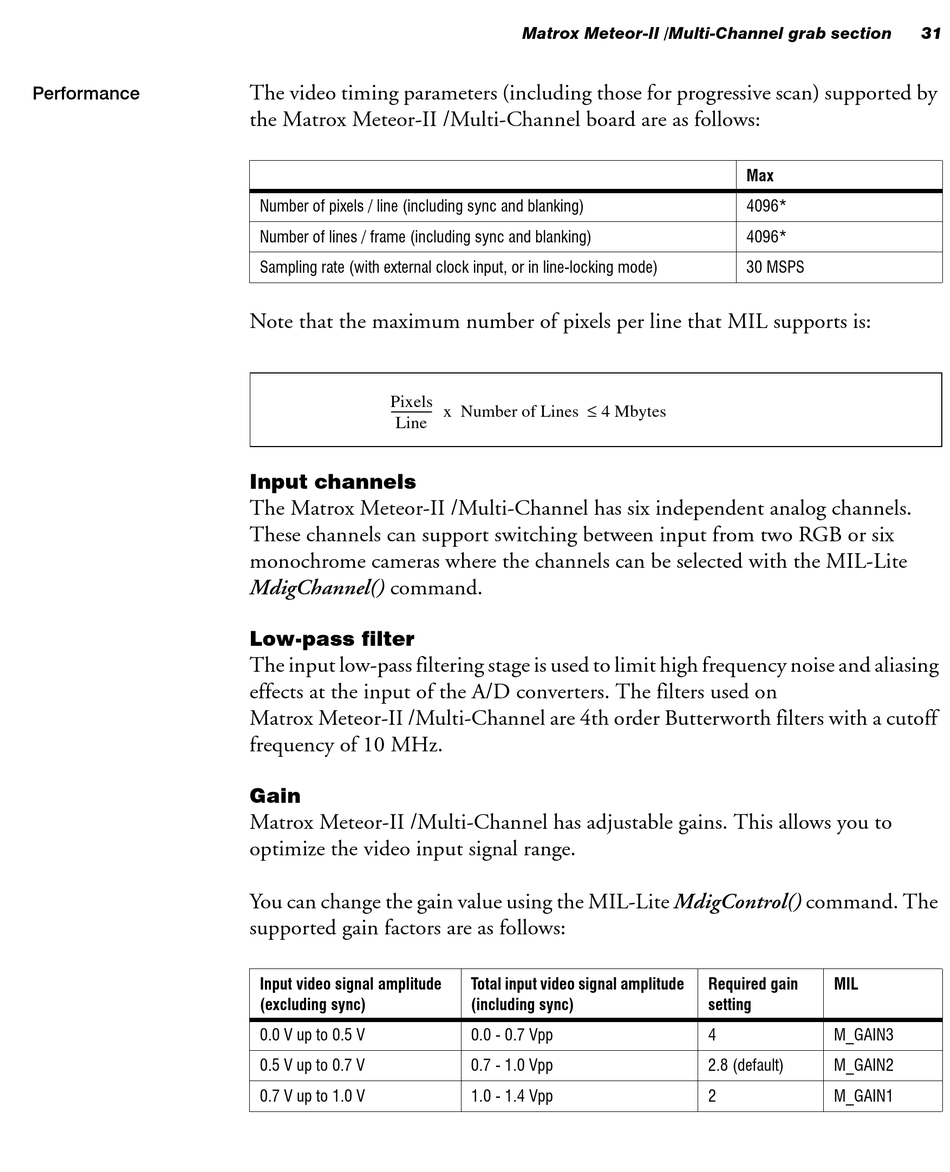

Performance
The video timing parameters (including those for progressive scan) supported by
the Matrox Meteor-II /Multi-Channel board are as follows:
Number of pixels / line (including sync and blanking)
Number of lines / frame (including sync and blanking)
Sampling rate (with external clock input, or in line-locking mode)
Note that the maximum number of pixels per line that MIL supports is:
Pixels
------------- - x Number of Lines
Line

Input channels

The Matrox Meteor-II /Multi-Channel has six independent analog channels.
These channels can support switching between input from two RGB or six
monochrome cameras where the channels can be selected with the MIL-Lite
MdigChannel() command.

Low-pass filter

The input low-pass filtering stage is used to limit high frequency noise and aliasing
effects at the input of the A/D converters. The filters used on
Matrox Meteor-II /Multi-Channel are 4th order Butterworth filters with a cutoff
frequency of 10 MHz.

Gain

Matrox Meteor-II /Multi-Channel has adjustable gains. This allows you to
optimize the video input signal range.
You can change the gain value using the MIL-Lite MdigControl() command. The
supported gain factors are as follows:
Input video signal amplitude
(excluding sync)
0.0 V up to 0.5 V
0.5 V up to 0.7 V
0.7 V up to 1.0 V
Matrox Meteor-II /Multi-Channel grab section
≤
4 Mbytes
Total input video signal amplitude
(including sync)
0.0 - 0.7 Vpp
0.7 - 1.0 Vpp
1.0 - 1.4 Vpp
Max
4096*
4096*
30 MSPS
Required gain MIL
setting
4 M_GAIN3
2.8 (default) M_GAIN2
2 M_GAIN1
