Altronix eFlow6NV Installation Manual page 10

NEC Power-Limited Wiring Requirements for eFlow6NXV Models:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring
must remain at least 0.25" away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring
and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this
is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may
be used. For power- limited applications use of conduit is optional. All field wiring connections must be made employing
suitable gauge CM or FPL jacketed wire (or equivalent substitute).
Optional battery enclosure must be mounted adjacent to the power supply.
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 9a).

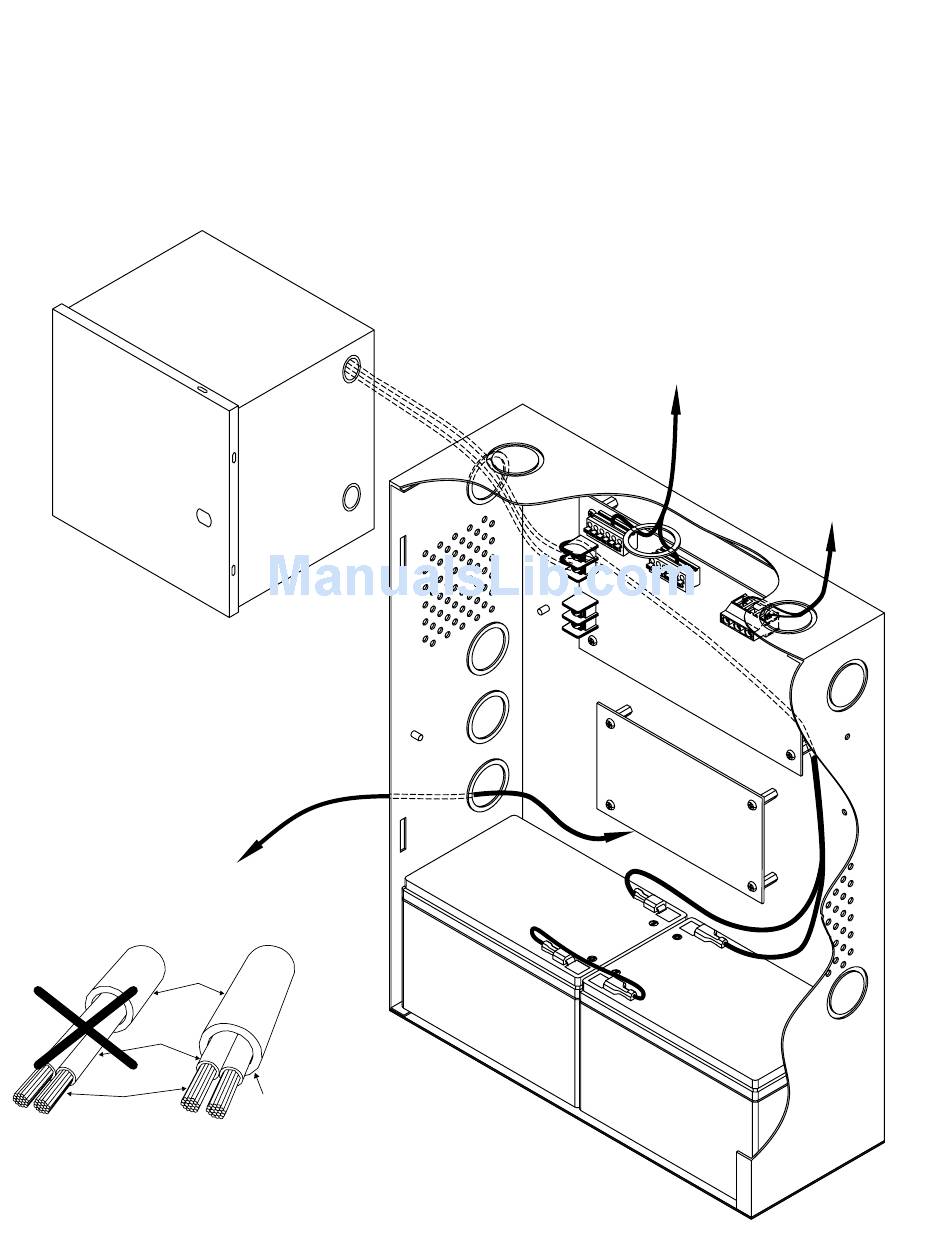

Fig. 9
Optional Battery
Enclosure
(non power-limited)
DC Output*
Fig. 9a
Incorrect Wire
Handling
External
Jacketed
Shield
Wire
Insulation
Solid Copper
Conductors
*Outputs are non power-limited:
eFlow6NXV, eFlow6NX8V, eFlow6NX16V.
Outputs are power-limited:
eFlow6NX8DV, eFlow6NX16DV.
- 10 -
Correct Wire
Handling
Pull back
external jacketed
shield approx. 1/2".
Supervisory, Fire Alarm Interface
and Aux. output Connections
(power-limited)
Power
Distribution
Battery
Connections
(non power-
limited)
220VAC Input
50/60Hz
(non power-
limited)
eFlow6NV Series
