SFP stapler assembly sensor (paddle HP) removal
1. Remove the left cover. Go to
2. Disconnect the harness to the sensor (paddle home position).

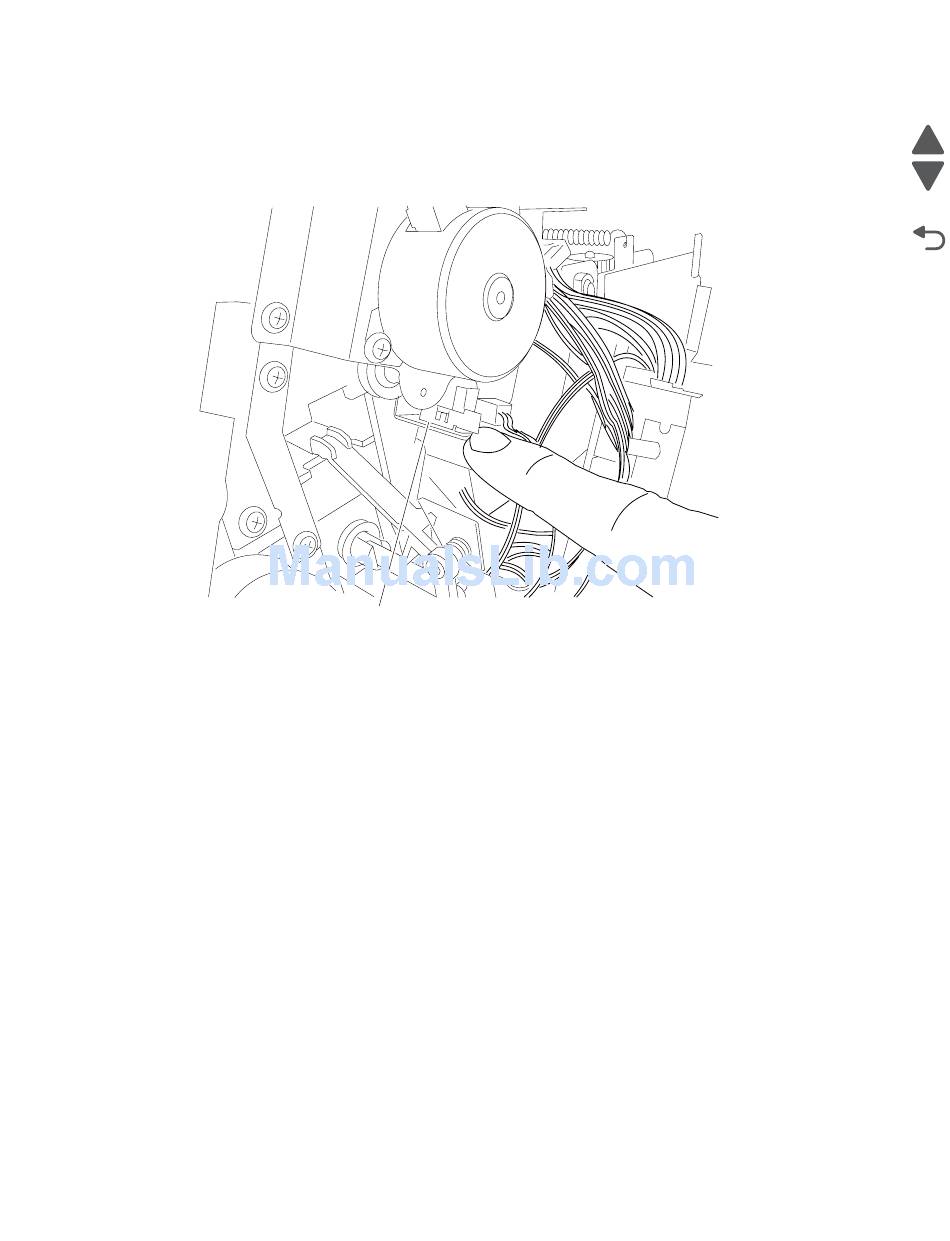

3. Using your fingers, pinch tab (A) securing the sensor (paddle home position) and remove.
4-186
Service Manual
"SFP stapler assembly left cover removal" on page
A
4-174.
