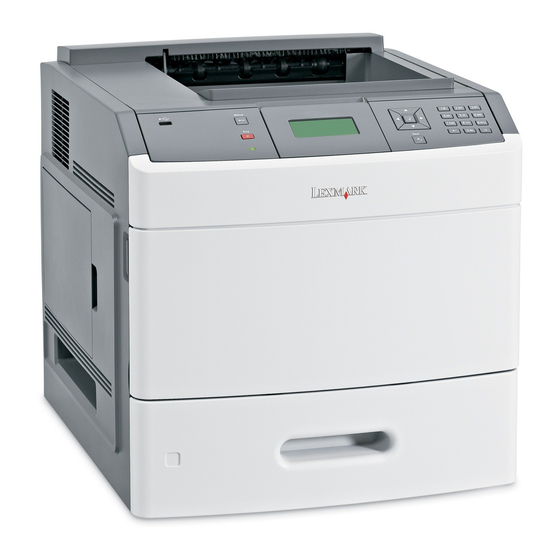

Page 1 T650, T650n, T652dn, & T654dn Printer 4062-XXX • Table of contents • Start diagnostics • Safety and notices • Trademarks • Index Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
Page 2 Lexmark, Lexmark with diamond design, and MarkNet are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company.
Page 3: Table Of Contents
4062-XXX Table of contents Table of contents ............iii Notices and safety information .
Page 4 4062-XXX Sensor (pass through) lingering jam service check........2-137 Sensor (pass through) static jam service check .
Page 5 4062-XXX Feed Tests (input tray) ............3-11 Sensor Test (input tray) .
Page 6 4062-XXX Clear Custom Status .............3-24 Best Speed .
Page 7 4062-XXX Fuser control ..............3-45 Fuser control method .
Page 8 4062-XXX Handling ESD-sensitive parts ............4-1 Adjustments .
Page 9 4062-XXX Side cover, right removal (T652, T654) ..........4-59 Sensor (duplex input) removal (T652, T654) .
Page 10 4062-XXX Media size actuator removal ........... . .4-124 550-sheet option drive shaft with spring removal .
Page 11 4062-XXX 5-bin mailbox media bin fifth diverter removal ........4-134 5-bin mailbox media bin first through fourth diverter removal .
Page 12 4062-XXX Service Manual...
Page 13: Notices And Safety Information
4062-XXX Notices and safety information The following laser notice labels may be affixed to this printer. Laser notice The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Page 14 4062-XXX Avisos sobre el láser Se certifica que, en los EE.UU., esta impresora cumple los requisitos para los productos láser de Clase I (1) establecidos en el subcapítulo J de la norma CFR 21 del DHHS (Departamento de Sanidad y Servicios) y, en los demás países, reúne todas las condiciones expuestas en la norma IEC 60825-1 para productos láser de Clase I (1).
Page 15 4062-XXX Laserilmoitus Tämä tulostin on sertifioitu Yhdysvalloissa DHHS 21 CFR Subchapter J -standardin mukaiseksi luokan I (1) - lasertuotteeksi ja muualla IEC 60825-1 -standardin mukaiseksi luokan I lasertuotteeksi. Luokan I lasertuotteita ei pidetä haitallisina. Tulostimen sisällä on luokan IIIb (3b) laser, joka on nimellisteholtaan 5 mW:n galliumarsenidilaser ja toimii 770 - 795 nanometrin aallonpituuksilla.
Page 16 4062-XXX Avís sobre el Làser Segons ha estat certificat als Estats Units, aquesta impressora compleix els requisits de DHHS 21 CFR, apartat J, pels productes làser de classe I (1), i segons ha estat certificat en altres llocs, és un producte làser de classe I que compleix els requisits d’IEC 60825-1.
Page 17 4062-XXX xvii Notices and safety information...
Page 18 4062-XXX xviii Service Manual...
Page 19: Lithium Warning
4062-XXX Lithium warning CAUTION This product contains a lithium battery. THERE IS A RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY AN INCORRECT TYPE. Discard used batteries according to the battery manufacturer’s instructions and local regulations. Safety information • The safety of this product is based on testing and approvals of the original design and specific components.
Page 20 4062-XXX Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung für die Sicherheit übernommen. • Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen Wartungsfachmann bestimmt.
Page 21 4062-XXX Informació de Seguretat • La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics. El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades. •...
Page 22: Preface
4062-XXX Preface This manual contains maintenance procedures for service personnel. It is divided into the following chapters: General information contains a general description of the printer and the maintenance approach used to repair it. Special tools and test equipment, as well as general environmental and safety instructions, are discussed.
Page 23: General Information
4062-XXX 1. General information The Lexmark™ laser printers are letter-quality page printers designed to attach to personal computers and to most computer networks. The Lexmark laser printers are available in the following models: Machine type Model Configuration 4062-010 T650n Network...
Page 24: Options
— IPDS and SCS/TNe — PrintCryption — PRESCRIBE • Printer hard disk • Lexmark™ Internal Solutions Ports (ISP) — RS-232-C serial interface ISP — Parallel 1284-B interface ISP — MarkNet N8150 802.11 b/g/n Wireless ISP — MarkNet N8130 10/100 Thick Fiber ISP —...
Page 25: Printer Configurations
4062-XXX Printer configurations Basic model The following illustration shows the basic printer model. Feature Paper Capacity Standard exit bin 250- or 550-sheet Printer control panel Multipurpose feeder 100 sheets Standard tray (Tray 1) 250- or 550-sheets Based on 75 g/m (20 lb.) paper.
Page 26: Fully Configured Model
You must use either a printer stand or printer base if you are using a 2000-sheet tray, a duplex unit, and an input option, or more than one input option. For more information, see www.lexmark.com/publications/furniture_safety. Service Manual...
Page 27 2000-sheet drawer. Certain other configurations also must have a printer stand or printer base. More information is available at our Lexmark Web site at www.lexmark.com/ multifunction printers.
Page 28: Supported Paper Sizes, Types, And Weights
4062-XXX Supported paper sizes, types, and weights The following tables provide information on standard and optional paper sources and the types of paper they support. Note: For an unlisted paper size, select the closest larger listed size. Paper sizes supported by the printer 250-or 550-sheet Optional Multipurpose...
Page 29: Paper Types And Weights Supported By The Printer
4062-XXX 250-or 550-sheet Optional Multipurpose Paper size Dimensions trays (standard 2000-sheet Duplex unit feeder or optional tray Other Envelope 98 x 162 mm (3.9 x 6.4 in.) to 176 x 250 mm (6.9 x 9.8 in.) This size appears in the Paper Size menu only when the paper source does not support size sensing or when size sensing is turned off.
Page 30: Tools Required
4062-XXX The finisher supports 60-176 g/m2 (16-47 lb) paper weights. Optional hardware Output Expander (550 Standard exit bin StapleSmart II Paper type sheets) or High 5-Bin Mailbox (350 or 550 sheets) Finisher Capacity (500 sheets) (500 sheets) Output stacker (1850 sheets) Paper •...
Page 31: Acronyms
4062-XXX Acronyms BLDC Brushless DC motor Customer Replaceable Unit Customer setup DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Digital multimeter Enhanced Data Out EEPROM Electrically Erasable Programable Read-Only Memory Electrophotographic process EPROM Erasable Programmable Read-Only Memory Electrostatic Discharge Field Replaceable Unit Gigabyte HCIT...
Page 32 4062-XXX 1-10 Service Manual...
Page 33: Diagnostic Information
4062 2. Diagnostic information Start CAUTION: Unplug the power cord from the electrical outlet before you connect or disconnect any cable electronic board or assembly. CAUTION: If the printer is kept on, never touch the conductive parts if not specifically required. The power switch and inlet of the low voltage power supply card (LVPS card) assembly is live even while the power supply is cut off.
Page 34: Confirm The Installation Status
The following is an example of the events that occur during the POR sequence: 1. Turn the machine on. 2. The Lexmark splash screen appears with a progress bar in the center until the code is loaded. 3. The fuser cooling fan turns on.
Page 35: User Attendance Messages
4062 User attendance messages Error code or Error contents Description/Action Possible repair actions message Invalid Refill Change Message is cleared when a Install the proper print Cartridge new print cartridge is installed. cartridge. Defective Cartridge Error code 31 displays when 1.
Page 36 4062 Error code or Error contents Description/Action Possible repair actions message Res Save Off This IR is displayed when the This message displays when Deficient Memory printer lacks sufficient memory the printer lacks sufficient to enable Resource Save. This memory to enable Resource message usually indicates the Save.
Page 37 4062 Error code or Error contents Description/Action Possible repair actions message Insufficient Memory This message displays when The following actions may be the printer memory used to taken: restore the Print and Hold jobs from the disk and found that •...
Page 38 4062 Error code or Error contents Description/Action Possible repair actions message Cartridge Region This IR is displayed when the Install a new toner cartridge Mismatch printer detects that the installed that matches the correct cartridge has a region that regional specification. differs from the below options.
Page 39 4062 Error code or Error contents Description/Action Possible repair actions message Std Network Software This error displays when a The following actions may be Error network port is detected, but taken: the printer cannot establish • Press to clear the communications with it.
Page 40 4062 Error code or Error contents Description/Action Possible repair actions message Standard Parallel Port This error is displayed when The following actions may be Disabled data is sent to the printer taken: across the parallel port, but the • Press to clear the parallel port has been disabled.
Page 41 4062 Error code or Error contents Description/Action Possible repair actions message Incompatible Duplex An incompatible duplex option 1. Turn off and unplug the is installed. printer. 2. Remove the incompatible Remove the incompatible external duplex unit duplex option and press assembly.
Page 42 4062 Error code or Error contents Description/Action Possible repair actions message Defective Disk This error code displays when press to clear the the printer detects a defective message. The disk is marked disk. This error may occur at defective and normal printer power on or during disk format operations continue.
Page 43: Error Code Table 1
4062 Error code table Error code or Error contents Description/Action Possible repair actions message 30.01— Defective print Possible mechanical problem Replace the print cartridge. 30.05 cartridge or smart or modified cartridge for toner chip. refilling. 31.01 Defective print Possible bad installation of 1.
Page 44 4062 Error code or Error contents Description/Action Possible repair actions message 42.XY Printer / toner Toner cartridge’s region code 1. Ensure proper machine cartridge mismatch does not match printer’s region model print cartridge is being where: code used. X=Printer region, 2.
Page 45 4062 Error code or Error contents Description/Action Possible repair actions message 200.08 Sensor (input) early The media reaches the sensor 1. Fan the media and ensure it (input) sooner than the is properly installed. specified time. 2. Go to sensor (input) early jam service check.
Page 46 4062 Error code or Error contents Description/Action Possible repair actions message 200.12 Laser power signal The printhead laser power 1. Remove all media present error signal has failed in media path. 2. Check all connections on the printhead. 3. Check all connections on the system card assembly.
Page 47 4062 Error code or Error contents Description/Action Possible repair actions message 200.16 Main drive motor The main drive motor assembly 1. Remove all media present assembly load error has failed or caused high in media path. mechanical load due to paper 2.
Page 48 4062 Error code or Error contents Description/Action Possible repair actions message 200.33 Sensor (input) early The media reached the sensor 1. Fan the media and ensure it (input) sooner than the is properly installed. specified time. 2. Go to sensor (input) early Wrong config ID causes engine jam service check.
Page 49 4062 Error code or Error contents Description/Action Possible repair actions message 200.58 Sensor (input) The media reached the sensor Go to sensor (input) lingering lingering jam (input) but did not clear it within jam service check. the specified time. Source = Tray 5 “Sensor (input) lingering Tray level = Low jam service check.”...
Page 50 4062 Error code or Error contents Description/Action Possible repair actions message 201.06 Sensor (narrow The expected wide media is Go to sensor (narrow media) media) late jam late reaching the sensor late jam service check. (narrow media) within the Type 1 fuser “Sensor (narrow media) specified time.
Page 51 4062 Error code or Error contents Description/Action Possible repair actions message 201.30 Operator panel door The printer detected that the 1. Remove all media present assembly interlock operator panel door interlock in media path. switch failure switch did not cycle prior to 2.
Page 52 4062 Error code or Error contents Description/Action Possible repair actions message 201.53 Image data did not Printhead write failure 1. Check all connections on the start in time printhead assembly Type 1 fuser 2. Check all connections on the system card assembly. Fuser page count has exceeded life 3.
Page 53 4062 Error code or Error contents Description/Action Possible repair actions message 201.76 Main drive motor The main drive motor assembly 1. Remove all media present assembly load error. has failed or caused high in media path. mechanical load due to paper 2.
Page 54 4062 Error code or Error contents Description/Action Possible repair actions message 201.82 Sensor (fuser output) The media is late reaching the Go to sensor (fuser output) late late jam sensor (fuser output) within the jam service check. specified time. Type 2 fuser “Sensor (fuser output) late jam service check.”...
Page 55 4062 Error code or Error contents Description/Action Possible repair actions message 202.09 Sensor (fuser output) Media reached the sensor Go to sensor (fuser output) lingering jam. (fuser output) but did not clear lingering jam service check. it in the specified time. Type 1 fuser “Sensor (fuser output) lingering jam service check.”...
Page 56 4062 Error code or Error contents Description/Action Possible repair actions message 202.26 Sensor (fuser output) Media reached the sensor Go to sensor (fuser output) lingering jam. (fuser output) but did not clear lingering jam service check. it in the specified time. Destination is “Sensor (fuser output) standard bin.
Page 57 4062 Error code or Error contents Description/Action Possible repair actions message 202.36 Sensor (fuser output) Media reached the sensor Go to sensor (fuser output) lingering jam. (fuser output) but did not clear lingering jam service check. it in the specified time. Destination is “Sensor (fuser output) standard bin.
Page 58 4062 Error code or Error contents Description/Action Possible repair actions message 202.53 Sensor (narrow Media remains on the sensor Go to sensor (narrow media) media) static jam (narrow media) during the static jam service check. warm up sequence. Type 1 fuser “Sensor (narrow media) static jam service check”...
Page 59 4062 Error code or Error contents Description/Action Possible repair actions message 202.63 Sensor (fuser output) Media remains on the sensor 1. Go to sensor (fuser output) static jam (fuser output) and the sensor static jam service check. “Sensor (fuser (narrow media) during the warm up sequence.
Page 60 4062 Error code or Error contents Description/Action Possible repair actions message 202.81 Sensor (fuser output) Media remains on the sensor Go to sensor (fuser output) static jam (fuser output) during the warm static jam service check. up sequence. Type 2 fuser “Sensor (fuser output) static jam service check”...
Page 61 4062 Error code or Error contents Description/Action Possible repair actions message 202.99 Fuser ID chip failure The system does not recognize Replace the fuser unit the ID chip on the fuser unit. assembly. Go to “Fuser unit assembly removal (T650, T652, T654)” on page 4-17, 203.00...
Page 62 4062 Error code or Error contents Description/Action Possible repair actions message 203.10 Redrive motor control The redrive motor does not 1. Remove all media present failure. reach the proper operating in media path. speed at the specified time. 2. Ensure that upper redive Media tray 1 assembly is properly installed.
Page 63 4062 Error code or Error contents Description/Action Possible repair actions message 230.01 Sensor (duplex input) Media reached the sensor Go to sensor (duplex input) lingering jam (duplex input) but did not clear lingering jam service check. it in the specified time. Source = Internal “Sensor (pass through) duplex...
Page 64 4062 Error code or Error contents Description/Action Possible repair actions message 230.10 Internal duplex drive The internal duplex drive motor 1. Remove all media present motor control failure. motor does not reach the in media path. proper operating speed at the 2.
Page 65 4062 Error code or Error contents Description/Action Possible repair actions message 230.20 Internal duplex drive The internal duplex drive motor 1. Remove all media present motor lost encoder is not reporting pulses back to in media path. failure the engine. 2.
Page 66: Service Checks
4062 Error code or Error contents Description/Action Possible repair actions message 234.00 Sensor (duplex exit) Media is late reaching the 1. Remove all media present late jam sensor (duplex exit) within the in media path. specified time. 2. Check media for proper Source = External installation.
Page 67 4062 Error code or Error contents Description/Action Possible repair actions message 237.07 Paper jam around Page may be jammed in 1. Remove all media present external duplex external duplex area. in media path. 2. Check media for proper Source = External installation.
Page 68 4062 Error code or Error contents Description/Action Possible repair actions message 238.04 Sensor (duplex Media remains on the sensor 1. Remove all media present double-feed) static (duplex double-feed) during the in media path. warm up sequence. 2. Replace the external duplex assembly if problem Source = External remains.
Page 69 4062 Error code or Error contents Description/Action Possible repair actions message 239.01 External duplex Mechanical feed error or timing 1. Remove all media present assembly error error. in media path. 2. Check media for proper Source = External installation. duplex 3.
Page 70 4062 Error code or Error contents Description/Action Possible repair actions message 239.04 Input device ready Mechanical feed error or timing 1. Remove all media present response error. error. in media path. 2. Check media for proper Source = External installation. duplex 3.
Page 71 4062 Error code or Error contents Description/Action Possible repair actions message 239.07 Select output device Mechanical feed error or timing 1. Remove all media present error. error. in media path. 2. Check media for proper Source = External installation. duplex 3.
Page 72 4062 Error code or Error contents Description/Action Possible repair actions message 241.01 Pick motor control The pick motor does not reach 1. Remove all media present failure. the proper operating speed at in media path. the specified time. 2. Ensure media tray is not Media tray 1 overfilled.
Page 73 4062 Error code or Error contents Description/Action Possible repair actions message 241.08 Pick motor load error The pick motor has failed or 1. Remove all media present caused high mechanical load in media path. Source = Media tray 1 due to paper jam or bind. 2.
Page 74 4062 Error code or Error contents Description/Action Possible repair actions message 241.16 Sensor (input) late The media is late reaching the Go to sensor (input) late jam sensor (input) within the service check. specified time. Source = Tray 1 “Sensor (input) late jam service check.”...
Page 75 4062 Error code or Error contents Description/Action Possible repair actions message 242.04 Sensor (pass through) The media is late reaching the Go to sensor (pass through) late jam sensor (pass through) within late jam service check. the specified time. Source = Tray 2 “Sensor (pass through) late jam service check”...
Page 76 4062 Error code or Error contents Description/Action Possible repair actions message 242.52 Tray 2 pick motor The Pick motor encoder 1. Check all connections on overrun failure continues to detect pulses after the pick arm assembly. the motor was turned off. 2.
Page 77 4062 Error code or Error contents Description/Action Possible repair actions message 242.49 HCIT tray lift motor The HCIT tray lift motor has 1. Ensure the HCIT media tray stalled failure stalled or has become assembly is properly inserted obstructed. into the machine. Source = Tray 2 2.
Page 78 4062 Error code or Error contents Description/Action Possible repair actions message 242.65 Pick motor load error The pick motor has failed or 1. Remove all media present caused high mechanical load in media path. Source = Media tray 2 due to paper jam or bind. 2.
Page 79 4062 Error code or Error contents Description/Action Possible repair actions message 242.67 Pick motor overspeed The pick motor does not rotate 1. Remove all media present failure at the specified speed. in media path. 2. Ensure media tray is not Source = Media tray 2 overfilled.
Page 80 4062 Error code or Error contents Description/Action Possible repair actions message 243.00 Media tray 3 area jam The media is jammed in the 1. Remove all media present media tray 3 area. in media path. 2. Check media for proper installation.
Page 81 4062 Error code or Error contents Description/Action Possible repair actions message 243.17 Media tray pulled jam A media tray above the source 1. Remove all media present tray was pulled during the in media path. Source = Tray 3 printing process. 2.
Page 82 4062 Error code or Error contents Description/Action Possible repair actions message 243.40 Sensor (pass through) Media reached the sensor Go to sensor (pass through) lingering jam (pass through) within the lingering jam service check. specified time but did not clear Source = Tray 3 “Sensor (pass through) it within the specified time.
Page 83 4062 Error code or Error contents Description/Action Possible repair actions message 243.65 Pick motor load error The pick motor has failed or 1. Remove all media present caused high mechanical load in media path. Source = Media tray 3 due to paper jam or bind. 2.
Page 84 4062 Error code or Error contents Description/Action Possible repair actions message 243.67 Pick motor overspeed The pick motor does not rotate 1. Remove all media present failure at the specified speed. in media path. 2. Ensure media tray is not Source = Media tray 3 overfilled.
Page 85 4062 Error code or Error contents Description/Action Possible repair actions message 244.00 Media tray 4 area jam The media is jammed in the 1. Remove all media present media tray 4 area. in media path. 2. Check media for proper installation.
Page 86 4062 Error code or Error contents Description/Action Possible repair actions message 244.17 Media tray pulled jam A media tray above the source 1. Remove all media present tray was pulled during the in media path. printing process. 2. Close all media trays. 244.18 Pick retry timeout The engine timed out waiting...
Page 87 4062 Error code or Error contents Description/Action Possible repair actions message 244.40 Sensor (pass through) Media reached the sensor Go to sensor (pass through) lingering jam (pass through) within the lingering jam service check. specified time but did not clear Source = Tray 4 “Sensor (pass through) it within the specified time.
Page 88 4062 Error code or Error contents Description/Action Possible repair actions message 244.65 Pick motor load error The pick motor has failed or 1. Remove all media present caused high mechanical load in media path. Source = Media tray 4 due to paper jam or bind. 2.
Page 89 4062 Error code or Error contents Description/Action Possible repair actions message 244.67 Pick motor overspeed The pick motor does not rotate 1. Remove all media present failure at the specified speed. in media path. 2. Ensure media tray is not Source = Media tray 4 overfilled.
Page 90 4062 Error code or Error contents Description/Action Possible repair actions message 245.00 Media tray 5 area jam The media is jammed in the 1. Remove all media present media tray 5 area. in media path. 2. Check media for proper installation.
Page 91 4062 Error code or Error contents Description/Action Possible repair actions message 245.17 Media tray pulled jam A media tray above the source 1. Remove all media present tray was pulled during the in media path. Source = Tray 5 printing process. 2.
Page 92 4062 Error code or Error contents Description/Action Possible repair actions message 245.40 Sensor (pass through) Media reached the sensor Go to sensor (pass through) lingering jam (pass through) within the lingering jam service check. specified time but did not clear Source = Tray 5 “Sensor (pass through) it within the specified time.
Page 93 4062 Error code or Error contents Description/Action Possible repair actions message 245.65 Pick motor load error The pick motor has failed or 1. Remove all media present caused high mechanical load in media path. Source = Media tray 5 due to paper jam or bind. 2.
Page 94 4062 Error code or Error contents Description/Action Possible repair actions message 245.67 Pick motor overspeed The pick motor does not rotate 1. Remove all media present failure at the specified speed. in media path. 2. Ensure media tray is not Source = Media tray 5 overfilled.
Page 95 4062 Error code or Error contents Description/Action Possible repair actions message 250.00 MPF area jam The media is jammed in the Go to sensor (input) service MPF area. check. Source = MPF “Sensor (input) service check” on page 2-117. 250.03 Sensor (input) late The media is late reaching the Go to sensor (input) late jam...
Page 96 4062 Error code or Error contents Description/Action Possible repair actions message 260.01 Envelope feeder Mechanical feed error or timing 1. Remove the envelope assembly error error. feeder. 2. Remove all media present in media path. 3. Check media for proper installation.
Page 97 4062 Error code or Error contents Description/Action Possible repair actions message 260.06 Sensor (envelope The media is late reaching the 1. Remove the envelope feeder pass through) sensor (envelope feeder pass feeder. late jam through) within the specified 2. Remove all media present time.
Page 98 4062 Error code or Error contents Description/Action Possible repair actions message 260.15 Sensor (input) late The media is late reaching the Go to sensor (input) late jam sensor (input) within the service check. specified time. Source = Envelope “Sensor (input) late jam feeder service check.”...
Page 99 4062 Error code or Error contents Description/Action Possible repair actions message 27x.15 Sensor (output pass Media remains on the sensor “Sensor (output pass through) static jam (output pass through) during through) static jam service x = bin check” on page 2-143.
Page 100 4062 Error code or Error contents Description/Action Possible repair actions message 27x.51 Right tamper does not The sensor (right tamper HP) 1. Check all the connections on leave home position does not detect that the tamper the output option controller x = bin failure has moved from home position.
Page 101 4062 Error code or Error contents Description/Action Possible repair actions message 28x.26 Timer 0 overflow (1ms A software failure has occurred 1. Turn the machine off/on. timer did not get with the output option. x = bin 2. Replace the output option if serviced for an entire number problem remains.
Page 102 4062 Error code or Error contents Description/Action Possible repair actions message 28x.35 Sensor (self priming) The sensor (self priming) within 1. Check all the connections on late failure the stapler assembly does not the output option controller x = bin detect a ready staple in the card and the stapler assembly.
Page 103 4062 Error code or Error contents Description/Action Possible repair actions message 28x.38 Staple ready home The sensor (self priming) within 1. Check all the connections on position jam the stapler assembly does not the controller card and the x = bin detect a ready staple in the stapler assembly.
Page 104 4062 Error code or Error contents Description/Action Possible repair actions message 28x.40 Left tamper does not The sensor (left tamper HP) 1. Check all the connections on leave home position does not detect that the tamper the output option controller x = bin failure has moved from home position.
Page 105 4062 Error code or Error contents Description/Action Possible repair actions message 28x.42 Right tamper does not The sensor (right tamper HP) 1. Check all the connections on leave home position does not detect that the tamper the output option controller x = bin failure has moved from home position.
Page 106 4062 Error code or Error contents Description/Action Possible repair actions message 28x.46 Paddle home position The sensor (paddle HP) does 1. Check all the connections on not detect that the paddle is the output option controller x = bin operating. card.
Page 107 4062 Error code or Error contents Description/Action Possible repair actions message 28x.50 Left tamper home The left tamper home position 1. Check all the connections on position jam is not detected by the sensor the output option controller x = bin (left tamper HP) card.
Page 108 4062 Error code or Error contents Description/Action Possible repair actions message 28x.54 Eject motor encoder The eject motor encoder 1. Check all the connections on not detected detection is lost during normal the output option controller x = bin operation. card.
Page 109 4062 Error code or Error contents Description/Action Possible repair actions message 28x.61 DMID command is not A software failure has occurred 1. Turn the machine off/on. received for 500ms with the output option. x = bin 2. Replace the output option if after main motor runs number problem remains.
Page 110 4062 Error code or Error contents Description/Action Possible repair actions message 28x.68 Staple ready home The sensor (self priming) within 1. Check all the connections on position jam the stapler assembly does not the controller card and the x = bin detect a ready staple prior to a stapler assembly.
Page 111 4062 Error code or Error contents Description/Action Possible repair actions message 28x.70 Stapler mechanism The sensor (home signal) 1. Check all the connections on not in home position within the stapler assembly the controller card and the x = bin failure detected that the stapler stapler assembly.
Page 112 4062 Error code or Error contents Description/Action Possible repair actions message 901xx System software error Code detected unusual event 1. POR the machine and print or timing. a simple test page to determine if the problem is firmware related, or if the customer is sending a corrupted print job.
Page 113 4062 Error code or Error contents Description/Action Possible repair actions message 905.xx Interface violation by Code detected unusual event 1. POR the machine and print paperport device or timing. a simple test page to determine if the problem is system software related, or if the customer is sending a corrupted print job.
Page 114 4062 Error code or Error contents Description/Action Possible repair actions message 913.00 Pick arm motor The pick arm motor does not 1. Check all the connections on overspeed failure rotate at the specified speed. the pick arm assembly. 2. Check all the connections on the system card assembly.
Page 115 4062 Error code or Error contents Description/Action Possible repair actions message 916.00 Internal duplex drive The duplex drive motor 1. Check all the connections on motor encoder not encoder detection is lost during the duplex drive motor detected failure normal operation assembly.
Page 116 4062 Error code or Error contents Description/Action Possible repair actions message 920.02 Fuser warm-up failure The fuser hot roll fell to far 1. Turn the machine off/on below desired temperature and ensure the fuser unit Fuser type = 1 while in standby control. assembly is properly installed.
Page 117 4062 Error code or Error contents Description/Action Possible repair actions message 920.06 Fuser warm-up failure The fuser hot roll temperature 1. Turn the machine off/on does not increase while the and ensure the fuser unit Fuser type = 1 lamp is turned on. assembly is properly installed.
Page 118 4062 Error code or Error contents Description/Action Possible repair actions message 920.26 Fuser warm-up failure The fuser hot roll took too long 1. Turn the machine off/on to heat up after transitioning to and ensure the fuser unit Fuser type = 2 new enhanced mode within assembly is properly standby control only.
Page 119 4062 Error code or Error contents Description/Action Possible repair actions message 920.31 Fuser warm-up failure The fuser hot roll temperature 1. Turn the machine off/on does not increase while the and ensure the fuser unit Fuser type = 2 lamp is turned on. assembly is properly installed.
Page 120 4062 Error code or Error contents Description/Action Possible repair actions message 920.52 Fuser warm-up failure The fuser hot roll fell to far Replace the fuser unit below desired temperature assembly if problem remains. Fuser type = 1 “Fuser unit assembly while in standby control.
Page 121 4062 Error code or Error contents Description/Action Possible repair actions message 920.81 Fuser warm-up failure The fuser hot roll temperature Replace the fuser unit does not increase while the assembly if problem remains. Fuser type = 2 “Fuser unit assembly lamp is turned on.
Page 122 4062 Error code or Error contents Description/Action Possible repair actions message 922.03 Fuser warm-up failure The fuser hot roll does reach 1. Turn the machine off/on the “final lamp detection” and ensure the fuser unit Fuser type = 1 parameter but not in the assembly is properly specified time.
Page 123 4062 Error code or Error contents Description/Action Possible repair actions message 922.06 Fuser warm-up failure The fuser hot roll did not reach 1. Turn the machine off/on operating temperature within and ensure the fuser unit Fuser type = 1 new enhanced control. assembly is properly installed.
Page 124 4062 Error code or Error contents Description/Action Possible repair actions message 922.27 Fuser warm-up failure The fuser hot roll does not 1. Turn the machine off/on reach the “beginning lamp and ensure the fuser unit Fuser type = 2 detection” parameter in the assembly is properly specified time.
Page 125 4062 Error code or Error contents Description/Action Possible repair actions message 922.29 Fuser warm-up failure The fuser hot roll has timed out 1. Turn the machine off/on and not reached “final lamp and ensure the fuser unit Fuser type = 2 detection”...
Page 126 4062 Error code or Error contents Description/Action Possible repair actions message 922.32 Fuser warm-up failure The fuser hot roll does not 1. Turn the machine off/on reach operating temperature and ensure the fuser unit Fuser type = 2 after increasing interpage gap. assembly is properly installed.
Page 127 4062 Error code or Error contents Description/Action Possible repair actions message 922.75 Fuser warm-up failure The fuser hot roll failed to Replace the fuser unit reach target temperature. assembly if problem remains. Fuser type = 2 “Fuser unit assembly Go to removal (T650, T652, T654)”...
Page 128 4062 Error code or Error contents Description/Action Possible repair actions message 923.25 Fuser over The fuser hot roll has 1. Turn the machine off/on temperature failure. exceeded the proper operating and ensure the fuser unit temperature. assembly is properly Fuser type = 2 installed.
Page 129 4062 Error code or Error contents Description/Action Possible repair actions message 924.25 Open fuser thermistor The fuser thermistor might be Replace the fuser unit check faulty. assembly if problem remains. “Fuser unit assembly Go to Fuser type = 2 removal (T650, T652, T654)” on page 4-17.
Page 130 4062 Error code or Error contents Description/Action Possible repair actions message 925.01 Incorrect fuser or The machine detected a 115 V 1. Turn the machine off/on fuser lamp detected. lamp in a 220 V machine. The and ensure the fuser unit fuser lamp has an excessive assembly is properly Fuser type = 1...
Page 131 4062 Error code or Error contents Description/Action Possible repair actions message 925.27 Incorrect fuser or The machine detected a 115 V 1. Turn the machine off/on fuser lamp detected. lamp in a 220 V machine. The and ensure the fuser unit fuser lamp has an excessive assembly is properly Fuser type = 2...
Page 132 4062 Error code or Error contents Description/Action Possible repair actions message 925.75 Incorrect fuser or The machine detected a 115 V 1. Turn the machine off/on fuser lamp detected. lamp in a 220 V machine. The and ensure the fuser unit fuser lamp has an excessive assembly is properly Fuser type = 2...
Page 133 4062 Error code or Error contents Description/Action Possible repair actions message 927.03 Main cooling fan The main cooling fan does not 4. Check for cooling fan control failure. reach the specified speed. obstructions. 5. Check the connections on the main cooling fan. 6.
Page 134 4062 Error code or Error contents Description/Action Possible repair actions message 927.13 Print cartridge cooling The Print cartridge cooling fan 1. Check for cooling fan fan control failure. does not reach the specified obstructions. speed. 2. Check the connections on the main cooling fan.
Page 135 4062 Error code or Error contents Description/Action Possible repair actions message 929.02 Sensor (toner empty) The sensor (toner empty) does 1. Check the toner pulse sensor failure. not provide toner level wheel on the print cartridge feedback or the print cartridge for damage and replace the is damaged.
Page 136 4062 Error code or Error contents Description/Action Possible repair actions message 935.00 Polygon mirror motor The signals driving the polygon 1. Check all connections on control failure. mirror motor may have been the printhead assembly. corrupted, or the cable may be 2.
Page 137 4062 Error code or Error contents Description/Action Possible repair actions message 936.20 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on Failed to stop within the main drive motor timeout.
Page 138 4062 Error code or Error contents Description/Action Possible repair actions message 936.31 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on No lock detected at the main drive motor motor start for motor...
Page 139 4062 Error code or Error contents Description/Action Possible repair actions message 936.90 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on Stall detected during the main drive motor speed control.
Page 140 4062 Error code or Error contents Description/Action Possible repair actions message 937.41 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on Over speed detected the main drive motor during speed control.
Page 141 4062 Error code or Error contents Description/Action Possible repair actions message 937.70 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on Loss of lock detected the main drive motor by higher-level code.
Page 142 4062 Error code or Error contents Description/Action Possible repair actions message 937.81 Main drive motor The main drive motor assembly 1. Check all connections on assembly failure may be faulty or has failed. the system card assembly. 2. Check all connections on Driver over temp the main drive motor detection.
Page 143 4062 Error code or Error contents Description/Action Possible repair actions message 950.xx NVRAM mismatch Mismatch between system Warning: When replacing any failure card EEPROM and operator of the following components: panel mirror. • Operator panel assembly ".xx" codes: • System card assembly Only replace one component at 00-29: mismatch between a time.
Page 144 4062 Error code or Error contents Description/Action Possible repair actions message 955.xx NVRAM failure Replace the system card The Code ROM or NAND flash assembly. failed the Cyclic Redundancy Check (CRC) check or the Go to “System card NAND experienced an assembly removal (T650, uncorrectible multi-bit failure.
Page 145 4062 Error code or Error contents Description/Action Possible repair actions message 975.xx The system detected an Replace the system card Network Error unrecognizable network port assembly. Go to “System card assembly removal (T650, T652, T654)” on page 4-71. 976.xx Network Error The system detected an Replace the system card unrecoverable software error in...
Page 146 4062 Error code or Error contents Description/Action Possible repair actions message 982.04 Output option An output option was not fully 1. Turn the main power off. communication seated onto the printer or has 2. Remove and reinstall the failure. been removed while the main output option.
Page 147 4062 Error code or Error contents Description/Action Possible repair actions message 990.03 Paperport failure Invalid paperport protocol Replace the system card assembly. Go to “System card assembly removal (T650, T652, T654)” on page 4-71. 990.04 Paperport failure Unsupported paperport Replace the system card command assembly.
Page 148 4062 Error code or Error contents Description/Action Possible repair actions message 990.51 HCIT tray lift motor The HCIT tray lift motor does 1. Check for obstruction in the PWM underflow error not operate at the specified HCIT tray lift area. speed reported by tray x 2.
Page 149: Sensor (Input) Service Check
4062 Service checks Sensor (input) service check Step Check Check the sensor (input) for damage. Go to step 2. Replace the sensor (input). Is the above component free from damage? Go to “Sensor (input) removal (T650, T652, T654)” on page 4-61.
Page 150: Sensor (Narrow Media) Service Check
4062 Sensor (narrow media) service check Step Check Check the sensor (narrow media) for damage. Go to step 2. Replace the fuser unit assembly. Is the above component free from damage? Go to “Fuser unit assembly removal (T650, T652, T654)” on page 4-17.
Page 151: Sensor (Duplex Input) Service Check (External Duplex Only)
4062 Step Check Check the above sensor for proper connection. Replace the Replace the duplex input connection. Is the above sensor connected properly? sensor assembly (internal duplex only). Go to “Duplex input sensor assembly removal (T652, T654)” on page 4-11 or replace the external duplex unit assembly...
Page 152: Sensor (Pass Through) Service Check
4062 Sensor (pass through) service check Step Check 1. Enter the diagnostic mode The sensor is Go to step 2. working properly 2. Select Input tray tests 3. Select Sensor test 4. Select the appropriate tray number 5. Observe the line item “pass through” for the appropriate media tray Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or...
Page 153 4062 Step Check Check the media size setup and tray guides for all media Go to step 2. Replace the trays. media, or change the media size Does the media size, in use, match the size set for all media setup.
Page 154 4062 Step Check Perform a print test and check the duplex drive motor Go to step 17. Replace the assembly for proper operation. duplex drive motor assembly. Does the above component operate properly? Go to “Duplex drive motor assembly removal (T652, T654)”...
Page 155: Sensor (Input) Lingering Jam Service Check
4062 Step Check Perform a print test and check the pick arm assembly. Go to step 21. Replace the pick arm assembly. Go Is the media properly picked and advanced out of the media “Pick arm tray? assembly removal (T650, T652, T654)”...
Page 156: Sensor (Input) Early Jam Service Check
4062 Step Check Check the above sensor for proper connection. Replace the Replace the sensor (input). connection. Is the above sensor connected properly? Go to “Sensor (input) removal (T650, T652, T654)” on page 4-61. Check the sensor (fuser output) for proper operation. Go to step 8.
Page 157 4062 Step Check Check the MPF pick roll assembly. Go to step 3. Clean or replace the MPF pick roll Is the above component free of excess wear and assembly. contamination? Go to “MPF pick roll assembly removal (T650, T652, T654)” on page 4-32.
Page 158: Sensor (Input) Static Jam Service Check
4062 Sensor (input) static jam service check Use this procedure for the following jams: • 200.13 Step Check Check the media path for partially fed or jammed media. Go to step 2. Remove any pre- staged or jammed Is the media path free from partially fed or jammed media? media.
Page 159 4062 Step Check Check the sensor (fuser output) for proper operation. Go to step 7. Go to step 6. 1. Enter the diagnostic mode 2. Select Base sensor tests 3. Observe the line item “output” Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked.
Page 160: Sensor (Fuser Output) Lingering Jam Service Check
4062 Sensor (fuser output) lingering jam service check. Use this procedure for the following jams: • 202.01 • 202.02 • 202.07 • 202.10 • 202.11 • 202.12 • 202.26 • 202.27 • 202.32 • 202.34 • 202.35 • 202.36 • 202.37 •...
Page 161: Sensor (Fuser Output) Static Jam Service Check
4062 Step Check Perform a print test and check the redrive motor assembly Go to step 9. Replace the for proper operation. redrive motor assembly. Does the above component operate properly? Go to “Redrive motor assembly removal (T652, T654)” on page 4-56.
Page 162: Sensor (Narrow Media) Late Jam Service Check
4062 Sensor (narrow media) late jam service check. Use this procedure for the following jams: • 201.04 • 201.06 • 201.29 • 201.31 • 201.54 • 201.56 • 201.79 • 201.81 Step Check Check the media size setup and tray guides for all media Go to step 2.
Page 163: Sensor (Narrow Media) Static Jam Service Check
4062 Step Check Perform a print test and check the main motor assembly. Go to step 10. Replace the main drive motor Is the media properly transported and able to reach the assembly. sensor (fuser output)? Go to “Main drive motor assembly removal (T650, T652, T654)”...
Page 164: Sensor (Duplex Input) Late Jam Service Check
4062 Sensor (duplex input) late jam service check. Use this procedure for the following jams: • 230.02 • 231.00 Step Check Check the door assembly, rear. Go to step 2. Open then properly close the Is the above component properly closed? door assembly, rear.
Page 165: Sensor (Duplex Input) Lingering Jam Service Check
4062 Step Check Check the above sensor for proper connection. Replace the Replace the Sensor (duplex connection. Is the above sensor connected properly? input). Go to “Sensor (duplex input) removal (T652, T654)” on page 4-59. Perform a print test and check the duplex drive motor Go to step 14.
Page 166 4062 Step Check Check the duplex guide assembly, front for damage. Go to step 4. Replace the duplex guide Is the above component free from damage? assembly, front. Go to “Duplex guide assembly, front removal (T652, T654)” on page 4-11. Check the sensor (duplex input) for proper operation.
Page 167: Sensor (Duplex Input) Static Jam Service Check
4062 Sensor (duplex input) static jam service check. Use this procedure for the following jams: • 230.13 • 238.01 • 238.03 • 238.05 • 238.07 Step Check Check media origination. Go to step 2 Go to step 5 Did the media originate from the internal duplex? Check the media path for partially fed or jammed media.
Page 168: Sensor (Pass Through) Late Jam Service Check
4062 Sensor (pass through) late jam service check Use this procedure for the following jams: • 242.02 • 242.03 • 242.04 • 242.05 • 242.06 • 242.10 • 242.16 • 242.37 • 243.02 • 243.03 • 243.04 • 243.04 • 243.05 •...
Page 169 4062 Step Check Check the above sensor for proper connection. Replace the Replace the appropriate connection. Is the above sensor connected properly? Sensor (pass through). Go to “Sensor (pass through) with cable removal” on page 4-105. Perform a print test and check the pick arm assembly for Go to step 8.
Page 170 4062 Step Check Check the appropriate media tray sensor (pass through) for Go to step 5. Go to step 4. proper operation. 1. Enter the diagnostic mode 2. Select Input tray tests 3. Sensor test 4. Select the appropriate tray number 3.
Page 171 4062 Step Check Check the appropriate media tray sensor (pass through) for Go to step 5. Go to step 4. proper operation. 1. Enter the diagnostic mode 2. Select Input tray tests 3. Sensor test 4. Select the appropriate tray number 3.
Page 172 4062 Step Check Perform a print test using the output option. Replace the output Problem solved. option. Does the error continue? Sensor (stapler pass through) lingering jam service check Step Check Check the output option for proper installation. Go to step 2. Remove then reinstall the output Is the above component properly installed?
Page 173 4062 Step Check Check the sensor (stapler pass through) for proper Go to step 4. Go to step 3. operation. 1. Enter the diagnostic mode 2. Select Finisher sensor test 3. Select Sensor test 4. Select pass & media 5. Observe the line item “passthru” Does the display on the operator panel, change every time the sensing area of the above sensor is interrupted or blocked.
Page 174 4062 Step Check Check the above sensor for proper connection. Replace the Replace the sensor (output connection. Is the above sensor connected properly? pass through). Go to “High capacity stacker sensor (pass through) removal” on page 4-132. Go to “5-bin mailbox sensor (pass through) removal”...
Page 175 4062 Step Check Check the above sensor for proper connection. Replace the Replace the sensor (output connection. Is the above sensor connected properly? pass through). Go to “High capacity stacker sensor (pass through) removal” on page 4-132. Go to “5-bin mailbox sensor (pass through) removal”...
Page 176 4062 Step Check Check the above sensor for proper connection. Replace the Replace the sensor (output connection. Is the above sensor connected properly? pass through). Go to “High capacity stacker sensor (pass through) removal” on page 4-132. Go to “5-bin mailbox sensor (pass through) removal”...
Page 177 4062 Sensor (mailbox empty) lingering jam service check Step Check Check the output option for proper installation. Go to step 2. Remove then reinstall the output Is the above component properly installed? option Check for obstructions in the media path between the Go to step 3.
Page 178 4062 Step Check Check the above sensor for proper connection. Replace the Replace the sensor (mailbox connection. Is the above sensor connected properly? empty). Go to “5-bin mailbox sensor (media bin empty) removal” on page 4-134. Perform a print test using the output option. Replace the output Problem solved.
Page 179 4062 Check the system card assembly. Go to step 4. Contact next level of support. Was the system card assembly recently replaced? Replace the current operator panel assembly with the Go to step 5. Problem solved. original operator panel assembly. Does the error remain? Replace the current system card assembly with the original Go to step 6.
Page 180 4062 Image quality trouble Printer Related Troubleshooting Note: First, get a printout as a base, and follow the symptom table to identify the possible failing FRU’s. Image quality symptoms • Faint print (low contrast)– “Faint print (Low contrast)” on page 2-149.
Page 181 4062 Image Quality Faint print (Low contrast) Leading edge Trailing edge Before starting, check the media route for foreign objects, such as staples, clips, and scraps, in the media path. Step Check Check the media condition. Problem solved. Go to step 2. Load new, dry, recommended media, and perform a print test.
Page 182 4062 Step Check Check the printhead assembly for proper connection. Replace the Replace the printhead connections. Is the above component properly connected? assembly. Go to “Printhead assembly removal (T650)” on page 4-48 “Printhead assembly removal (T652, T654)” on page 4-49. Perform a print test.
Page 183 4062 Blank print (no print) Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the media condition. Problem solved. Go to step 2. Load new, dry, recommended media, and perform a print test. Is the image density normal? Check the toner level.
Page 184 4062 Step Check Check the laser beam route. Go to step 8. Remove debris or clean the Check for debris between the printhead assembly and printhead the PC drum. assembly window. Is the laser beam route free of debris and the glass window, in the printhead assembly, free of contamination? Check the HVPS card assembly for proper connection.
Page 185 4062 Solid black Check the media path for foreign objects such as staples, clips, scraps of media. Step Check Check the charge roll assembly for proper installation. Go to step 2. Replace the charge roll Is the above component properly installed? assembly.
Page 186 4062 Vertical lines and bands (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Is the media transfer route and the media path clear of Go to step 3.
Page 187 4062 Step Check Perform a print test. Contact next Problem solved. highest level of Does the problem remain? tech support. Horizontal white stripes or bands (side to side direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved.
Page 188 4062 Step Check Perform a print test. Contact next Problem solved. highest level of Does the problem remain? tech support. Vertical stripes (process direction) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media.
Page 189 4062 Step Check Check the heat roll and pressure roll. Replace the Go to step 7. fuser unit Remove the fuser unit assembly. assembly. CAUTION: : Allow Go to “Fuser the fuser unit unit assembly assembly to cool removal (T650, T652, T654)”...
Page 190 4062 Step Check Check the charge roll assembly for contamination and Go to step 5. Replace the wear. charge roll assembly. Is the above component free of excess wear and contamination? Go to “Charge roll assembly removal (T650, T652, T654)” on page 4-7.
Page 191 4062 Partial lack Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the problem remain? Check the toner level. Go to step 3. Replace the print cartridge.
Page 192 4062 Step Check Perform a print test. Contact next Problem solved. highest level of Does the problem remain? tech support. Spots Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image.
Page 193 4062 Step Check Check the heat roll and pressure roll. Replace the Go to step 7 fuser unit Remove the fuser unit assembly. assembly. CAUTION: : Allow Go to “Fuser the fuser unit unit assembly assembly to cool removal (T650, T652, T654)”...
Page 194 4062 After image Leading edge Trailing edge The ghost appears on the media which, may be the image from the previous page or part of the page currently printing. Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media.
Page 195 4062 Background (fog) Leading edge Trailing edge Step Check Check the media condition. Go to step 2. Problem solved. Load new, dry, recommended media. Re-print the defective image. Does the error continue? Check the media transfer route. Go to step 3. Remove debris Is the media path free of contamination or debris.
Page 196 4062 Step Check Perform a print test. Contact next Problem solved. highest level of Does the problem remain? tech support. Skew Leading edge Trailing edge The printed image is not paralleled with both sides of the media. Step Check Check printer installation placement. Go to step 2.
Page 197 4062 Step Check Check the aligner assembly for proper adjustment. Go to step 6. Replace the aligner Go to “Alignment assembly adjustment” on assembly. page 4-4. Go to Does the problem remain? “Alignment assembly removal (T650, T652, T654)” on page 4-27.
Page 198 4062 Step Check Check the transfer roll assembly for contamination and Go to step 5. Replace the wear. transfer roll assembly. Is the above component free of excess wear and contamination? Go to “Transfer roll assembly removal (T650, T652, T654)” on page 4-74.
Page 199 4062 No fuse Leading edge Trailing edge Step Check Check the fuser unit assembly installation. Go to step 2. Reinstall the fuser unit Is the fuser unit assembly properly installed? assembly. Check the media condition. Go to step 3. Problem solved. Load new, dry, recommended media.
Page 200 Have the network administrator verify that the device is using the correct SSID, and wireless security protocols. For more network troubleshooting information, consult the Lexmark Network Setup Guide. Step...
Page 201 4062 Step Questions / actions Try using a different ethernet cable. Problem resolved Go to step 14. Did this remedy the situation? Have the network administrator check the Replace the controller Contact the network network drop for activity. board. Go to “Controller administrator.
Page 202 4062 2-170 Service Manual...
Page 203 4062-XXX 3. Diagnostic aids This chapter explains the tests and procedures to identify printer failures and verify repairs have corrected the problem. Understanding the printer control panel Item Description Display Shows messages and pictures that communicate the status of the printer. Navigation buttons Press the up or down arrow buttons to scroll through menus or menu items, or to increase or decrease a value when entering numbers.
Page 204 4062-XXX Item Description Stop Stops all printer activity. A list of options is offered once Stopped appears on the display. Menu Opens the menu index Note: The menus are available only when the printer is in the Ready state. Insert a flash drive into the front of the printer to print saved files. Note: Only the front USB port supports flash drives.
Page 205 4062-XXX Diagnostics mode Entering Diagnostics mode 1. Turn the printer off. 1. Press and hold 2. Turn the printer on. 3. Release the buttons after 10 seconds. Available tests The tests display on the operator panel in the order shown: REGISTRATION “REGISTRATION”...
Page 206 4062-XXX DUPLEX TESTS (if installed) Quick Test “Quick Test (duplex)” on page 3-9 Top Margin “Top Margin (duplex)” on page 3-10 Sensor Test “Sensor Test (duplex)” on page 3-10 Motor Test “Motor Test (duplex)” on page 3-10 Duplex Feed 1 “Duplex Feed 1”...
Page 207 4062-XXX EP SETUP EP Defaults “EP Defaults” on page 3-18 Fuser Temp “Fuser Temperature (Fuser Temp)” on page 3-18 Fuser Page Count “Fuser Page Count” on page 3-18 Warm Up Time “Warm Up Time” on page 3-18 Transfer “Transfer” on page 3-18 Print Contrast “Print Contrast”...
Page 208 4062-XXX The print registration range is: Variable Description Value Direction of change Top margin -25 to +25 Each increment causes A positive change moves the image approximately 4 pels shift (at 600 down the page and increases the dpi). top margin. A negative change moves the image up and decreases the top margin.
Page 209 4062-XXX PRINT TESTS Input source tests The purpose of the diagnostic Print Tests is to verify that the printer can print on media from each of the installed input options. The contents of the Print Test Page varies depending on the media installed in the selected input source.
Page 210 4062-XXX NVRAM. The CONFIG MENU print quality test pages are identical to the DIAGNOSTIC print quality test pages with the exception of the first page. The first print quality test page from the CONFIG MENU does not include EP or Printer setup. HARDWARE TESTS Select the following Hardware Tests from this menu: •...
Page 211 4062-XXX USB HS Test Mode 1. Select USB HS Test Mode from HARDWARE TESTS. 2. Press until the appears next to the Port to be tested, and then press 3. Select the desired Test, and then press Port Test Appears on the display Port 0 Test J USB High Speed...
Page 212 4062-XXX The single test stops automatically when a single duplex sheet is printed, and the continuous test continues until you press Stop Top Margin (duplex) This setting controls the offset between the first scan line on the front of the duplex page and the first scan line on the back of the page.
Page 213 4062-XXX 3. Press Back or Stop to exit the test. Duplex Feed 1 This test feeds a blank sheet of paper to the duplex paper stop position 1. This test can be run using any of the supported paper sizes. To run the Duplex Feed 1 Test: 1.
Page 214 4062-XXX This test is used to determine if the input tray sensors are working correctly. To run the Input Tray Sensor Test: 1. Select the Sensor Test from INPUT TRAY TESTS. 2. Select the input source from the sources displayed on the Sensor Test menu. All installed sources are listed.
Page 215 4062-XXX Feed To All Bins This test can be used to verify that the printer can feed media to the standard bin or any installed output options. No information will be printed on the test pages, as the printhead is not engaged during the feed test. The media feeds from the default paper source.
Page 216 4062-XXX This test is used to determine whether or not the output bin sensor is working correctly for the output expander, if installed. 1. Select Sensor Test from OUTPUT BIN TESTS. 2. Select Output Bin x (x=number of the output option to be tested) from Sensor Tests. The following screen is displayed: Output Bin x passThru=Open...
Page 217 4062-XXX To run the Diverter Test, select Diverter Test from the OUTPUT BIN TESTS. The test runs once and stops. StapleSmart FINISHER TESTS Staple Test This test verifies the staple mechanism by sending eight sheets of media from the printers default paper source and stapling the sheets.
Page 218 4062-XXX BASE SENSOR TEST This test is used to determine if the sensors located inside the printer are working correctly. To run the Base Sensor Test: 1. Select BASE SENSOR TEST from the DIAGNOSTICS menu. The following sensors are listed: •...
Page 219 4062-XXX Engine Setting 1 through 16 WARNING: Do not change these settings unless requested to do so by your next level of support. Model Name The model name can only be viewed and cannot be changed. Configuration ID The two configuration IDs are used to communicate information about certain areas of the printer that cannot be determined using hardware sensors.
Page 220 4062-XXX EP SETUP EP Defaults This setting is used to restore each printer setting listed in EP SETUP to its factory default value. Sometimes this is used to help correct print quality problems. To restore EP Defaults: 1. Select EP Defaults from EP SETUP. 2.
Page 221 4062-XXX The Auto Dark Adj can be adjusted to Enable or Disable. The default setting is Enable. REPORTS Prints a Menu Settings Page. To print the Menu Settings Page: 1. Select Menu Settings Page from REPORTS. 2. Press Back to return to DIAGNOSTICS. EVENT LOG Display Log The event log provides a history of printer errors.
Page 222 4062-XXX • Additional debug information in some cases The printed event log can be faxed to Lexmark or your next level of support for verification or diagnosis. To print the event log: Select Print Log from EVENT LOG. Press Back to return to EVENT LOG.
Page 223 4062-XXX Configuration menu (CONFIG MENU) Entering Configuration Menu 1. Turn off the printer. 2. Press and hold 3. Turn on the printer. 4. Release the buttons after ten seconds. The message CONFIG MENU displays on the top line of the operator panel. Available menus Maint Cnt Value “Maintenance page count (Maint Cnt Value)”...
Page 224 4062-XXX Press Back to return to the main Configuration menu. Maintenance page counter reset (Reset Cnt) After scheduled maintenance, the servicer needs to reset the page counter. To reset the maintenance page count to zero: Select Reset Cnt from the Configuration menu, and then select Reset. When the reset operation is complete, the display returns to the Configuration menu.
Page 225 4062-XXX SIZE SENSING This setting controls whether the printer automatically registers the size of paper installed in an input source with size sensing. Paper source Size sensing ✓ Tray 1 (integrated) Multipurpose feeder ✓ 250-sheet drawer ✓ 550-sheet drawer ✓ High Capacity Feeder Envelope feeder When the setting is Auto, every input option equipped with size sensing hardware automatically registers what...
Page 226 • Settings in the NETWORK/PORTS MENU group. LES Applications This disables all installed Lexmark Embedded Solution applications. Settings are Disable and Enable. The default is Enable. Energy Conserve This menu controls what values appear on the Power Saver menu. If Off is selected in Energy Conserve menu, then Disabled appears in the Power Saver menu and Power Saver can be turned off.
Page 227 4062-XXX Exit Config Menu Press to exit the CONFIG MENU. The message Resetting the Printer displays, and the printer performs a POR and restarts in normal mode. 3-25 Diagnostic aids...
Page 228 4062-XXX Printer overview CAUTION: Do not set up this product or make any electrical or cabling connections, such as the power cord or options and features, during a lightning storm. Basic model The following illustration shows the basic printer model. Feature Paper Capacity Standard exit bin...
Page 229 4062-XXX Printer theory Model T650 with duplex, paper path, rolls, and sensors Fuser heat roll Sensor (standard bin exit) Fuser pressure roll Transfer roll Sensor (input) Sensor (fuser output) Sensor Sensor (MPF media empty) (duplex input) Sensor (narrow media) Pick arm assembly Pick roll assembly Sensor (duplex exit)
Page 230 4062-XXX Models T652 and T654 paper path rolls and sensors Fuser heat roll Sensor Fuser pressure roll (standard bin exit) Transfer roll Sensor (input) Sensor (fuser output) Sensor (mpf media empty) Sensor (narrow media) Pick arm assembly Pick roll assembly Sensor (duplex input) Sensor...
Page 231 4062-XXX Side guide The media tray assembly is designed so it can adapt to the media width in the media feed direction by moving the side guide to the left or right. Wear strips The wear strips are designed to provide a fixed resistance to ensure that a single piece of paper is properly fed out of the media tray.
Page 232 4062-XXX Detection of media size The media size set for the media tray assembly is transmitted to the switch (media size) by moving these guides. The media size is detected by the on/off information of these switches. Pick arm assembly Sensor (media empty) Media out actuator Sensor (media low)
Page 233 4062-XXX increasing the normal force and drive force until the bending strength of the paper is overcome and the paper bends and moves up the wear strip. Switch (media size) This switch (media size) sets the size of media supplied from each media tray assembly. A signal indicating the media size is transmitted as a voltage to the printer system card assembly.
Page 234 4062-XXX Sensor (media low) This sensor detects by the actuator position whether media in the media tray assembly is low. When the flag of the actuator blocks, then unblocks the sensing area of the sensor (media low), the media level is determined to be low.
Page 235 4062-XXX Sensor (MPF media empty) The sensor (MPF media out) detects whether media is present on the MPF. Supported paper sizes, types, and weights The following tables provide information on standard and optional paper sources and the types of paper they support.
Page 236 4062-XXX 250-or 550-sheet Optional Multipurpose Paper size Dimensions trays (standard 2000-sheet Duplex unit feeder or optional tray 10 Envelope 105 x 241 mm (4.1 x 9.5 in.) DL Envelope 110 x 220 mm (4.3 x 8.7 in) Other Envelope 98 x 162 mm (3.9 x 6.4 in.) to 176 x 250 mm (6.9 x 9.8 in.)
Page 237 4062-XXX Registration Aligner assembly Sensor (input) Sensor (input) The sensor (input) is located just before the print cartridge and can detect whether media exists in the input path. Aligner assembly The aligner assembly is used to feed the media through the input path and to ensure that media is fed through the machine in a perfectly straight manner and not in a skewed manner.
Page 238 4062-XXX Transfer Transfer roll Transfer roll assembly The transfer roll assembly applies charge to the rear surface of the media when the media passes between the transfer roll assembly and photo conductor (drum). Thus, the toner image is transferred from the photo conductor (drum) surface to the media surface.
Page 239 4062-XXX Polygon printhead assembly The printhead scans the photo conductor drum surface with a laser beam. It consists of four components: laser diode (LD) card assembly, printhead motor, polygon mirror, and the start of scan card assembly. Polygon printhead 1. LD card assembly – generates the laser beam. The beam is turned on or off according to a print data signal coming from the system card.
Page 240 4062-XXX Conceptual diagram of an image created by scanning 3-38 Service Manual...
Page 241 4062-XXX Oscillating printhead assembly The oscillating printhead scans the photo conductor drum surface with a laser beam. It consists of four components: laser diode (LD) card assembly, magnetic motor, mirror, and the start of scan card assembly. Oscillating printhead 1. LD card assembly – generates the laser beam. The beam is turned on or off according to a print data signal coming from the system card.
Page 242 4062-XXX Fuser Fuser unit assembly Fuser components 3-40 Service Manual...
Page 243 4062-XXX Heat roll The heat roll is a hollow metal tube with a coated surface. This tube is heated by the inner heater lamp. The heat is applied to the media passing between the heat roll and pressure roll, fusing the toner on the media. Pressure roll The pressure roll is used to apply pressure to the media surface for fusing.
Page 244 4062-XXX Exit The standard media exit ejects printed media from the printer to the standard bin . Sensor (standard bin full) The sensor (standard bin full) detects whether the standard bin is full by moving the actuator up and down. Drive Main drive motor assembly The main drive motor is a DC motor that drives the print cartridge, aligner, MFP and fuser.
Page 245 4062-XXX The redrive motor assembly is a DC motor that drives the redrive assembly that transports the media into the standard bin or output option. Redrive motor assembly Main drive motor assembly Electrical components and controller Main cooling fan LVPS card assembly Duplex System card...
Page 246 4062-XXX Main cooling fan The main cooling fan discharges air from the printer to prevent excessive temperature increase. Print cartridge cooling fan The print cartridge cooling fan discharges air from the print cartridge area to prevent excessive temperature increase. Duplex cooling fan The Duplex cooling fan discharges air from the duplex drive motor area to prevent excessive temperature increase.
Page 247 4062-XXX System card assembly The system card assembly controls printing operation based on the communication with the RIP controller and optional peripherals. It also controls toner dispense, fuser control, sensor switch feedback, drive motors, clutches and solenoids Control Printhead control Rotation of printhead motor The on/off control of the printhead motor is performed according to the mode of operation as shown below.
Page 248 4062-XXX Fuser warm-up The fuser warm-up starts at the time of power on, interlock open or close, jam reset, or return from the low power mode, and ends when the ready temperature is attained, when a failure occurs, or when executing diagnosis.
Page 249 4062-XXX Charge The Charge Roll places a uniform negative electrostatic charge on the surface of the drum. The drum surface is made of a photoconductive material that holds an electrical charge as long as the drum remains in darkness. Light striking the drum discharges the surface charge. HVPS Charge roll (-VDC)
Page 250 4062-XXX This discharge/no discharge process creates an invisible, electrostatic image on the surface of the drum. This image is called a latent image. Modulated Laser Beam Printhead DRUM Drum Surface Drum Surface Image Voltage Laser Beam Laser Beam Discharge Level Invisible Latent Image Development The toner contained within the PC Cartridge has an electrical property that causes it to adhere to the...
Page 251 4062-XXX Roll, toner transfers from the Magnet Roll to that point on the drum. There is now a visible toner image on the drum surface. The image is called a developed image. HVPS Developer Metering Roll Blade Toner DRUM -VDC Drum Surface Drum Surface Image...
Page 252 4062-XXX is now stuck to the photoconductor (drum) due to the relative electrical differences between the negative electrical charge of the inner conductive layer of the drum and the positive electrical charge of the paper. HVPS -VDC DRUM -VDC Transfer roll Sheet of paper Cleaning The Cleaning Blade removes any toner that remains on the drum after the transfer process.
Page 253 4062-XXX Auto density sensing The image density sensor assembly uses a reflection type sensor that detects a pre-placed toner patch and image on the photoconductor (drum) and outputs pulses when the central line of the patch image aligns with the central line of the detector. The sensor outputs pulses at the timing the patch image passes the sensor. Therefore, observing changes of intervals at which pulses are output leads to toner density detection.
Page 254 4062-XXX High Capacity Input Tray (HCIT) tray assembly Rear media tray guide Media end guide Pick arm assembly Media size actuator Sensor (media empty) Sensor (media low) Sensor (pass through) Sensor (tray raised HP) HCF drawer assembly Tray lift drive motor 3-52 Service Manual...
Page 255 4062-XXX 250-sheet/550-sheet tray assembly Lockable back restraint Rear media tray guide Media end guide Auto size finger actuator Media size sensing The media size set for the media tray assembly is set by positioning the right media guide, unlocking the slider lock, and sliding the rear paper guide.
Page 256 4062-XXX Media level sensing The media level for the media tray assembly is triggered by the actuator flag positioned in the two photointerrupter sensors in the pick arm bracket assembly. The actuator flag blocks and unblocks the two sensors in different sequence; it determines whether the paper tray is empty, low, or full. 250-sheet tray Sensor A Sensor B...
Page 257 4062-XXX The pick arm assembly (autocompensator) is a paper pick device that generates its own normal force. This force generation is inherent in the fundamental design of the pick arm. If light media is used, it picks very gently. If a heavy media is used, it picks very aggressively. No customer adjustments are necessary, therefore no special trays are needed for card stock or labels.
Page 258 4062-XXX Switch (media size) This switch (media size) sets the size of media supplied from each media tray assembly. A signal indicating the media size is transmitted as a voltage to the printer system card assembly. Sensor (media empty) If media runs out in a media tray assembly, the actuator lowers and the actuator flag, unlocks the sensing area of the sensor (media empty).
Page 259 4062-XXX Pick arm assembly Sensor (media empty) Sensor (media low) Sensor (pass through) 550-sheet drawer assembly 3-57 Diagnostic aids...
Page 260 4062-XXX Media transport path The following is a cross section of the printer and the tandem tray module, showing the main components directly associated with the media path and transport. Model T650 paper path, rolls, and sensors Standard bin full actuator and sensor (standard bin full) Sensor (input) PC drum...
Page 261 4062-XXX Models T652 and T654 paper path, rolls, and sensors Standard bin full actuator and sensor (standard bin full) Sensor (input) PC drum Diverter PC cartridge Sensor (fuser output) Sensor (narrow media) Sensor (option pass through) Sensor (duplex input) Pick arm assembly Functions of main components When the 250 or 550 sheet input trays are installed under the printer, additional trays are available.
Page 262 4062-XXX The media tray assembly is designed so it can adapt to the media width in the media feed direction by moving the side guide to the left or right. Wear strips The wear strips are designed to provide a fixed resistance to ensure that a single piece of paper is properly fed out of the media tray.
Page 263 4062-XXX Switch (media size) This switch (media size) sets the size of media supplied from each media tray assembly. A signal indicating the media size is transmitted as a voltage to the printer system card assembly. Sensor (media empty) If media runs out in a media tray assembly, the actuator lowers and the actuator flag, unlocks the sensing area of the sensor (media empty).
Page 264 4062-XXX Duplex Layout of media transport path The main components associated with the media path and transport with the duplex installed. Model T650 duplex paper path Sensor (input) Sensor (duplex exit) 3-62 Service Manual...
Page 265 4062-XXX Models T652 and T654 duplex paper path Sensor (input) Sensor (duplex input) Functions of main components When the duplex is installed, duplex (double-sided) printing is available with the printer. The following outlines the functions of the main components of the duplex. Sensor (duplex input) The sensor (duplex wait) detects whether media is remaining in the duplex.
Page 266 4062-XXX Duplex drive motor assembly The duplex drive motor assembly transmits driving force to the two duplex media transport roll assemblies and the duplex media center transport roll assembly middle that feeds media. Duplex drive motor assembly Sensor (duplex input) 3-64 Service Manual...
Page 267 4062-XXX Understanding jam numbers and locations When a jam occurs, a message indicating the jam location appears. Open doors and covers and remove trays to access jam locations. To resolve any paper jam message, you must clear all jammed paper from the paper path.
Page 268 4062-XXX WARNING: Do not leave the cartridge exposed to light for extended periods. WARNING: The jammed paper may be covered with unfused toner which can stain garments and skin. 5. Remove the jammed paper. CAUTION: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.
Page 269 4062-XXX 230 paper jam Rear paper jams 1. Remove the standard tray from the printer. 2. Pull down the bottom rear door. 3-67 Diagnostic aids...
Page 270 4062-XXX 3. Push the tab down. 4. Remove the jammed paper. 5. Close the bottom rear door. 6. Insert the standard tray. 7. Press Front paper jams 1. Remove the standard tray from the printer. 2. Push the tab down. 3.
Page 271 4062-XXX 231-239 paper jams (optional external duplex unit) Rear paper jams 1. Push in and hold the latch while pulling up the rear duplex door. 2. Remove the jammed paper. 3. Close the rear duplex door. 4. Press Front paper jams 1.
Page 272 4062-XXX 3. Raise the recessed duplex bar. 4. Remove the jammed paper,. 5. Replace the duplex jam access tray. 6. Insert the standard tray. 7. Press 241–245 paper jams 1. Pull out the tray indicated on the display. 2. Remove any jammed paper, and then insert the tray. 3.
Page 273 4062-XXX 250 paper jam 1. Remove the paper from the multipurpose feeder. 2. Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface. 3.
Page 274 4062-XXX 260 paper jam The envelope feeder feeds envelopes from the bottom of the stack; the bottom envelope will be the one that is jammed. 1. Lift the envelope weight, and then remove all the envelopes. 2. If the jammed envelope has entered the printer and cannot be pulled out, then lift the envelope feeder up and then out of the printer, and then set it aside.
Page 275 4062-XXX 280 paper jam 1. Pull down the StapleSmart II Finisher door. 2. Remove the jammed paper. 3. Close the StapleSmart ii Finisher door. 4. Press 3-73 Diagnostic aids...
Page 276 4062-XXX 281 paper jam 1. Clear the jam from the stapler output bin. 2. Press 282 paper jam To prevent paper jams, the stapler motor does not run when the stapler door is open. 1. Close the stapler door until it clicks into place. 2.
Page 277 4062-XXX 283 staple jam 1. Press the latch to open the stapler door. 2. Pull the latch of the staple cartridge holder down, and then pull the holder out of the printer. 3. Use the metal tab to lift the staple guard, and then remove any loose staples. 3-75 Diagnostic aids...
Page 278 4062-XXX 4. Press down on the staple guard until it snaps into place. 5. Push the cartridge holder firmly back into the stapler unit until the cartridge holder clicks into place. 6. Close the stapler door. 7. Press 3-76 Service Manual...
Page 279 4062-XXX 4. Repair information WARNING: Read the following before handling electronic parts. Handling ESD-sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, follow the instructions below in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 280 4062-XXX Adjustments Polygon and Oscillating printhead mechanical registration adjustment Do the printhead mechanically registration adjustment whenever you remove or replace the printhead or loosen the mounting screws. Install the new printhead with the mounting screws centered in the slots in the printhead frame assembly. Leave the screws loose enough to allow the printhead to move from side to side within the slots.
Page 281 4062-XXX 5. Select Quick Test Page. The test page should only be printed on letter or A4 paper from Tray 1. The Quick Test Page consists of alignment diamonds, horizontal lines that can be used for mechanical registration adjustment. An example of the printhead alignment printout is shown below: 6.
Page 282 4062-XXX alignment printout is shown below: 6. In the Registration menu, select the right margin setting. 7. To determine the margin setting, choose the value that is closest to the darkest bar on the center graph of the margin page. Add that value to the current right margin setting printed on the left hand side of the margin page.
Page 283 4062-XXX 1. Loosen the locknut on the inside rear of the alignment assembly. 2. Remove the two screws holding the alignment assembly to the left side frame. 3. Back the reference adjustment screw out far enough to allow the alignment assembly to be removed from the printer.
Page 284 4062-XXX Step B Print a copy of the Quick Test Page, and check the margin adjustments printed on the test page. These settings should be within the range specified in “REGISTRATION” on page 3-5. The reference screw can be adjusted without loosening the locknut. Turn the screw a few turns, and print a copy of the Quick Test Page as you check the diamonds on the left margin.
Page 285 4062-XXX Removals Charge roll assembly removal (T650, T652, T654) WARNING: When removing the charge roll assembly, avoid touching the charge roll surface. 1. Open the MPF door assembly. 2. Open the operator panel front cover assembly. 3. Detach the left side of the charge roll assembly from the machine. 4.
Page 286 4062-XXX Duplex assembly removal (T652, T654) Note: When removing the duplex drive motor assembly, it does not need to be completely removed from the machine. It may be allowed to gently hang out of the way by the harness. 1. Remove the duplex drive motor assembly. See “Duplex drive motor assembly removal (T652, T654)”...
Page 287 4062-XXX Duplex cooling fan removal (T652, T654) 1. Remove the side cover, right. See “Side cover, right removal (T652, T654)” on page 4-59. 2. Remove the screw (A) securing the duplex cooling fan to the machine. 3. Disconnect the connector (B) from the duplex cooling fan. 4.
Page 288 4062-XXX Duplex drive motor assembly removal (T652, T654) 1. Remove the fuser access door. See “Fuser access door assembly removal (T650, T652, T654)” on page 4-13. 2. Remove the cover assembly, rear lower. See “Cover assembly, rear lower (T652, T654)” on page 4-55.
Page 289 4062-XXX 7. Remove the harness (E) from the duplex drive motor assembly. Replacement Warning: When replacing the duplex drive motor assembly, ensure that all harnesses are properly re-routed. Replacement Note: Ensure the belt is replaced properly. Duplex input sensor assembly removal (T652, T654) 1.
Page 290 4062-XXX 4. Detach the front right duplex guide spring (B) from the duplex guide assembly, front. 5. Fully open the duplex guide assembly, front 90°, and detach it from the machine. 6. Remove the duplex guide assembly, front. 4-12 Service Manual...
Page 291 4062-XXX Media turn guide removal (T650, T652, T654) 1. Remove the MPF tray door assembly. See “MPF tray door assembly removal (T650, T652, T654)” on page 4-35. 2. Gently bend the left side of the media turn guide to release the hook (A) as shown in the picture. 3.
Page 292 4062-XXX 2. Press the two tabs (A) on the fuser access door assembly, and detach it from the machine. 3. Swing the fuser access door assembly away from the machine. 4. Unsnap the fuser access door assembly from the machine. 5.
Page 293 4062-XXX Main cooling fan removal (T650, T652, T654) 1. Remove the side cover, left assembly. See “Side cover, left removal (T650)” on page 4-23 “Side cover, left removal (T652 and T654)” on page 4-24. 2. Remove the six screws (A) securing the metal shield to the machine. 3.
Page 294 4062-XXX 7. Remove the fuser cooling fan connection (C). Fuser drive release linkage removal (T650, T652, T654) 1. Remove the system card assembly. See “System card assembly removal (T650, T652, T654)” on page 4-71. 2. Gently unsnap the upper end of the fuser drive release linkage from the machine. 3.
Page 295 4062-XXX Fuser unit assembly removal (T650, T652, T654) 1. Remove the fuser wiper cover assembly. See “Fuser wiper cover assembly removal (T650, T652, T654)” on page 4-18. 2. Remove the door assembly, rear. See “Door assembly, rear removal (T650, T652, T654)” on page 4-53.
Page 296 4062-XXX Fuser wiper cover assembly removal (T650, T652, T654) 1. Press the button (A) securing the fuser wiper cover assembly to the machine. 2. Remove the fuser wiper cover assembly. 4-18 Service Manual...
Page 297 4062-XXX HVPS card assembly removal (T650, T652, T654) 1. Remove the side cover, right. See “Side cover, right removal (T650)” on page 4-58 “Side cover, right removal (T652, T654)” on page 4-59. 2. Remove the four screws (A) securing the HVPS card assembly to the machine. 3.
Page 298 4062-XXX 2. Release the two hooks (A) securing the lower portion of the inner deflector to the machine. 3. Remove the inner deflector. Replacement Warning: When replacing the inner deflector, ensure that it is properly installed, or jamming will occur. LCD screen bezel removal (T650, T652, T654) Gently detach the LCD screen bezel from the operator panel door assembly.
Page 299 4062-XXX Laser cover removal (T650, T652, T654) 1. Remove the output cover assembly. See “Output cover assembly removal (T650, T652, T654)” on page 4-29. 2. Remove the fuser wiper cover assembly. See “Fuser wiper cover assembly removal (T650, T652, T654)” on page 4-18.
Page 300 4062-XXX WARNING: When removing the laser cover, ensure that the standard bin actuator assembly does not become damaged. 6. Remove the laser cover. 4-22 Service Manual...
Page 301 4062-XXX Side cover, left removal (T650) 1. Open the MPF tray door assembly. 2. Open the operator panel door assembly. 3. Remove the cover assembly, rear lower. See “Cover assembly, rear lower removal (T650)” on page 4-55. 4. Remove the four screws (A) securing the side cover, left to the machine. 5.
Page 302 4062-XXX Side cover, left removal (T652 and T654) 1. Open the MPF tray door assembly. 2. Open the operator panel door assembly. 3. Remove the cover assembly, rear lower. See “Cover assembly, rear lower removal (T650)” on page 4-55 “Cover assembly, rear lower (T652, T654)” on page 4-55.
Page 303 4062-XXX Option drive shaft removal (T650, T652, T654) 1. Gently place the printer on its left or right side. 2. Using pliers, gently pull the option drive shaft from the machine. 3. Remove the spring. Replacement Warning: When replacing the option drive shaft, ensure that the plastic hook (A) is not damaged, or the option drive shaft will not remain secured.
Page 304 4062-XXX Main drive motor assembly removal (T650, T652, T654) 1. Remove the system card assembly. See “System card assembly removal (T650, T652, T654)” on page 4-71. 2. Remove the fuser drive release linkage. See “Fuser drive release linkage removal (T650, T652, T654)” on page 4-16.
Page 305 4062-XXX Alignment assembly removal (T650, T652, T654) WARNING: When replacing the alignment assembly, ensure that the media skew is properly adjusted using the adjuster screw (C), or jamming will occur. See “Alignment assembly adjustment” on page 4-4. 1. Remove the side cover, left. See “Side cover, left removal (T650)”...
Page 306 4062-XXX “MPF pick solenoid assembly removal (T650, T652, 5. Remove the MPF pick solenoid assembly. See T654)” on page 4-33. 6. Remove the two screws (B) securing the alignment assembly to the machine. Note: The adjuster screw (C) requires a hex wrench to loosen and tighten. Note: The adjuster screw (C) can be accessed through the hole (D) in the system card.
Page 307 4062-XXX Output cover assembly removal (T650, T652, T654) 1. Unsnap the output cover assembly from the machine. 2. Remove the output cover assembly. Media out actuator removal (T650, T652, T654) 1. Remove the pick arm assembly. See “Pick arm assembly removal (T650, T652, T654)” on page 4-43.
Page 308 4062-XXX Media support removal (T650, T652, T654) 1. Gently detach the two bosses (A) of the media support from the machine. 2. Remove the media support. Tray roller catch assembly removal (T650, T652, T654) 1. Remove the media tray. 2. Remove the HVPS card assembly. See “HVPS card assembly removal (T650, T652, T654)”...
Page 309 4062-XXX MPF cam gear removal (T650, T652, T654) 1. Remove the alignment assembly. See “Alignment assembly removal (T650, T652, T654)” on page 4-27. 2. Release the hook (A) securing the gear to the unit. 3. Remove the MPF cam gear. MPF lift plate assembly removal (T650, T652, T654) 1.
Page 310 4062-XXX 5. Remove the MPF lift plate assembly. Replacement Warning: When replacing the MPF lift plate assembly, ensure that the lever (C) is held down when reinstalling the MPF lift plate assembly, or damage will occur. Replacement Warning: When replacing the MPF lift plate assembly, ensure that the MPF pick solenoid assembly does not become damaged.
Page 311 4062-XXX MPF pick solenoid assembly removal (T650, T652, T654) Note: The MPF lift plate assembly can be detached and allowed to hang by the harness. The connection does not need to be disconnected. 1. Remove the MPF lift plate assembly. See “MPF lift plate assembly removal (T650, T652, T654)”...
Page 312 4062-XXX 5. Remove the screw (B) securing the MPF pick solenoid assembly to the machine. 6. Remove the MPF pick solenoid assembly. 7. Disconnect the connection (C) from the MPF pick solenoid assembly. 4-34 Service Manual...
Page 313 4062-XXX MPF tray door assembly removal (T650, T652, T654) 1. Open the operator panel door assembly. 2. Open the MPF tray door assembly, and position it as shown in the picture. 3. Gently release the two bosses (A) from the slots (B). 4-35 Repair information...
Page 314 4062-XXX 4. While holding the MPF tray in its uppermost position, swing the MPF tray door assembly away from the machine to detach the MPF tray from the machine. 4-36 Service Manual...
Page 315 4062-XXX 5. Slide the MPF tray door assembly in the direction of the arrow to detach it from the machine. 6. Remove the MPF tray door assembly. 4-37 Repair information...
Page 316 4062-XXX Operator panel latch assembly removal (T650, T652, T654) 1. Open the operator panel door assembly. 2. Remove the four screws (A) securing the operator panel latch assembly to the machine. 3. Release the two hooks (B). 4. Remove the operator panel latch assembly. Operator panel door assembly removal (T650, T652, T654) 1.
Page 317 4062-XXX 4. Detach the operator panel door assembly from the machine. 5. Remove the black plastic cover. 6. Remove the two screws (C) securing the USB socket to the assembly. 7. Remove the USB socket. 8. Disconnect the connector (D) from the assembly. 4-39 Repair information...
Page 318 4062-XXX Operator panel hinge assembly, left removal (T650, T652, T654) 1. Remove the operator panel door assembly. See “Operator panel door assembly removal (T650, T652, T654)” on page 4-38. 2. Remove the screw (A) securing the cover to the operator panel hinge assembly, left. 3.
Page 319 4062-XXX 10. Remove the operator panel hinge assembly, left. Operator panel hinge assembly, right removal (T650, T652, T654) 1. Remove the operator panel door assembly. See “Operator panel door assembly removal (T650, T652, T654)” on page 4-38. 2. Detach the spring (A) from the operator panel hinge assembly, right. 3.
Page 320 4062-XXX 5. Remove the pin (D) from the operator panel hinge assembly, right. 6. Remove the operator panel hinge assembly, right. 4-42 Service Manual...
Page 321 4062-XXX Pick arm assembly removal (T650, T652, T654) 1. Remove the media tray from the machine. 2. Place the machine on the left or right side. 3. Remove the spring (A). 4. Remove the two E-clips (B) securing the pick arm assembly to the machine. 4-43 Repair information...
Page 322 4062-XXX 5. Remove the screw (C) securing the pick arm assembly to the machine. 6. Remove the band (D) from the pick arm assembly. 7. Remove the cover from the pick arm assembly. 8. Remove the three connections (E) from the pick arm assembly. 9.
Page 323 4062-XXX Pick roll assembly removal (T650, T652, T654) 1. Remove the media tray. 2. Gently pull the pick arm assembly down, and release the two hooks (A) securing the two pick roll assemblies. 3. Remove the two pick roll assemblies. Replacement Warning: When replacing the pick roll assembly, do not touch the rubber surface.
Page 324 4062-XXX Print cartridge clamp assembly removal (T650, T652, T654) Note: This procedure can be applied to the left or right printer cartridge hold down assembly. 1. Remove the laser cover. See “Laser cover removal (T650, T652, T654)” on page 4-21. 2.
Page 325 4062-XXX Print cartridge ID connector assembly removal (T650, T652, T654) 1. Remove the print cartridge. 2. Remove the main drive motor assembly. See “Main drive motor assembly removal (T650, T652, T654)” on page 4-26. 3. Release the two hooks (A) securing the print cartridge ID connector assembly to the machine. 4.
Page 326 4062-XXX Printhead assembly removal (T650) Note: When replacing the printhead assembly, ensure that the printhead is properly calibrated, or print quality issues will occur. See “Alignment assembly adjustment” on page 4-4. 1. Remove the laser cover. See “Laser cover removal (T650, T652, T654)” on page 4-21.
Page 327 4062-XXX 5. Remove the three screws (C) securing the printhead assembly to the machine. 6. Remove the printhead assembly. Replacement Warning: When replacing the printhead assembly, ensure that the printhead is properly calibrated, or print quality issues will occur. Printhead assembly removal (T652, T654) WARNING: When replacing the printhead assembly, ensure that the printhead skew is properly adjusted, or print quality issues will occur.
Page 328 4062-XXX 3. Remove the metal cover. 4. Disconnect the connections (B) from the printhead assembly. 5. Remove the four screws (C) securing the printhead assembly to the machine. 6. Remove the printhead assembly. Replacement Warning: When replacing the printhead assembly, ensure that the printhead skew is properly adjusted, or print quality issues will occur.
Page 329 4062-XXX Connection access cover, rear removal (T650, T652, T654) 1. Gently detach the two hinges (A) of the connection access cover, rear from the machine. 2. Remove the connection access cover, rear. Connection bezel assembly, rear removal (T650) 1. Remove the side cover, left. See “Side cover, left removal (T650)”...
Page 330 4062-XXX Connection bezel assembly, rear removal (T652, T654) 1. Remove the side cover, left. See “Side cover, left removal (T652 and T654)” on page 4-24. 2. Remove the cover assembly, rear lower. See “Cover assembly, rear lower (T652, T654)” on page 4-55.
Page 331 4062-XXX Door assembly, rear removal (T650, T652, T654) 1. Pull the door assembly, rear away from the machine. 2. Twist the door strap left or right until vertical, and pull the strap out of the slot. 3. Position the door assembly, rear at a 45° angle as shown in the picture. 4.
Page 332 4062-XXX 6. Detach the rear duplex guide spring (C). 7. Remove the duplex guide assembly, rear. 8. Remove the screw (D) securing the rear duplex guide handle to the assembly. 9. Remove the duplex guide assembly, rear. 4-54 Service Manual...
Page 333 4062-XXX Cover assembly, rear lower removal (T650) 1. Remove the fuser access door assembly. See “Fuser access door assembly removal (T650, T652, T654)” on page 4-13. 2. Open the rear lower door. 3. Remove the three screws (A) securing the cover assembly, rear lower to the machine. 4.
Page 334 4062-XXX Redrive motor assembly removal (T652, T654) 1. Remove the laser cover. See “Laser cover removal (T650, T652, T654)” on page 4-21. 2. Remove the six screws (A) securing the metal cover to the machine. 3. Remove the metal cover. 4-56 Service Manual...
Page 335 4062-XXX 4. Disconnect the connection (B) from the redrive motor assembly. 5. Disconnect the connection (C) from the sensor (standard media bin full). 6. Release the hooks (D) securing the output option interface cable assembly to the machine. 7. Detach the output option cable assembly. 4-57 Repair information...
Page 336 4062-XXX 8. Remove the two screws (E) securing the redrive motor assembly to the machine. 9. Remove the redrive motor assembly. Side cover, right removal (T650) 1. Open the operator panel door assembly. 2. Open the MPF tray door assembly. 3.
Page 337 4062-XXX Side cover, right removal (T652, T654) 1. Open the operator panel door assembly. 2. Open the MPF tray door assembly. 3. Remove the cover assembly, rear lower. See “Cover assembly, rear lower (T652, T654)” on page 4-55. 4. Remove the five screws (A) securing the side cover, right to the machine. 5.
Page 338 4062-XXX Sensor (media level) removal (T650, T652, T654) 1. Remove the pick arm assembly. Go to “Pick arm assembly removal (T650, T652, T654)” on page 4-43. 2. Release the hooks (A) securing the sensor (media level) to the assembly. 3. Remove the sensor (media level). Sensor (media out) removal (T650, T652, T654) 1.
Page 339 4062-XXX Sensor (toner empty) removal (T650, T652, T654) 1. Remove the HVPS card assembly. See “HVPS card assembly removal (T650, T652, T654)” on page 4-19. 2. Remove the screw (A) securing the sensor (toner empty) to the machine. 3. Remove the sensor (toner empty). 4.
Page 340 4062-XXX 4. Disconnect the connection (B) from the sensor (input). Sensor shield assembly removal (T650, T652, T654) 1. Remove the inner deflector. See “Inner deflector removal (T650, T652, T654)” on page 4-19. 2. Gently unsnap the sensor shield assembly from the machine. 3.
Page 341 4062-XXX Standard bin actuator assembly removal (T650, T652, T654) 1. Remove the laser cover. See “Laser cover removal (T650, T652, T654)” on page 4-21. 2. Disconnect the connection (A) from the standard bin actuator assembly. 3. Press the tab (B) to release the standard bin actuator assembly from the machine. 4.
Page 342 4062-XXX Sensor (toner density) removal (T650, T652, T654) 1. Remove the sensor shield assembly. See “Sensor shield assembly removal (T650, T652, T654)” on page 4-62. 2. Remove the two screws (A) securing the sensor (toner density) to the machine. 3. Remove the sensor (toner density). 4.
Page 343 4062-XXX 3. Remove the metal cover. 4. Remove the media tray. 5. Gently place the machine on the left of right side. 6. Release the two hooks (B) securing the switch (media size) assembly to the machine. 7. Remove the switch (media size) assembly. 8.
Page 344 4062-XXX 4. Remove the two screws (B) from the LVPS card assembly. 5. Gently pull the LVPS card assembly from the machine. 6. Disconnect the connector (C) from the LVPS card assembly. 4-66 Service Manual...
Page 345 4062-XXX 7. Remove the LVPS card assembly. Replacement Warning: When replacing the LVPS card assembly, ensure that all connections are replaced. Replacement Warning: When replacing the LVPS card assembly, ensure that the connector pins (D) properly engage the system card. Replacement Warning: When replacing the LVPS card assembly, ensure that the voltage selection switch (E) is set to the proper setting, or damage will occur.
Page 346 4062-XXX LVPS card assembly removal (T652, T654) WARNING: When replacing the LVPS card assembly, ensure that the voltage selection switch (E) is set to the proper setting, or damage will occur. 1. Remove the door assembly, rear. See “Door assembly, rear removal (T650, T652, T654)” on page 4-53.
Page 347 4062-XXX 6. Disconnect the connector (C) from the LVPS card assembly. 7. Remove the LVPS card assembly. Replacement Warning: When replacing the LVPS card assembly, ensure that all connections are replaced. Replacement Warning: When replacing the LVPS card assembly, ensure that the connector pins (D) properly engage the system card.
Page 348 4062-XXX Access door removal (T650, T652, T654) 1. Open the access door. 2. Gently detach the two hinges (A) of the access door from the machine. 3. Remove the access door. 4-70 Service Manual...
Page 349 4062-XXX System card assembly removal (T650, T652, T654) CAUTION This product contains a lithium battery. THERE IS A RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY AN INCORRECT TYPE. Discard used batteries according to the battery manufacturer’s instructions and local regulations. “Side cover, left removal (T650)”...
Page 350 4062-XXX 4. Remove the metal shield. WARNING: When disconnecting all the electrical connections, ensure that the connectors and harnesses do not become damaged. 5. Disconnect all connections from the system card assembly. Note: There are two fine thread screws and four course thread screws securing the system card assembly to the machine, ensure that these screws are properly reinstalled.
Page 351 4062-XXX WARNING: When removing the system card assembly from the machine, ensure that the LVPS assembly connection (C) does not become damaged. 7. Remove the system card assembly. 8. Remove any remaining screws securing the system card assembly to the metal box. 9.
Page 352 4062-XXX Transfer roll assembly removal (T650, T652, T654) 1. Open the operator panel door assembly. 2. Remove the print cartridge. 3. Gently unsnap the transfer roll assembly from the machine. 4. Remove the transfer roll assembly. Replacement Warning: When replacing the transfer roll assembly, do not touch the foam surface. 4-74 Service Manual...
Page 353 4062-XXX Transfer roll bracket assembly, left removal (T650, T652, T654) 1. Remove the transfer roll assembly. See “Transfer roll assembly removal (T650, T652, T654)” on page 4-74. 2. Remove the inner deflector. See “Inner deflector removal (T650, T652, T654)” on page 4-19.
Page 354 4062-XXX Transfer roll bracket assembly, right removal (T650, T652, T654) 1. Remove the transfer roll assembly. See “Transfer roll assembly removal (T650, T652, T654)” on page 4-74. 2. Remove the inner deflector. See “Inner deflector removal (T650, T652, T654)” on page 4-19.
Page 355 4062-XXX Transfer deflector removal (T650, T652, T654) 1. Remove the transfer roll assembly. See “Transfer roll assembly removal (T650, T652, T654)” on page 4-74. 2. Gently unsnap the transfer deflector from the machine. 3. Remove the transfer deflector. 4. Remove the screw (A) securing the ground wire to the transfer deflector. 5.
Page 356 4062-XXX Redrive assembly removal (T650, T652, T654) 1. Remove the door assembly, rear. See “Door assembly, rear removal (T650, T652, T654)” on page 4-53. 2. Open the fuser access door. 3. Remove the two screws (A) securing the redrive assembly to the machine. 4.
Page 357 4062-XXX Option removals High capacity input tray 4-79 Repair information...
Page 358 4062-XXX High capacity input tray (HCIT) media tray assembly removal 1. Open the HCIT media tray assembly until it reaches a stop. 2. Press the latch (A) down on the left side of the HCIT tray slide, and press the latch (B) up on the right side of the HCIT tray slide.
Page 359 4062-XXX High capacity input tray (HCIT) tray cover, front removal 1. Open the HCIT media tray assembly until it reaches a stop. 2. Remove the six screws (A) securing the HCIT tray cover, front to the HCIT media tray assembly. 4-81 Repair information...
Page 360 4062-XXX 3. Remove the HCIT tray cover, front. 4-82 Service Manual...
Page 361 4062-XXX High capacity input tray (HCIT) cover, rear removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1. Remove the four screws (A) securing the HCIT cover, rear to the drawer. 4-83 Repair information...
Page 362 4062-XXX 2. Remove the HCIT cover, rear. 4-84 Service Manual...
Page 363 4062-XXX High capacity input tray (HCIT) cover, right removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. Note: Before removing the HCIT right cover, first remove the right side anti-tip latch assembly. See “High capacity input tray (HCIT) anti-tip latch assembly removal” on page 4-89.
Page 364 4062-XXX 4. Remove the HCIT cover, right. 4-86 Service Manual...
Page 365 4062-XXX High capacity input tray (HCIT) cover, left removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. Note: Before removing the HCIT cover, left, first remove the left side anti-tip latch assembly. See “High capacity input tray (HCIT) anti-tip latch assembly removal” on page 4-89.
Page 366 4062-XXX 4. Remove the HCIT cover, left. 4-88 Service Manual...
Page 367 4062-XXX High capacity input tray (HCIT) anti-tip latch assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. The left and right anti-tip latch assemblies are the same, and only one is in a package. The instructions below are for removing the left latch;...
Page 368 4062-XXX High capacity input tray (HCIT) drawer slide assembly removal The left and right drawer slide assemblies are the same, and only one is in a package. The instructions below are for removing the left slide; removing the right slide has similar instructions. 1.
Page 369 4062-XXX High capacity input tray (HCIT) tray lift drive motor assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1. Remove the HCIT cover, right. See “High capacity input tray (HCIT) cover, right removal” on page 4-85.
Page 370 4062-XXX High capacity input tray (HCIT) controller card assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-87.
Page 371 4062-XXX 3. Remove the three screws (A) securing the HCIT controller card assembly. 4. Remove the HCIT controller card assembly and the shield. High capacity input tray (HCIT) media size actuator assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1.
Page 372 4062-XXX 4. Snap loose the actuator switch (C) and remove. 5. Remove the four screws (D) securing the media size actuator (E) and the card mount option (F) to the frame. 6. Remove the screw securing the media size actuator to the card mount option. 4-94 Service Manual...
Page 373 4062-XXX 7. Remove the media size actuator from the card mount option. 8. Remove the card mount option. Sensor (HCIT tray raised HP) with cable assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1.
Page 374 4062-XXX 3. Remove the screw (A) securing the sensor to the upper rear frame. 4. Release the hooks (B) securing the sensor to the rear frame. 5. Remove the sensor (HCIT tray raised HP). 4-96 Service Manual...
Page 375 4062-XXX Sensor (HCIT pass through) with cable removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-87. 2. Disconnect the sensor (HCIT pass through) from the HCIT controller card assembly. Note: Remove the cable restraint, and observe the routing for reinstallation.
Page 376 4062-XXX High capacity input tray (HCIT) pick arm bracket assembly removal Note: Carefully remove the base machine from the HCIT tray assembly before proceeding. 1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-87.
Page 377 4062-XXX 4. Remove the five screws (A) securing the HCIT pick arm bracket assembly. 5. Remove the HCIT pick arm bracket assembly from the drawer by slightly lifting and removing it. 4-99 Repair information...
Page 378 4062-XXX High capacity input tray (HCIT) tray closed latch with spring removal The left and right tray closed latches with springs are the same, and only one is in a package. The instructions below are for removing the left latch; removing the right latch has similar instructions. 1.
Page 379 4062-XXX 250-sheet media tray assembly removal Remove the 250-sheet media tray assembly from the 250-sheet option drawer assembly. 250-sheet option drawer assembly removal Remove the 250-sheet media tray assembly from the 250-sheet option drawer assembly. 4-101 Repair information...
Page 380 4062-XXX 250-sheet pick arm bracket assembly removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Disconnect the two 250-sheet pick arm bracket assembly cable connectors from the 250-sheet controller card assembly. 2. Detach the pick arm spring from the drawer. 3.
Page 381 4062-XXX 250-sheet media out actuator removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal” on page 4-102. 2. Release the hook (A) securing the 250-sheet media out actuator to the 250-sheet pick arm bracket assembly.
Page 382 4062-XXX 3. Remove the anti-tip latch assembly. 250-sheet frame assembly removal. Note: The 250-sheet frame assembly is not a FRU. 1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal” on page 4-102 2. Release the hooks securing the sensor (pass through) to the drawer. 3.
Page 383 4062-XXX 5. Remove the 250-sheet frame assembly. Sensor (pass through) with cable removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal” on page 4-102 2.
Page 384 4062-XXX 4. Remove the four screws (A) securing the 250-sheet frame assembly to the drawer. 5. Remove the 250-sheet frame assembly. 4-106 Service Manual...
Page 385 4062-XXX 6. Disconnect the sensor (pass through) cable connector from the 250-sheet controller card. 7. Remove the sensor (pass through) with cable. 4-107 Repair information...
Page 386 4062-XXX 250-sheet controller card assembly removal 1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal” on page 4-102 2. Release the hooks securing the sensor (pass through) to the drawer. 3. Remove the sensor (pass through) from the drawer. 4.
Page 387 4062-XXX 5. Remove the 250-sheet frame assembly. 6. Disconnect the three connectors from the 250-sheet controller card assembly. 7. Remove the three screws (B) securing the 250-sheet controller card assembly to the 250-sheet frame. 8. Remove the 250-sheet controller card assembly. 4-109 Repair information...
Page 388 4062-XXX Media size actuator removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Remove the 250-sheet controller card assembly. Go to “250-sheet controller card assembly removal” on page 4-108. 2. Remove the screw (A) securing the media size actuator to the 250-sheet frame. 3.
Page 389 4062-XXX Media tray catch spring removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal” on page 4-102. 2. Release the hooks securing the sensor (pass through) to the drawer. 3.
Page 390 4062-XXX 6. Turn the drawer over so that you can access the media tray catch spring. 7. Release the media tray catch spring. 4-112 Service Manual...
Page 391 4062-XXX Tray roller catch assembly removal Note: Carefully remove the base machine from the input option tray assembly before proceeding. 1. Remove the media tray catch spring. See “Media tray catch spring removal” on page 4-111. 2. Remove the tray roller catch assembly from the drawer. 4-113 Repair information...
Page 392 4062-XXX 550-sheet option tray assembly 4-114 Service Manual...
Page 393 4062-XXX 550-sheet media tray assembly removal Remove the 550-sheet media tray assembly from the 550-sheet option drawer assembly. 550-sheet option drawer assembly removal Remove the 550-sheet media tray assembly from the 550-sheet option drawer assembly. 4-115 Repair information...
Page 394 4062-XXX 550-sheet pick arm bracket assembly removal 1. Remove the 550-sheet media tray assembly. See “550-sheet media tray assembly removal” on page 4-115. 2. Remove the two 550-sheet pick arm bracket assembly cable connectors (A) from the 550-sheet controller card assembly. 3.
Page 395 4062-XXX 550-sheet bellcrank recoil spring removal 1. Remove the 550-sheet pick arm bracket assembly. See “550-sheet pick arm bracket assembly removal” on page 4-116. 2. Remove the 550-sheet bellcrank recoil spring from the 550-sheet pick arm bracket assembly. Media out actuator removal (models T652 and T654) 1.
Page 396 4062-XXX Anti-tip latch assembly removal The left and right anti-tip latch assemblies are the same, and only one is in a package. The instructions below are for removing the left latch, but removing the right latch is similar. 1. Remove the 550-sheet media tray assembly. See “550-sheet media tray assembly removal”...
Page 397 4062-XXX 550-sheet frame assembly removal Note: The 550-sheet frame assembly is not a FRU. 1. Remove the 550-sheet pick arm bracket assembly. See “550-sheet pick arm bracket assembly removal” on page 4-116. 2. Release the hooks securing the sensor (pass through) to the drawer. 3.
Page 398 4062-XXX 5. Remove the 550-sheet frame assembly. 4-120 Service Manual...
Page 399 4062-XXX Upper interface cable assembly removal 1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-119. 2. Disconnect the upper interface cable connector (A) from the 550-sheet controller card. 3. Release the two hooks (B) securing the options auto connect to the 550-sheet frame. 4.
Page 400 4062-XXX Sensor (pass through) with cable removal 1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-119. 2. Disconnect the sensor (pass through) cable connector from the 550-sheet controller card. 3. Remove the sensor (pass through) with cable. 550-sheet controller card assembly removal “550-sheet frame assembly removal”...
Page 401 4062-XXX 3. Remove the three screws (A) securing the 550-sheet controller card assembly to the 550-sheet frame. 4. Remove the 550-sheet controller card assembly. 4-123 Repair information...
Page 402 4062-XXX Media size actuator removal 1. Remove the 550-sheet controller card assembly. See “550-sheet controller card assembly removal” on page 4-122. 2. Remove the screw (A) securing the media size actuator to the 550-sheet frame. 3. Remove the media size actuator. 4-124 Service Manual...
Page 403 4062-XXX 550-sheet option drive shaft with spring removal 1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-119. 2. Pinch the two hooks (A) on the cap, and detach it from the 550-sheet frame. 3. Pull the drive roll gear (B), the shaft with spring (C), and the bevel out through the opening. 4.
Page 404 4062-XXX Media tray catch spring removal 1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-119. 2. Turn the drawer over so that you can access the media tray catch spring. 3. Release the media tray catch spring. Media tray roller catch assembly removal 1.
Page 405 4062-XXX Stapler finisher rear door assembly removal 1. Open the rear door assembly. 2. Force the left hinge out of the slot by pushing the door to the right. 3. Once the left hinge has been disengaged, pull the right hinge out. 4.
Page 406 4062-XXX 2. Using a flat-blade screwdriver, depress the tabs (A) on the sensor and remove it from the sensor cover. 3. Remove the harness connected to the media bin present sensor. 4. Remove the stapler finisher sensor (finisher bin media present). Stapler finisher standard output bin LED and LED clear lens removal 1.
Page 407 4062-XXX Stapler finisher controller card assembly removal 1. Remove the left stapler finisher left cover. See “Stapler finisher left cover removal” on page 4-127. 2. Disconnect all harnesses to the controller card. 3. Remove the three screws (A) securing the stapler controller card assembly. 4.
Page 408 4062-XXX 2. Remove the two screws (A) securing the sensor (bin full receive). 3. Disconnect the harness and remove. Stapler finisher sensor (media in stapler) removal 1. Remove the stapler unit assembly from the stapler finisher. See “Stapler finisher stapler unit assembly removal”...
Page 409 4062-XXX 2. Grasp the upper end of the spring and remove from the bracket and pull the bottom end of the spring off the lower bracket. High capacity stacker standard output bin LED removal 1. Remove the two screws (A) securing the output bin LED bracket to the underside of the media output bin. 2.
Page 410 4062-XXX “High capacity stacker controller 1. Remove the high capacity stacker controller card cover panel. See card cover panel removal” on page 4-131. 2. Disconnect the harnesses from the controller card. Note: Pay careful attention to where the power input and output harnesses are attached. 3.
Page 411 4062-XXX High capacity stacker upper diverter spring removal 1. Remove the high capacity stacker left mounting bracket. See “High capacity stacker left mounting bracket removal” on page 4-132. 2. Using a spring hook, remove the high capacity upper diverter spring from the upper diverter and frame tab. High capacity stacker sensor (diverter gate HP) removal 1.
Page 412 4062-XXX 4. Pull the left side up first and carefully unroute the cables from the channels and then remove the top cover. 5-bin mailbox media bin full actuator removal 1. Remove the 5-bin mailbox left inner cover. See “5-bin mailbox left inner cover removal” on page 4-133.
Page 413 4062-XXX 2. Using a springhook, remove the diverter spring from the diverter. 3. Unsnap each side of the diverter and remove. Replacement Note: The static brush mylar assembly is attached to the media bin fifth diverter. Do not forget to reinstall it on the new diverter. 5-bin mailbox upper diverter spring removal 1.
Page 414 4062-XXX 4. Remove the four screws (B) securing the left frame assembly to the 5-bin mailbox assembly. 5. Move the left frame assembly out of the way. 6. Remove the 5-bin mailbox sensor (diverter gate HP) by pressing the tabs. 7.
Page 415 4062-XXX 4. Pull the media bin latch from its boss to remove. Output expander media output bin assembly removal 1. Remove the left and right output expander media bin latches. See “Output expander media bin latch (left and right) removal” on page 4-136.
Page 416 4062-XXX 4. Remove the controller card. Replacement Note: Be sure to replace the interface connectors in their proper orientation as the two have common connection pins. Output expander standard output bin LED removal 1. Remove the two screws (A) securing the output bin LED assembly bracket. 2.
Page 417 4062-XXX 5. Connector locations and connections Connections A wiring diagram showing connector locations will be inserted here at a later date. Connector locations and connections...
Page 418 4062-XXX Service Manual...
Page 419 Damaged, missing, or altered parts, especially in the area of the on/off switch and the power supply. • Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover. • Possible safety exposure from any non-Lexmark attachments. Lubrication specifications No requirements for this printer. Scheduled maintenance Maintenance kit The operator panel displays the message 80 Scheduled Maintenance at each 300K page count interval.
Page 420 4062-XXX Service Manual...
Page 421 • PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet. Model information used in the parts catalog. Machine type Model Configuration 4062-010 T650n Network 4062-01A T650n Network 4062-210 T652n Network 4062-21A...
Page 422 4062-XXX Assembly 1: Covers Service Manual...
Page 423 4062-XXX Assembly 1: Covers Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4331 Door assembly, rear (T654) 40X4332 Door assembly, rear (T650) 40X4329 Door assembly, rear (T652) 40X4334 Cover assembly, rear lower (T650) 40X4335 Cover assembly, rear lower (T652 and T654) 40X4337 Side cover, right (T654) 40X4338...
Page 424 4062-XXX Assembly 2: Operator panel Service Manual...
Page 425 Counterbalance spring 40X4397 Operator panel hinge assembly, right 40X4462 Operator panel door assembly 40X4616 Operator panel latch assembly 40X4415 LCD screen bezel (T650n) 40X4471 LCD screen bezel (T652dn) 40X4494 LCD screen bezel (T652n) 40X4627 LCD screen bezel (T654dn) 40X4628 LCD screen bezel (T654n)
Page 426 4062-XXX Assembly 3: Drive motor assemblies and duplex Service Manual...
Page 427 4062-XXX Assembly 3: Drive motor assemblies and duplex Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4465 Redrive assembly (T650) 40X4466 Redrive assembly (T652) 40X4467 Redrive assembly (T654) 40X4344 Duplex drive motor assembly (T652 and T654) 40X4346 Duplex assembly with 2 belts and 2 pulleys (T652 and T654) 40X4351 Duplex guide handle (T652 and T654)
Page 428 4062-XXX Assembly 4: Media path and ducts Service Manual...
Page 429 4062-XXX Assembly 4: Media path and ducts Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4384 EP cooling fan duct 40X4390 Machine pad 40X1869 Transfer deflector with static brush 40X1889 Duplex deletion assembly (T652, T654) 40X4387 Inner deflector (T650) 40X4388 Inner deflector (T652, T654) 40X1900...
Page 430 4062-XXX Assembly 5: Printhead, fuser assembly, and electronics 7-10 Service Manual...
Page 431 4062-XXX Assembly 5: Printhead, fuser assembly, and electronics Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X1870 Fuser assembly 100V, type 1 40X4418 Fuser assembly 110V, type 1 40X1871 Fuser assembly220V, type 1 40X5853 Fuser assembly100V, type 2 40X5854 Fuser assembly110V, type 2 40X5855...
Page 432 4062-XXX Assembly 6: Pick arm assembly and MPF 7-12 Service Manual...
Page 433 4062-XXX Assembly 6: Pick arm assembly and MPF Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4304 Pick arm assembly with spring, 250 sheet (T650) 40X4305 Pick arm assembly with spring, 500 sheet (T652 and T654) 40X4306 Pick arm spring (T650) 40X4307 Pick arm spring (T652 and T654)
Page 434 4062-XXX Assembly 7: 250 Sheet option tray assembly 7-14 Service Manual...
Page 435 4062-XXX Assembly 7: 250 Sheet option tray assembly Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4569 Complete 250 sheet option tray assembly 40X3447 250 Sheet pick arm bracket assembly 40X3448 250 Sheet bellcrank recoil spring 40X4308 Pick roll assembly (2) 40X4369 Sensor (media low)
Page 436 4062-XXX Assembly 8: 550 Sheet option tray assembly 7-16 Service Manual...
Page 437 4062-XXX Assembly 8: 550 Sheet option tray assembly Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4576 Complete 550 sheet option tray assembly 40X3454 550 Sheet pick arm bracket assembly 40X4307 550 Sheet bellcrank recoil spring 40X4308 Pick roll assembly (2) 40X4369 Sensor (media low)
Page 438 4062-XXX Assembly 9: HCIT Sheet option tray assembly 7-18 Service Manual...
Page 439 4062-XXX Assembly 9: HCIT Sheet option tray assembly Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4579 Complete HCIT option tray assembly 40X4590 HCIT pick arm bracket assembly 40X4595 Pick arm sensor cable assembly 40X4591 HCIT bellcrank recoil spring 40X4308 Pick roll assembly (2) 40X4369...
Page 440 4062-XXX Assembly 10: Finisher assembly #1 7-20 Service Manual...
Page 441 4062-XXX Assembly 10: Finisher assembly #1 Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5546 Stapler finisher assembly 40X4369 Sensor (media stack) Sensor (paddle HP) Sensor (stapler access door interlock) Sensor (tamper HP left) Sensor (tamper HP right) 40X4645 Media stack flap actuator 40X4646...
Page 442 4062-XXX Assembly 11: Finisher assembly #2 7-22 Service Manual...
Page 443 4062-XXX Assembly 11: Finisher assembly #2 Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5546 Stapler finisher assembly 40X4369 Sensor (media stack) Sensor (paddle HP) Sensor (stapler access door interlock) Sensor (tamper HP left) Sensor (tamper HP right) 40X4645 Media stack flap actuator 40X4646...
Page 444 4062-XXX Assembly 12: 5-bin mailbox 7-24 Service Manual...
Page 445 4062-XXX Assembly 12: 5-bin mailbox Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5550 Complete 5 bin mailbox unit assembly 40X5708 Top cover 40X5709 Rear door assembly 40X5710 Left outer cover 40X5711 Left inner cover 40X5712 Right outer cover 40X5713 Right inner cover 40X2038...
Page 446 4062-XXX Assembly 13: High capacity stacker 7-26 Service Manual...
Page 447 4062-XXX Assembly 13: High capacity stacker Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5730 Complete high capacity stacker assembly 40X5737 Rear door assembly 40X1988 Diverter gate 40X3264 Sensor (pass through) 40X5733 High capacity output controller card assembly 40X5734 Right frame 40X5735...
Page 448 4062-XXX Assembly 14: Output expander 7-28 Service Manual...
Page 449 4062-XXX Assembly 14: Output expander Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5719 Complete output expander assembly 40X1998 Media bail assembly 40X5721 Media output bin assembly 40X5722 Rear door assembly 40X5723 Left Outer cover 40X5724 Left inner cover 40X5725 Right outer cover 40X5726...
Page 450 4062-XXX Assembly 15: Envelope feeder and external duplex 7-30 Service Manual...
Page 451 4062-XXX Assembly 15: Envelope feeder and external duplex Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5739 Envelope feeder 40X5904 External duplex 7-31 Parts catalog...
Page 452 4062-XXX Assembly 16: Electrical cables 7-32 Service Manual...
Page 453 4062-XXX Assembly 16: Electrical cables Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X4357 Duplex cooling fan cable assembly 40X4360 Print cartridge cooling fan cable assembly 40X4361 HVPS/Sensor cable assembly 40X4366 Operator panel cable assembly 40X4313 Pick arm sensor cable 40X4358 Envelope/input option tray cable assembly 40X4376...
Page 454 Lexmark N4050e (1 port USB) wireless 802.11g (US/Americas) 40X1593 Lexmark MarkNet N7002e (1 port parallel) ethernet 10baseT/100BaseTX 40X1594 Lexmark MarkNet N7002e (1 port parallel) ethernet 10base T/100Base TX 40X1592 Lexmark MarkNet N7020e (4 port USB) ethernet 10base T/100Base TX/1000BaseT 40X4819...
Page 455 4062-XXX Assembly 16: Miscellaneous (continued) Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X0269 Power cord LV, USA & Canada, Latin America 40X0288 Power cord HV, Argentina 40X1766 Power cord HV, Bolivia & Peru 40X0273 Power cord HV, Chile, Uruguay 40X3141 Power cord HV, Paraguay, Austria, Belgium, France, Germany, Italy, Netherlands, Bluemark, Czech &...
Page 456 4062-XXX Assembly 16: Universal trays and accessories Asm- Part Units/ Units/ kit Description Index number mach or pkg 40X5857 Universal media drawer with tray, 200 sheet 40X5858 Universal media tray, 200 sheet 40X5859 Universal media drawer with tray, 400 sheet 40X5860 Universal media tray, 400 sheet 40X5945...
Page 457 4062-XXX Index 3-10 Numerics Sensor Test 3-10 Top Margin 5-bin mailbox EP SETUP 3-14 output sensor test 3-18 Auto Dark Adj 3-18 Charge Roll 3-18 3-57 EP Defaults acronyms 3-18 Fuser Page Count adjustments 3-18 Fuser Temp fuser solenoid 3-18 Gap Adjust gap adjustment 3-18...
Page 458 4062-XXX 3-10 Top Margin maintenance approach menus accessing service menus error codes 3-17 Model Name 2-120 2-132 200.00 sensor (registration) late jam 2-133 2-123 200.01 sensor (registration) lag jam operator panel ESD-sensitive parts Button Test event log Panel Test 3-20 clear log (diagnostics mode) parts catalog 3-19...
Page 459 4062-XXX standard media exit roll assembly 3-42 sensor (standard bin full) 3-36 transfer 3-36 2nd transfer roll assembly 3-46 xerographic process during a print cycle 3-22 quality pages Quick Test REGISTRATION registration ii-xix safety information safety inspection guide scheduled maintenance 3-16 serial number 2-117...
Page 460 4062-XXX Service Manual...
Page 461 Lexmark MarkNet N7002e (1 port parallel) ethernet 10baseT/100BaseTX - - - - - - - - - - - - - - - - - - - - - 7-34 40X1594 Lexmark MarkNet N7002e (1 port parallel) ethernet 10base T/100Base TX - - - - - - - - - - - - - - - - - - - - 7-34 40X1766 Power cord HV, Bolivia &...
Page 462 4062-XXX 7-36 40X2787 Wear strips, 3 row dimpled 550 sheet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X2788 Wear strips, 4 row dimpled 550 sheet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-36...
Page 463 LCD screen bezel (T650n) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
Page 464 4062-XXX 7-13 40X4459 MPF lift plate assembly (T652 and T654) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X4460 MPF tray door assembly (T650) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13...
Page 465 4062-XXX 7-21 7-23 40X4626 Sensor (bin full send) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X4627 LCD screen bezel (T654dn) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40X4628...
Page 466 Lexmark N4000e print server - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-34 56P2744 Lexmark N4050e (1 port USB) wireless 802.11g (US/Americas) - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-34 56P4191...

This manual is also suitable for:

T650 T654dn T652dn

Lexmark T650n Service Manual

Table of Contents

Notices and Safety Information

Laser Notice

Lithium Warning

Safety Information

Preface

Conventions

General Information

Maintenance Approach

Options

Tools Required

Acronyms

Diagnostic Information

Start

Confirm the Installation Status

Power-On Reset Sequence

User Attendance Messages

Error Code Table 1

Service Checks

Quick Links

Related Manuals for Lexmark T650n

Summary of Contents for Lexmark T650n

This manual is also suitable for:

Table of Contents
