Media Tray Catch Spring Removal - Lexmark T650 Service Manual

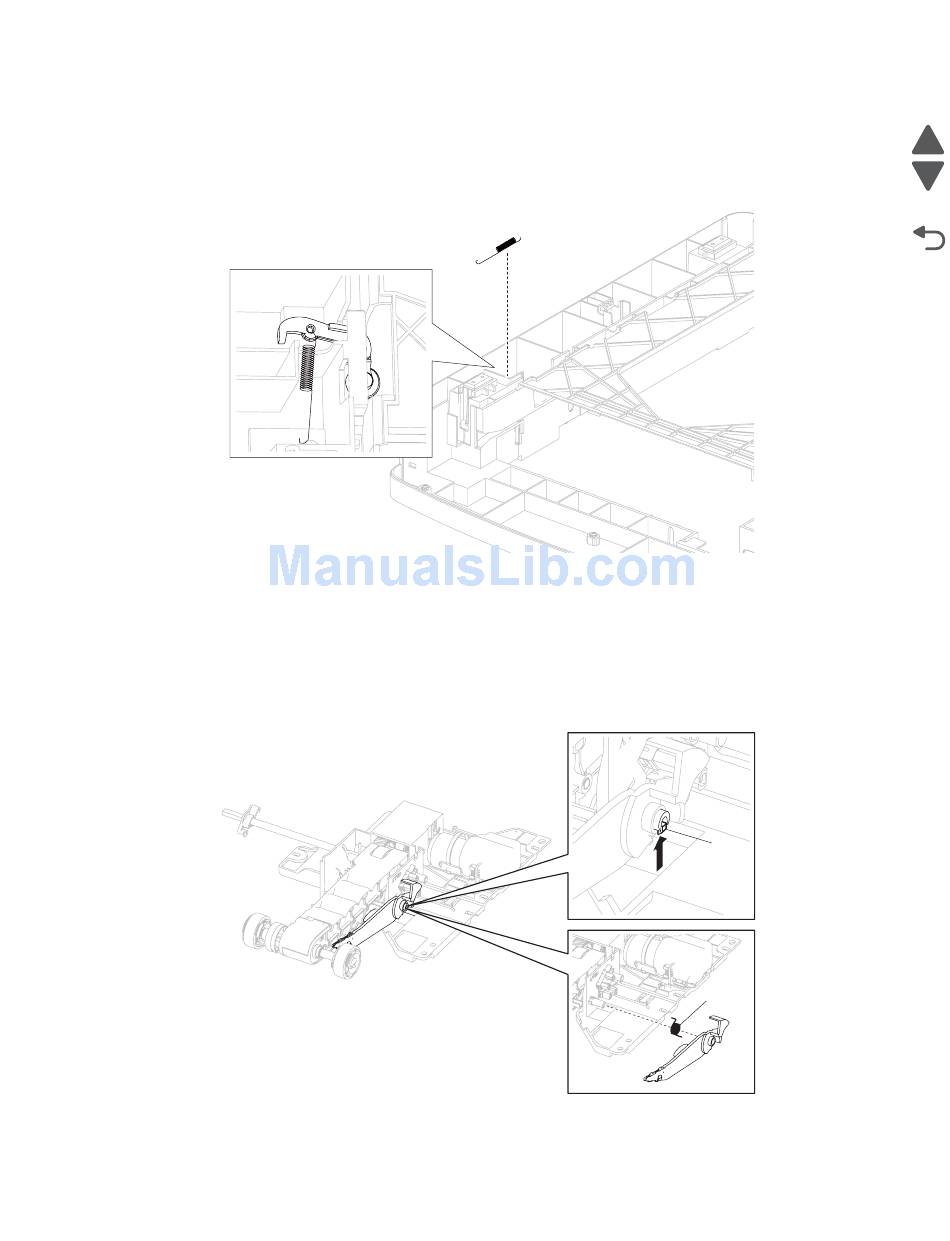

Media tray catch spring removal

1. Remove the 250-sheet frame assembly. Go to
2. Turn the drawer upside down to access the media tray catch spring.
3. Release the media tray catch spring.
Media out actuator removal (models T652 and T654)
1. Remove the 550-sheet pick arm bracket assembly. Go to
removal" on page
2. Release the hook (A) securing the media out actuator with spring to the 550-sheet pick arm bracket
assembly.
3. Detach the spring (B) from the media out actuator.
"250-sheet frame assembly removal" on page
4-108.
"550-sheet pick arm bracket assembly
A
B
