SBC87842 Single Board Computer

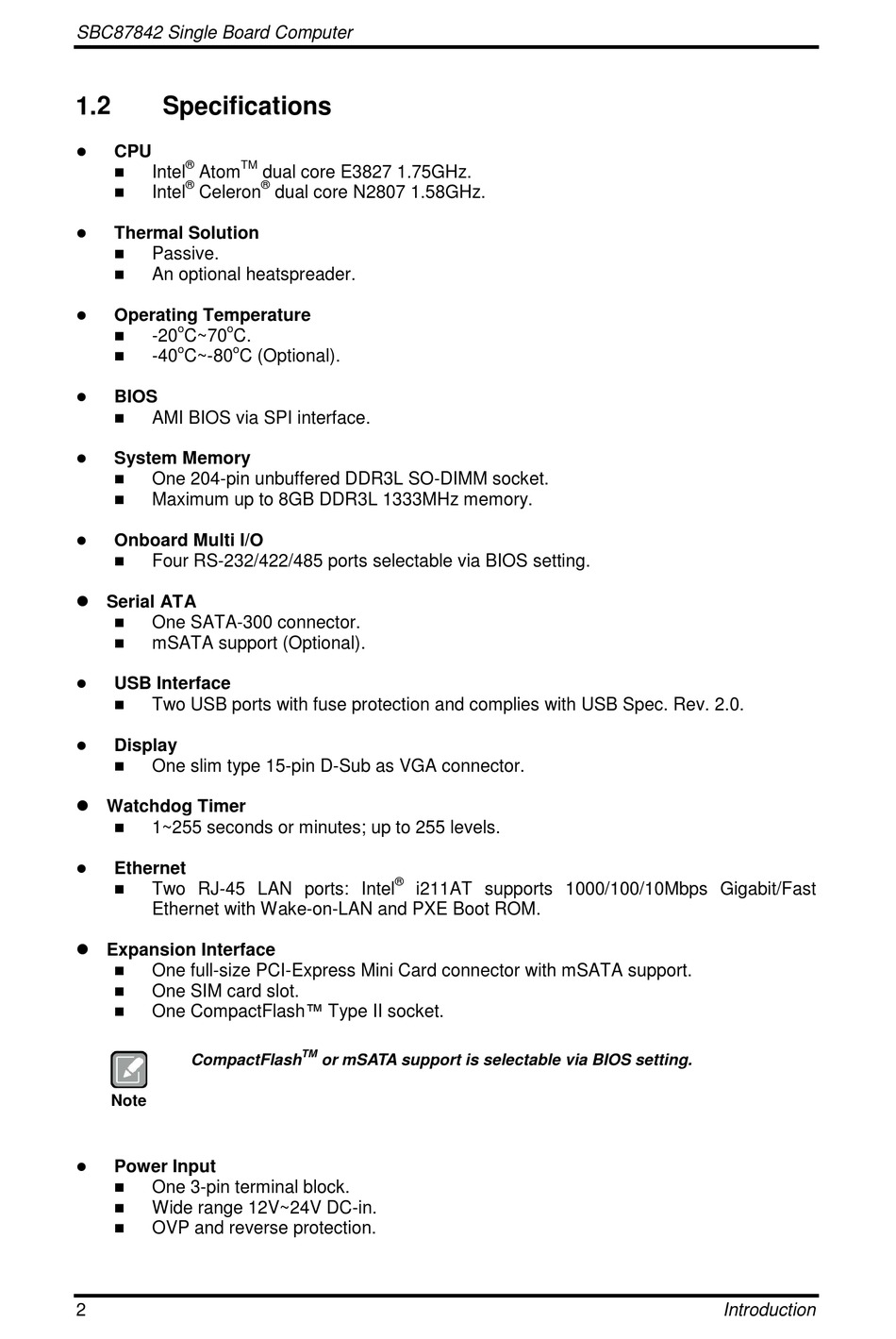

1.2

Specifications

 CPU
® TM
 Intel Atom
®
 Intel Celeron
 Thermal Solution

Passive.
 An optional heatspreader.
 Operating Temperature
o o
 -20 C~70 C.
o o
 -40 C~-80 C (Optional).
 BIOS
 AMI BIOS via SPI interface.
 System Memory
 One 204-pin unbuffered DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1333MHz memory.
 Onboard Multi I/O
 Four RS-232/422/485 ports selectable via BIOS setting.
 Serial ATA
 One SATA-300 connector.
 mSATA support (Optional).
 USB Interface
 Two USB ports with fuse protection and complies with USB Spec. Rev. 2.0.
 Display
 One slim type 15-pin D-Sub as VGA connector.
 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Ethernet
 Two RJ-45 LAN ports: Intel
Ethernet with Wake-on-LAN and PXE Boot ROM.
 Expansion Interface
 One full-size PCI-Express Mini Card connector with mSATA support.
 One SIM card slot.
 One CompactFlash™ Type II socket.
CompactFlash
Note
 Power Input
 One 3-pin terminal block.
 Wide range 12V~24V DC-in.
 OVP and reverse protection.
2
dual core E3827 1.75GHz.
®
dual core N2807 1.58GHz.
®
i211AT supports 1000/100/10Mbps Gigabit/Fast
TM
or mSATA support is selectable via BIOS setting.
Introduction
