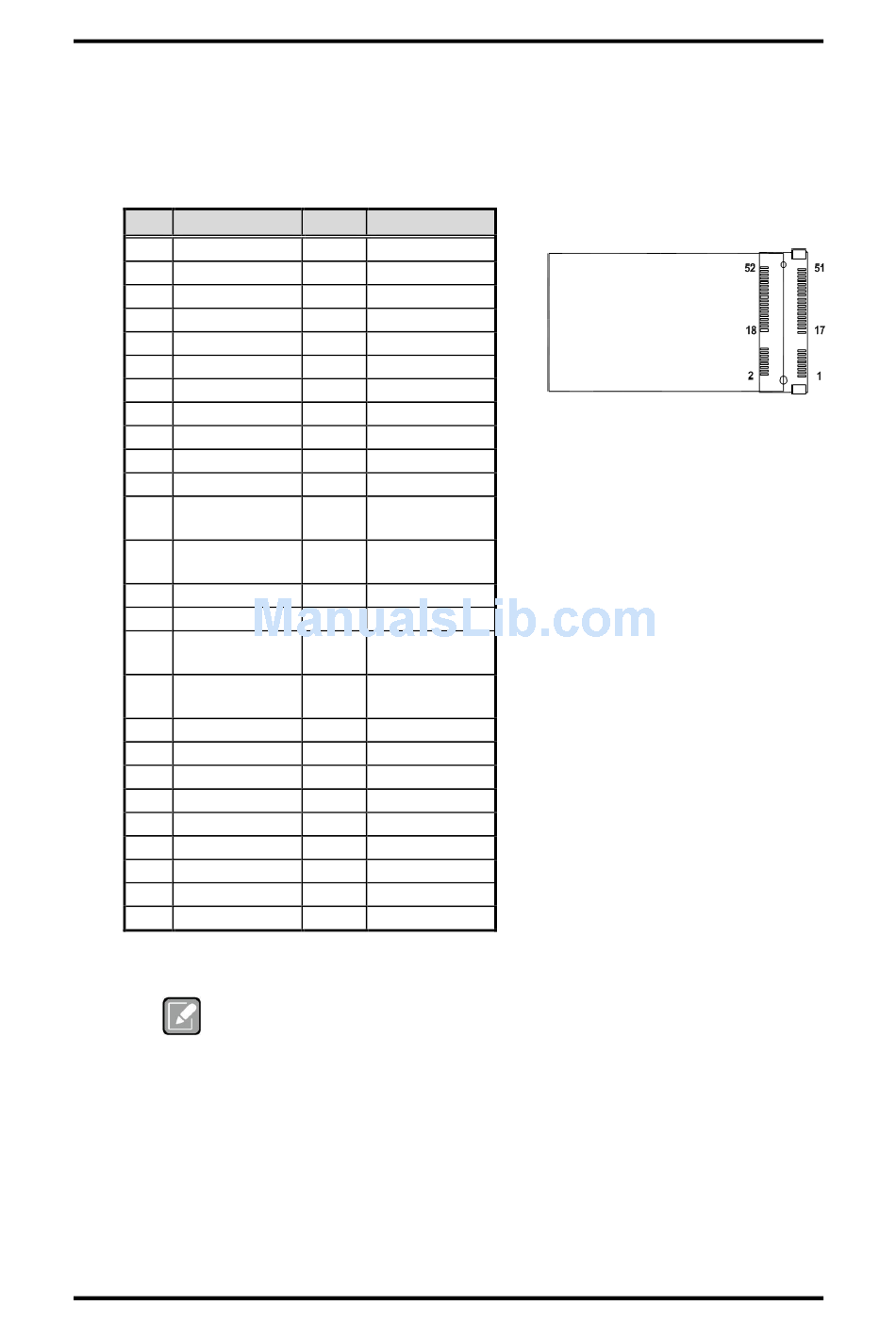

2.4.4 Full-size PCI-Express Mini Card and mSATA Connector
(CN6)
The CN6 is a full-size PCI-Express Mini Card connector applying to either PCI-Express
or USB 2.0 with mSATA support. It also complies with PCI-Express Mini Card Spec.
V1.2.
Pin Signal
1 WAKE#
3 RSVD1
5 RSVD2
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 RSVD3
19 RSVD4
21 GND
PE_RXN0/
23
SATA_RXP1
PE_RXP0/
25
SATA_RXN1
27 GND
29 GND
PE_TXN0/
31
SATA_TXN1
PE_TXP0/
33
SATA_TXP1
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 RSVD5
47 RSVD6
49 RSVD7
51 RSVD8
Note
Board and Pin Assignments
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 SIM_PWR
10 SIM_I/O
12 SIM_CLK
14 SIM_RST
16 SIM_VCC
18 GND
20 RSVD9
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D4-
38 USB_D4+
40 GND
42 RSVD
44 RSVD
46 RSVD
48 +1.5V
50 GND
52 +3.3VSB
Please refer to section 4.4 to select CompactFlash
SBC87842 Single Board Computer
TM
or mSATA..
11
