SBC87842 Single Board Computer

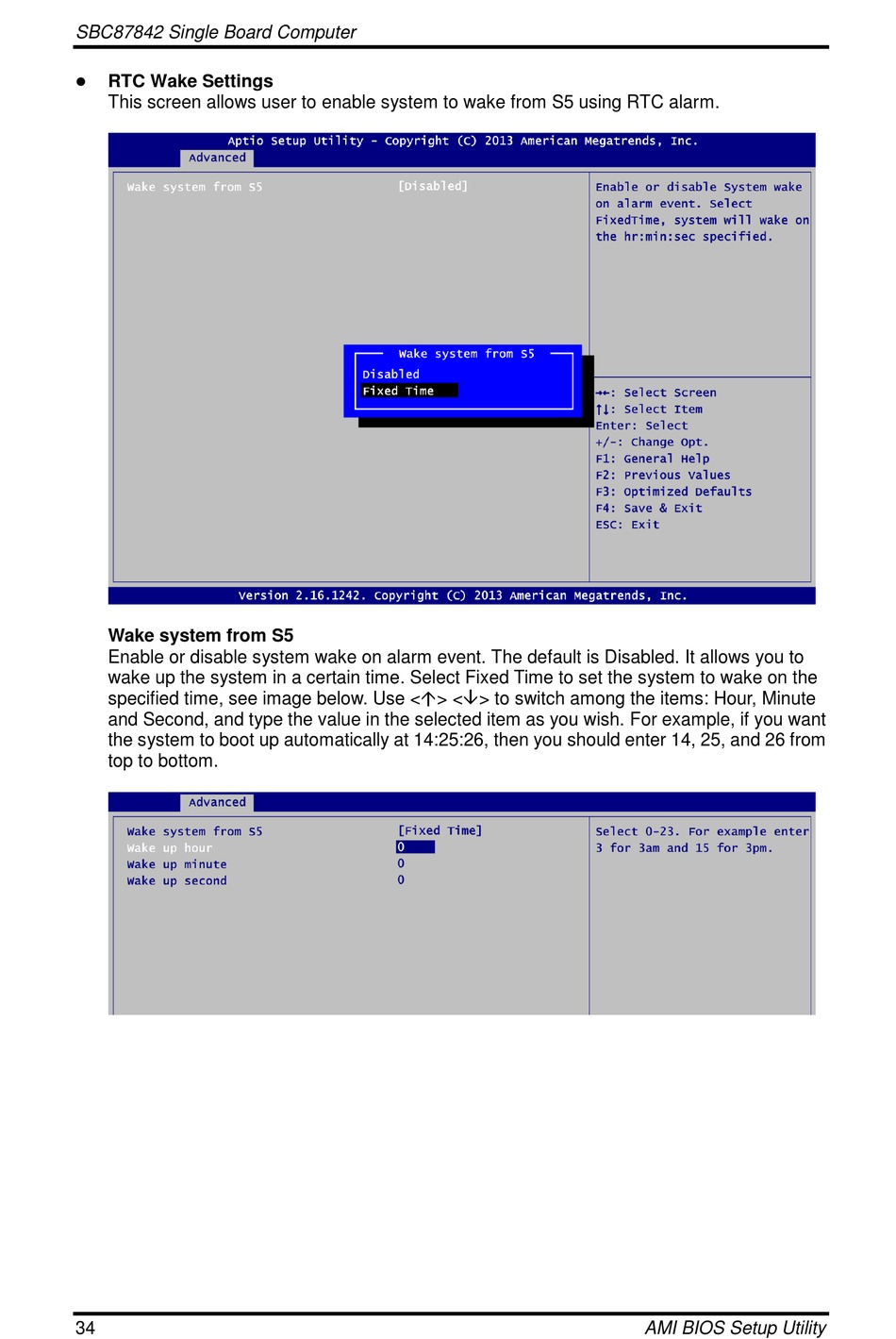

 RTC Wake Settings
This screen allows user to enable system to wake from S5 using RTC alarm.
Wake system from S5
Enable or disable system wake on alarm event. The default is Disabled. It allows you to
wake up the system in a certain time. Select Fixed Time to set the system to wake on the
specified time, see image below. Use <> <> to switch among the items: Hour, Minute
and Second, and type the value in the selected item as you wish. For example, if you want
the system to boot up automatically at 14:25:26, then you should enter 14, 25, and 26 from
top to bottom.
34 AMI BIOS Setup Utility
