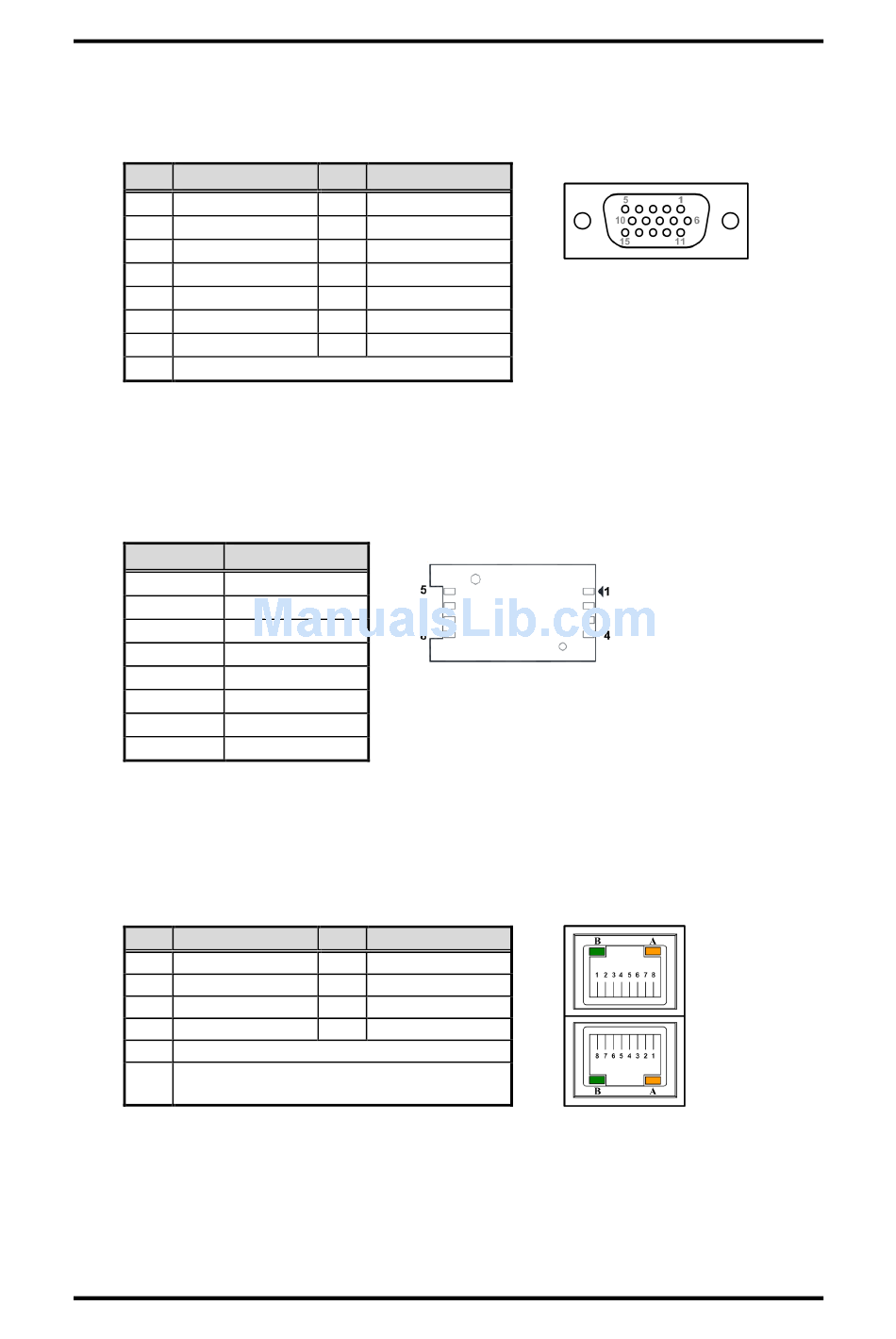

VGA Connector (CN7)

This is a 15-pin D-Sub connector which is commonly used for VGA display. This VGA
interface configuration can be configured via software utility.
Pin Signal
1 Red
3 Blue
5 GND
7 GND
9 VCC
11 N.C.
13 Horizontal Sync
15 DDC CLK
2.4.6

SIM Card Slot (CN9)

The CN9 is for inserting SIM Card. It is mainly used in 3G wireless network application.
In order to work properly, the SIM Card must be used together with 3G module which is
inserted to CN6.
Pin Signal
1 PWR
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
2.4.7

Ethernet Port (CN10)

The board has two RJ-45 connectors. Ethernet connection can be established by
plugging one end of the Ethernet cable into this RJ-45 connector and the other end
(phone jack) to a 1000/100/10-Base-T hub.
Pin Signal
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI1-
A Active LED (Yellow)
100 LAN LED (Green) / 1000 LAN LED
B
(Orange)
12
Pin Signal
2 Green
4 N.C.
6 DETECT
8 GND
10 GND
12 DDC DATA
14 Vertical Sync
Pin Signal
5 MDI2+
6 MDI2-
7 MDI3+
8 MDI3-
Board and Pin Assignments
