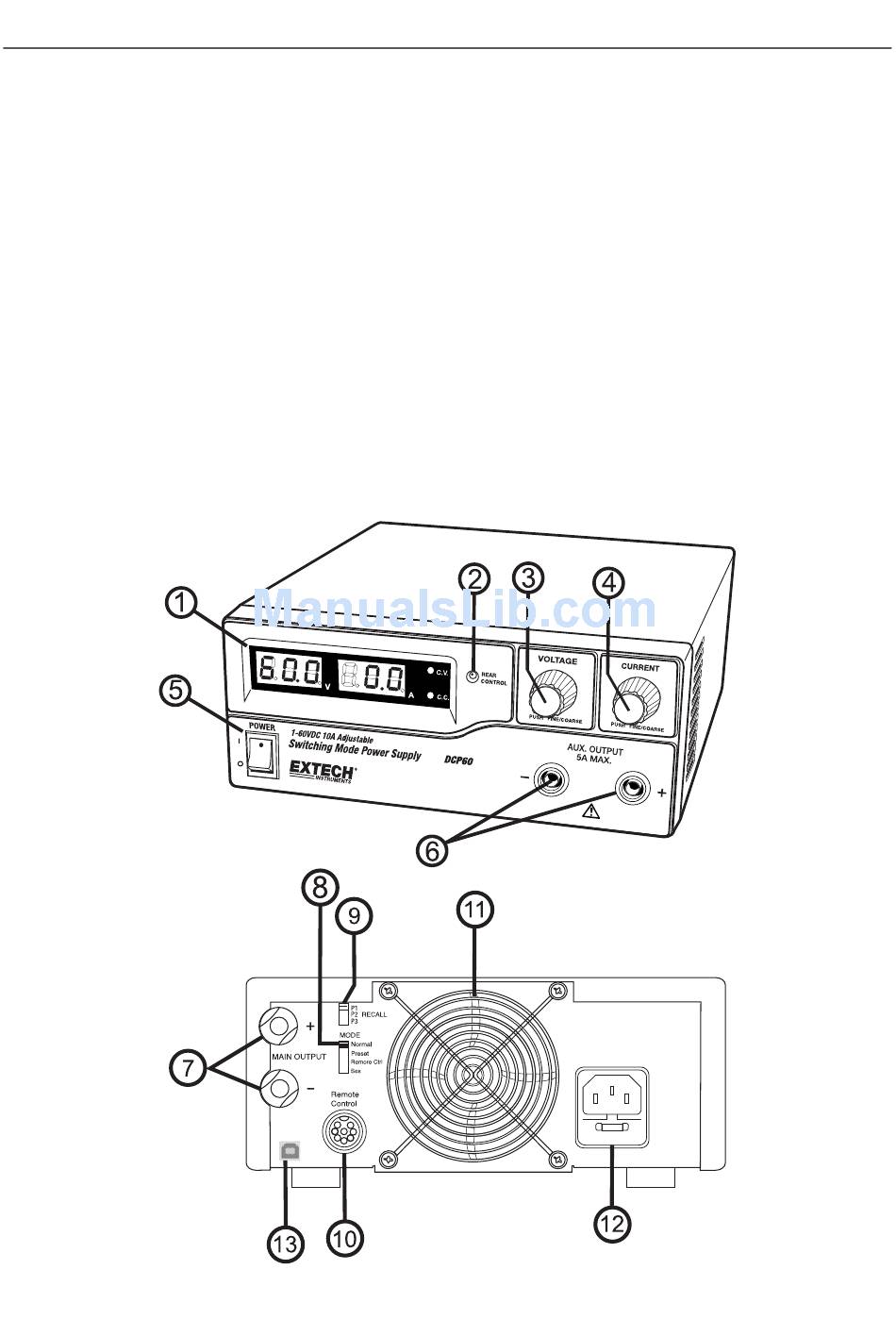

Power Supply Description
FRONT PANEL
(1) LED panel meter display with CC/CV Indictor
(2) Rear Control Indicator (lights when using Preset/ Remote Control/ Set mode)
(3) Output Voltage Control Knob (controls both the main and auxiliary output voltage)
(4) Output Current Control Knob (controls both the main and auxiliary output current limit)
(5) Power ON/OFF Switch
(6) Aux. output terminal (max 5A); The total rated current (Aux.+Main) is 10A
REAR PANEL
(7) Haupt‐Ausgangsklemme (max. 10 A). Der Gesamt‐Nennstrom (Aux+Haupt) beträgt 10 A
(8) Mode Selection Switch (Normal, Preset, Remote Control, Set Mode)
(9) Abruf‐Wahlschalter – Auswahlschalter der eingestellten Spannung
(10) Remote Control Terminal
(11) Cooling Fan Air Intake Grille
(12) AC Input Plug
(13) USB port
4
DCP60‐EU‐DE v1.4 9/13
