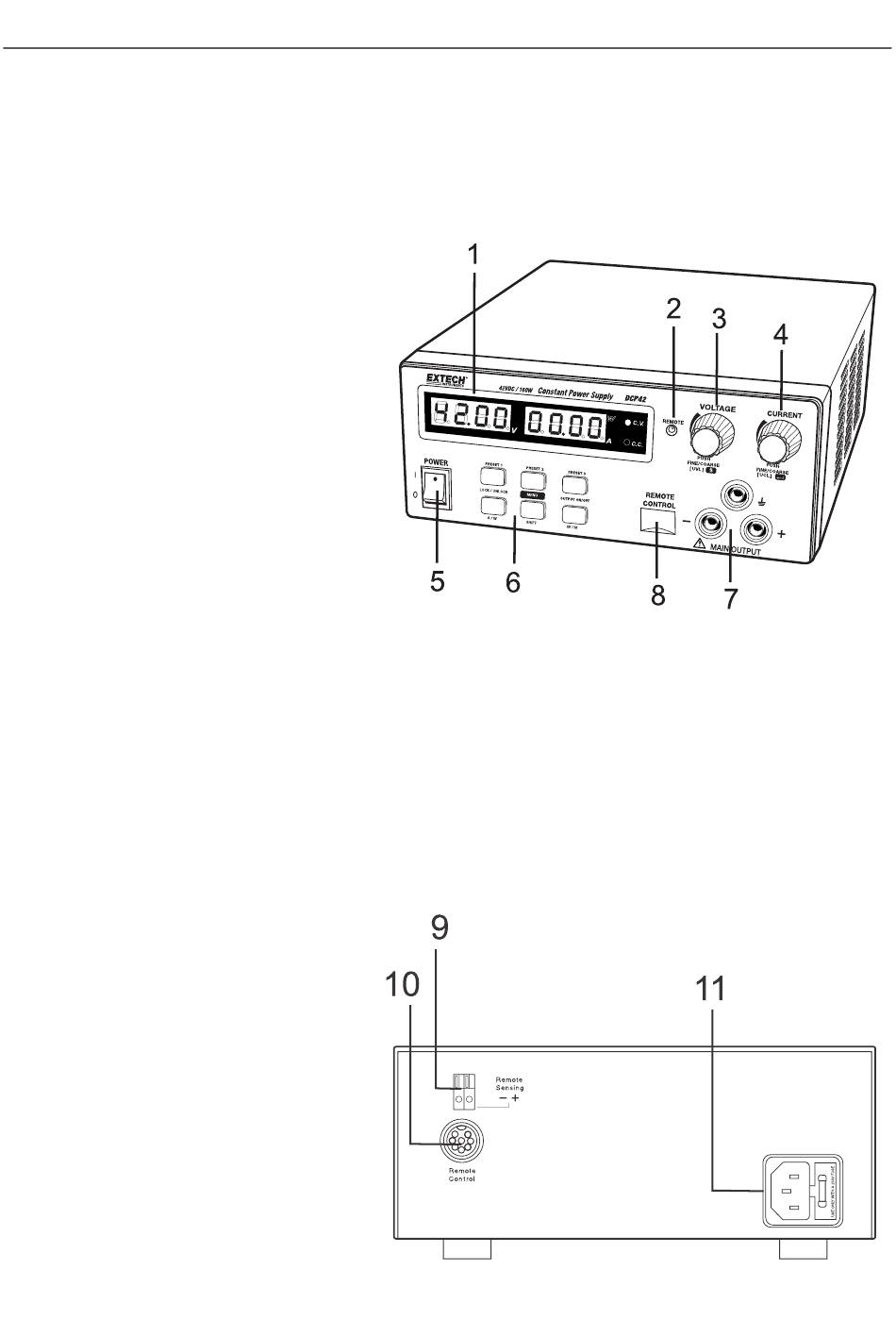

3. Power Supply Description
(1) LED panel meter display with CC/CV/W Indictor
(2) Remote Control Indicator (Remote Control/ USB mode)
(3) Output Voltage Control Knob
(4) Output Current Control Knob
(5) Power ON/OFF Switch
(6) 6 button Keypad (with illumination):
‐ Preset Keyd 1, 2 & 3
‐ Menu Key (Shift Key)
‐ Lock/ Unlock Key (A/W meter Key)
‐ Output ON/OFF (ΔV/Δt Key)
(7) Output Safety Jacks (Rated 10A)
(8) USB Remote Control port (For access to computer to run cyclical operation with programmable
voltage, current, period time and cycle)
(9) Remote Sensing Terminal
Warning! Shorting the remote sensing terminal or connecting the sensing terminal with the
polarity reversed will damage the power supply
(10) Remote Control Terminal
(11) AC Inlet socket (with fuse holder)
