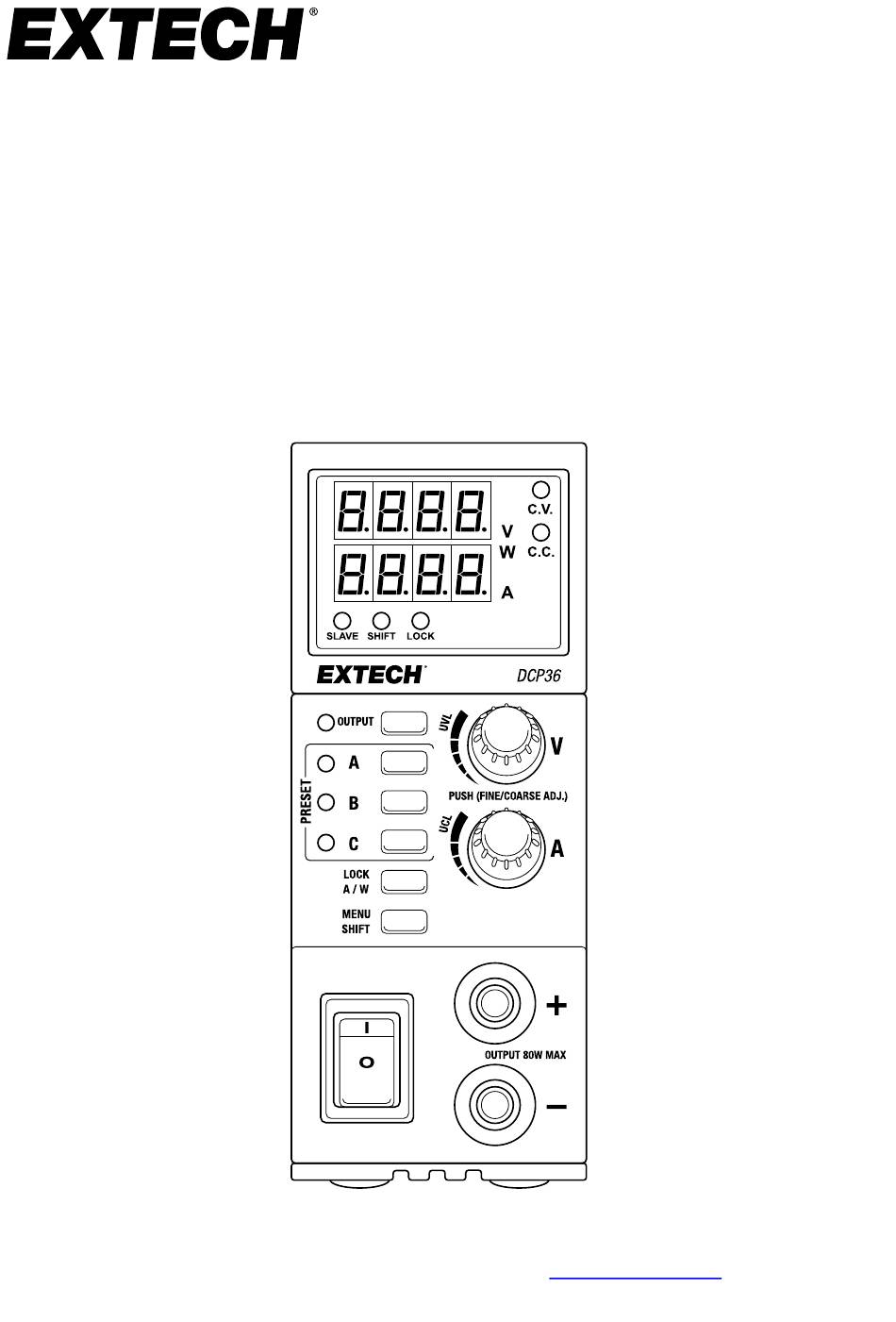

- Page 1 USER MANUAL Model DCP36 80W Switching DC Power Supply User Manual Translations available at www.extech.com...

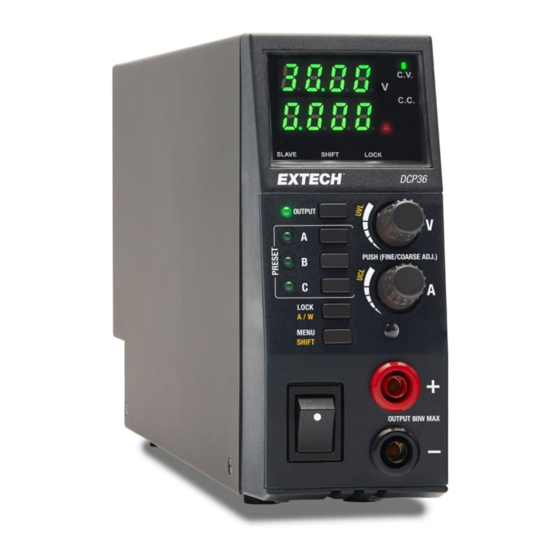

- Page 2 Master/Slave capability for up to 30 units in parallel connection. The DCP36 is perfect for benchwork, field service, and hobbyists. The DCP36 is shipped with the following accessories: AC power cord, RJ11 cable, alligator clip test leads, and an RJ11 terminator plug.
-
Page 3: Power Supply Description
Constant Voltage mode (C.V. indicator) The output voltage is kept constant at the set voltage. The DCP36 remains in CV mode if the load current is lower than the set current limit, otherwise it will switch to CC mode. Constant Current mode (C.C. indicator) When the load is higher than the set current limit of the set voltage in CV mode, the Constant Current mode is active. -
Page 4: Button Descriptions
Lower 4-digit LED row is active as an amp-meter. The value is showing output in Amperes. SLAVE indicator (green) The DCP36 is in the slave mode and controlled by a master unit. The voltage and current setting of slave units are controlled by the master unit. The buttons and knobs of slave units are locked. -
Page 5: Programming Menu
4. Press SHIFT to confirm the setting and to exit the mode. If the new value is lower than the output setting, the DCP36 will display an error (Erro). In this case, reduce the output setting to a value lower than the UVL or UCL value. -
Page 6: Front Panel Lock-Out
Note: The front and rear output terminals are connected internally. Output Presets (A, B, and C) The DCP36 offers three Voltage/Current output preset configurations (A, B, and C) for quick recall. Select a preset by pressing the A, B, or C button, the corresponding preset LED will light. -
Page 7: Master/Slave Operation
7. Switch ON the Master first and set the desired output, then switch ON the Slave units. Each Slave unit’s LED indicator should be lit if the wiring is configured correctly. 8. All output voltages and currents are now controlled by the Master unit. DCP36-en-GB_V1.1 5/19... -
Page 8: Specifications
Dimensions 330 x 127 x 53.5mm (13 x 5 x 2") Depth x Height x Width Weight 1.9 kg (4.2lbs.) Specifications are subject to change and based on an operating temperature of 25 C and Pressure of 0.1Mpa DCP36-en-GB_V1.1 5/19... -
Page 9: Troubleshooting
Do not increase the current setting higher than the Upper Current Limit. Reset and increase the Upper Current Limit or decrease the output current setting. Copyright © 2019 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com DCP36-en-GB_V1.1 5/19...
