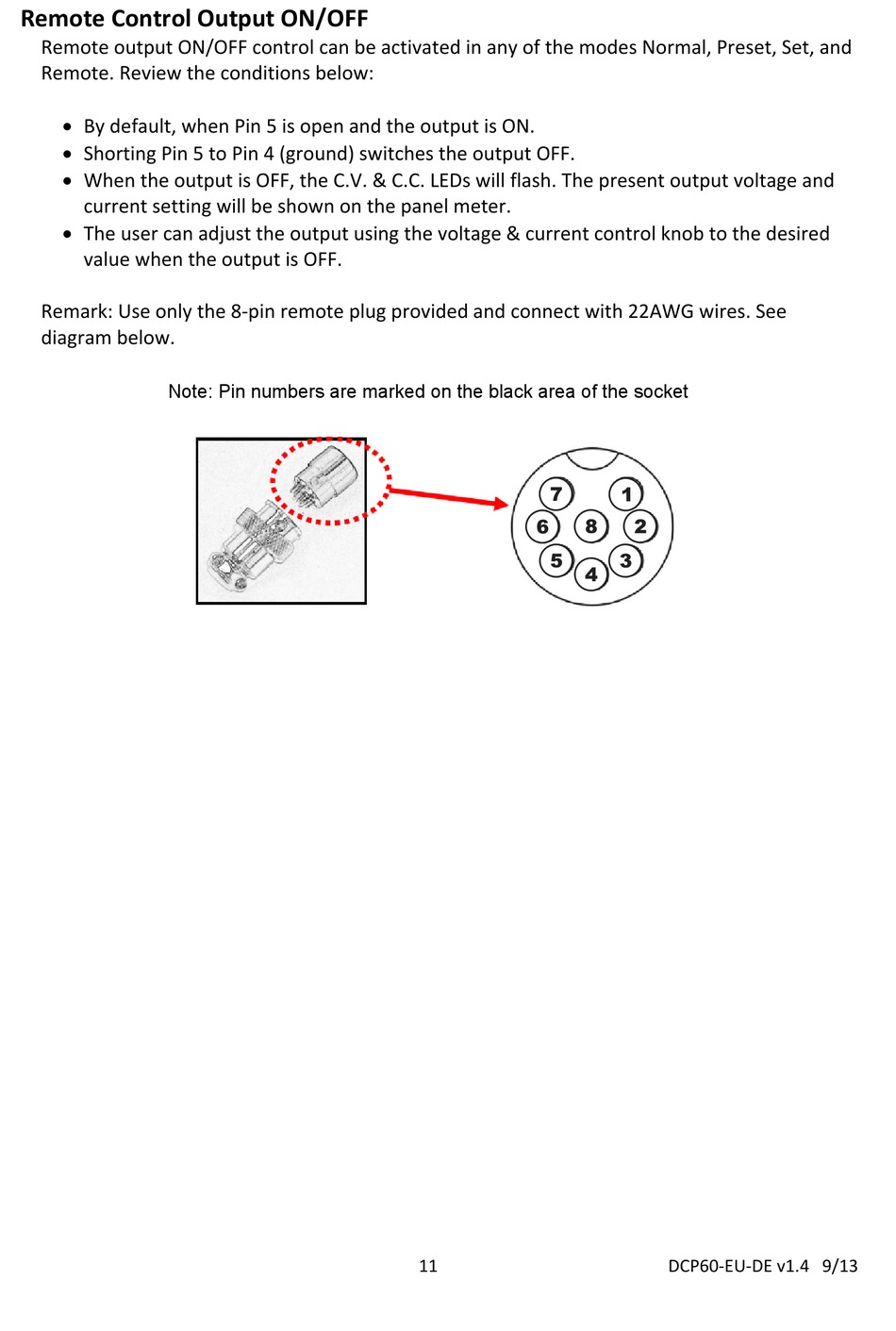

Remote Control Output ON/OFF

Remote output ON/OFF control can be activated in any of the modes Normal, Preset, Set, and

Remote. Review the conditions below:

 By default, when Pin 5 is open and the output is ON.

 Shorting Pin 5 to Pin 4 (ground) switches the output OFF.

 When the output is OFF, the C.V. & C.C. LEDs will flash. The present output voltage and

current setting will be shown on the panel meter.

 The user can adjust the output using the voltage & current control knob to the desired

value when the output is OFF.

Remark: Use only the 8‐pin remote plug provided and connect with 22AWG wires. See

diagram below.

Note: Pin numbers are marked on the black area of the socket

DCP60‐EU‐DE v1.4 9/13
