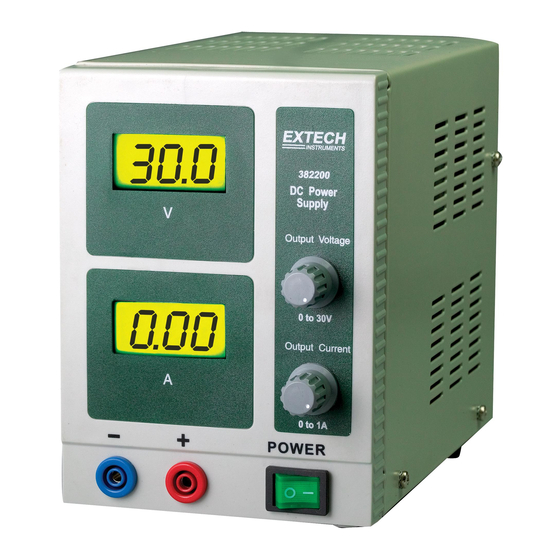

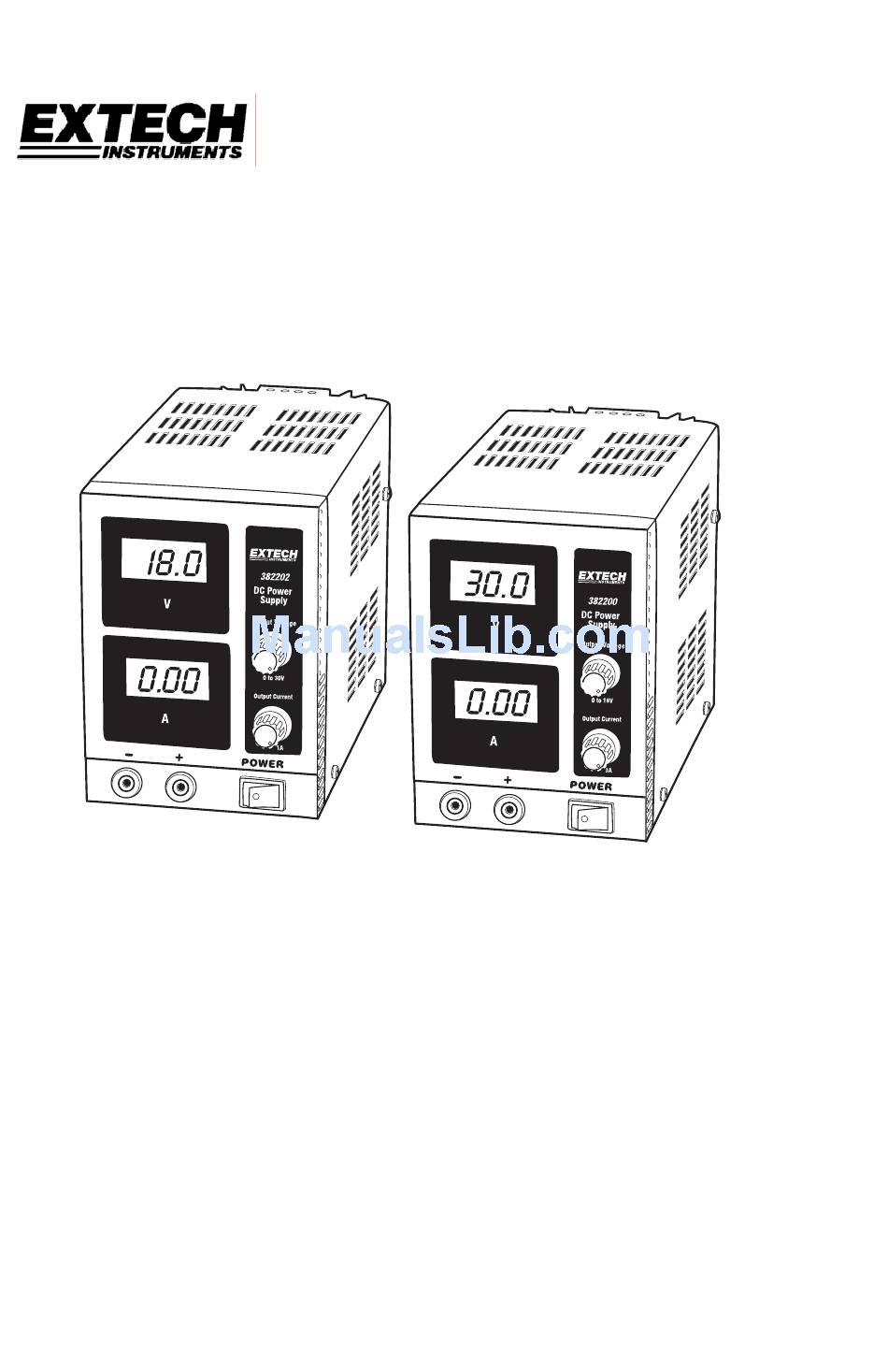

- Page 1 User's Manual DC Regulated Power Supplies Models 382200 (1Amp) and 382202 (3Amp)
-
Page 2: Specifications
9.4 x 4.25 x 6" (240 x 108 x 154mm) (WxHxD) Weight 4.4lbs. (2 kg) 6.6lbs. (3kg) Meter Description Voltage display Current display Negative (-) output terminal Positive (+) output terminal Illuminated On/Off switch Current adjustment Voltage adjustment 382200 and 382202 V3.1 07/06... - Page 3 BEFORE applying power to the instruments. Do not connect to a voltage source that is greater. CAUTION: Limit full load operation (>25watts for the 382200 and >45watts for the 382202) to 15 minutes continuous operation. Always allow a cool down period after full load operation.
- Page 4 For the latest version of this User’s Guide, Software updates, and other up-to-the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 Copyright © 2006 Extech Instruments Corporation All rights reserved including the right of reproduction in whole or in part in any form.
