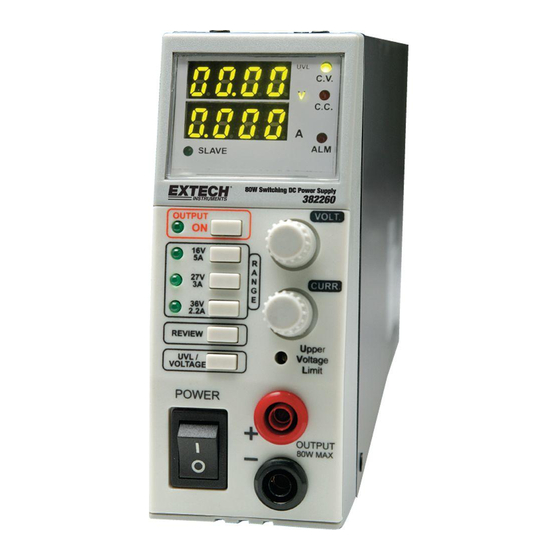

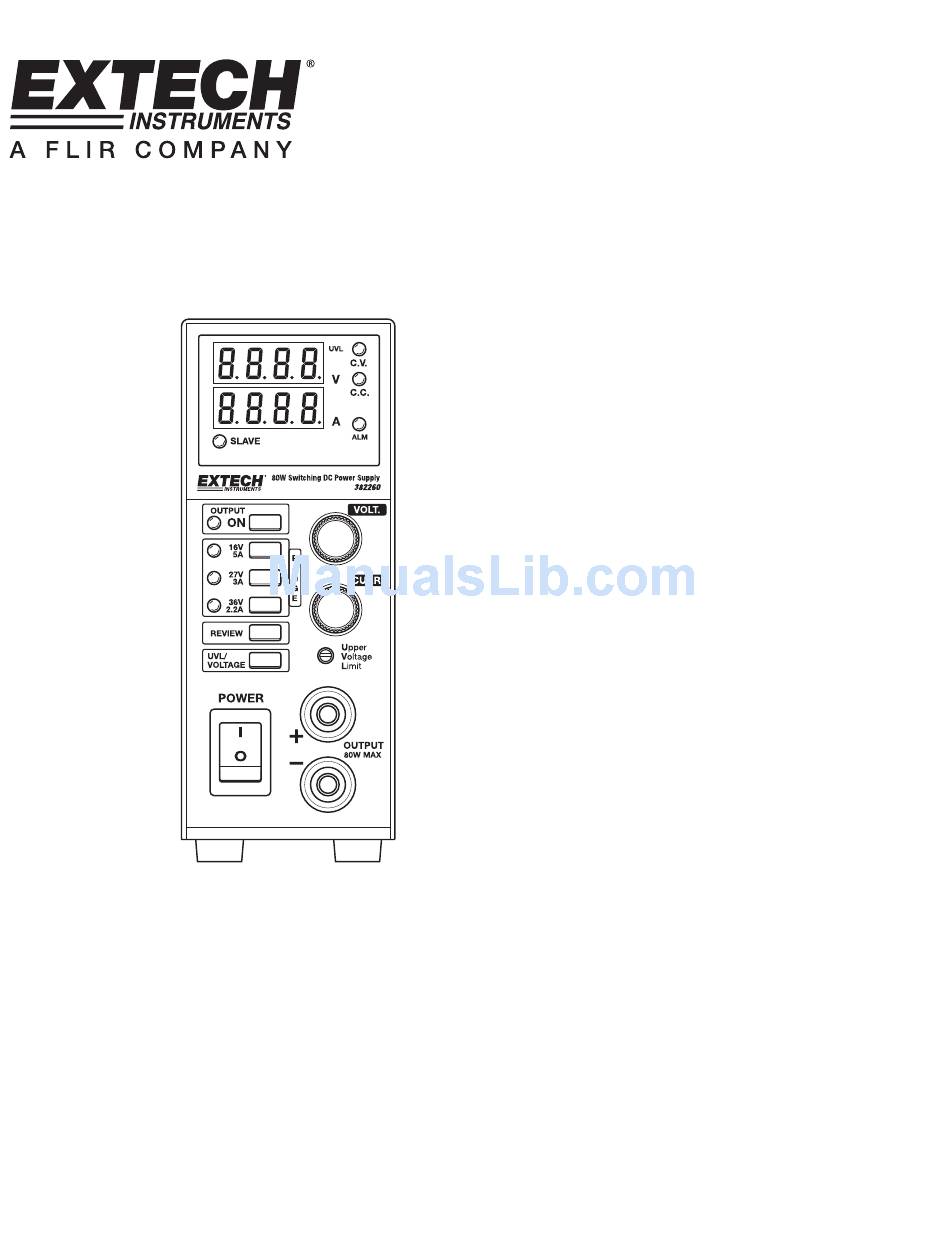

- Page 1 User's Guide Model 382260 80W 3-in-1 Switching DC Power Supply...
- Page 2 Congratulations on your purchase of the Extech 80W 3-in-1 Switching DC Power Supply. The Model 382260 has three output ranges that perform like 3 power supplies in one. It can be used for many applications including bench testing, field service, hobby and telecommunication equipment use.
-
Page 3: Power Supply Description
12. Constant Current indicator 13. Overvoltage or Temperature alarm 14. Slave indicator 15. LED Voltage Display 16. LED Current Display 17. Master/Slave switch 18. Master/Slave control terminals 19. Remote Sensing terminals 20. Rear Output terminals 21. AC power socket 382260 V1.3 10/08... -
Page 4: Stand-Alone Operation
Terminal to the load point, the reading at the output terminal and load point is the same. Caution: Observe correct polarity and never short the Remote Sensing terminal Connect the load to the power supply. Connect the load to the Remote Sensing Terminal. Note: Always disconnect the Remote Sensing terminal connections first. 382260 V1.3 10/08... -
Page 5: Master/Slave Operation
Master/Slave Operation Two or more Model 382260 Power Supplies can be connected in parallel to increase output current to the sum of the connected supplies. In this mode of operation, the Master power supply will control all of the voltage and current settings of the Slave units. -
Page 6: Specifications
4.2lbs. (1.9 kg) Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. -
Page 7: Troubleshooting
Extech offers repair and calibration services for the products we sell. Extech also provides NIST certification for most products. Call the Customer Service Department for information on calibration services available for this product. Extech recommends that annual calibrations be performed to verify meter performance and accuracy. 382260 V1.3 10/08... - Page 8 For the latest version of this User’s Guide, Software updates, and other up-to-the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 Copyright © 2007 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
