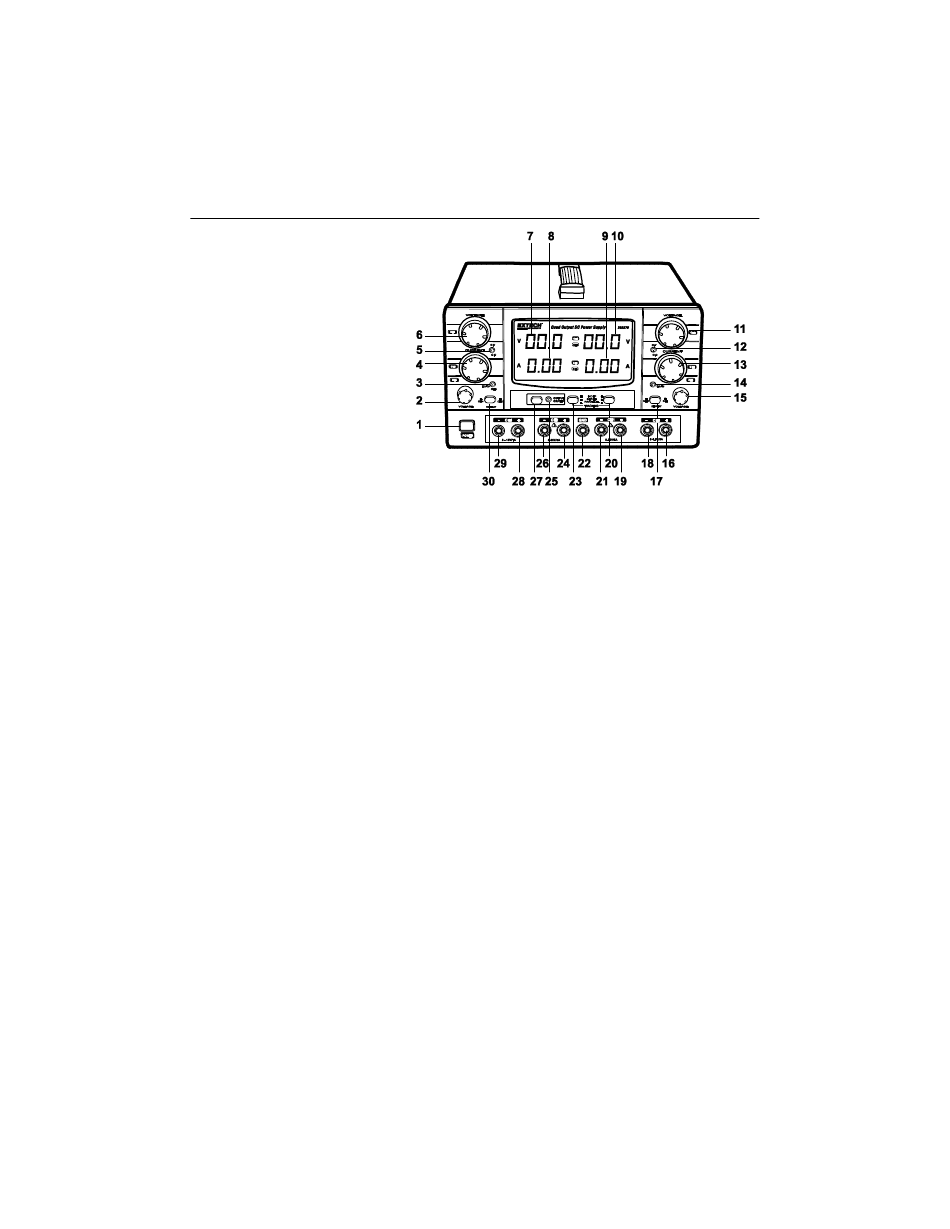

Power Supply Description

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
Find Quality Products Online at:
POWER button
Channel 4 Voltage adjustment
Channel 4 overload status LED
Channel 2 Current adjust knob
Constant Current / Voltage status
LED for CH 4
Channel 2 Voltage adjust knob
Voltage output display (CH 2/4)
Current output display (CH 2/4)
Current output display (CH 1/3)
Voltage output display (CH 1/3)
Channel 1 voltage output adjust knob
Constant Voltage / Current status
LED for Channel 1
Current output adjust knob for Channel 1
Channel 4 overload status LED
Voltage output adjust knob for Channel 3
Positive terminal CH 3
CH1 / CH 3 display select button
Negative terminal CH 3
Positive terminal CH 1
SERIES / PARALLEL / INDEPENDENT tracking select button
Negative terminal CH 1
GND terminal
SERIES / PARALLEL / INDEPENDENT tracking select button
Positive terminal CH 2
Output ON-OFF status LED
Negative terminal CH 2
Output ON-OFF button
Positive terminal CH 4
Negative terminal CH 4
CH2 / CH 4 display select button
