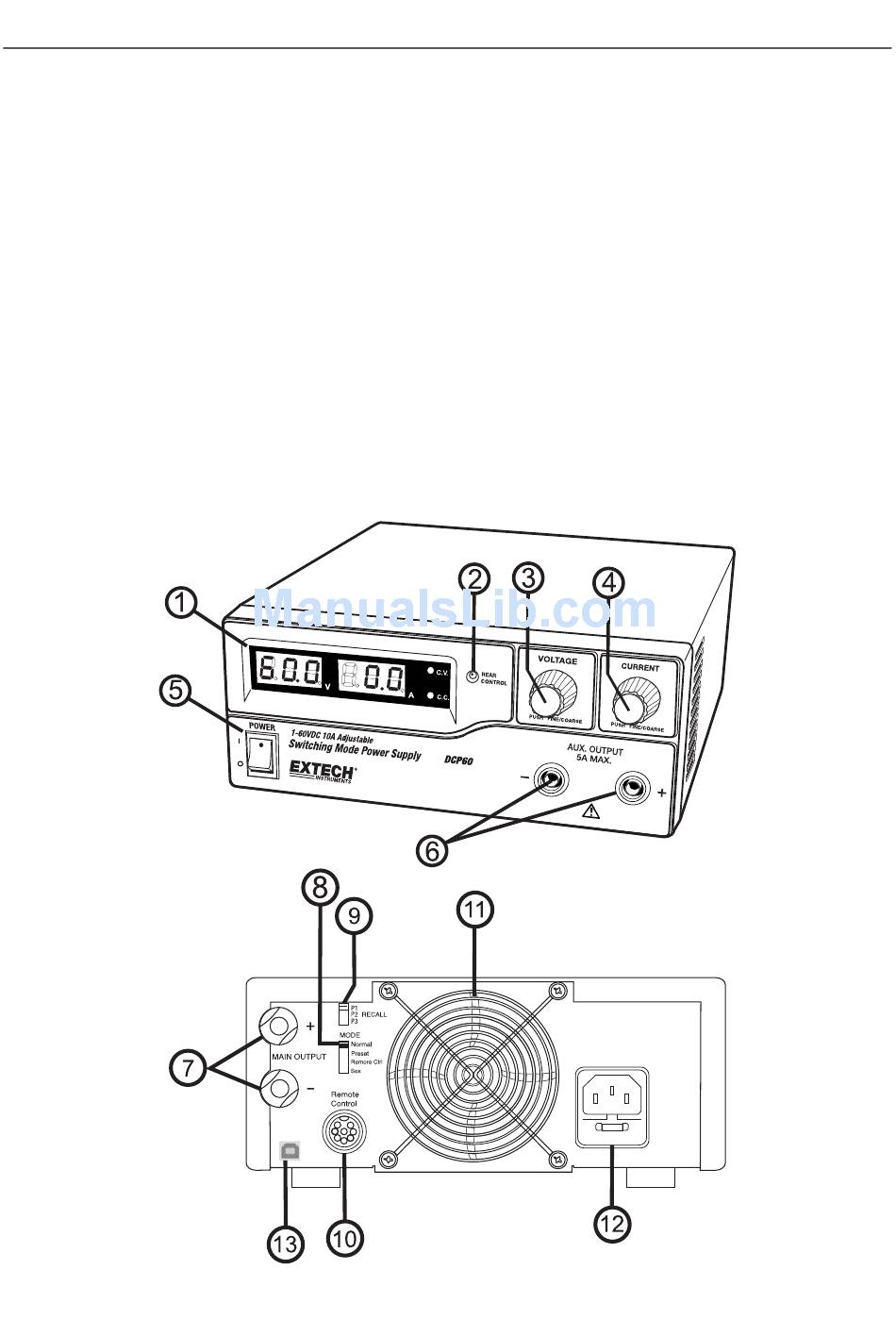

Power Supply Description
FRONT PANEL
(1) LED panel meter display with CC/CV Indictor
(2) Rear Control Indicator (lights when using Preset/ Remote Control/ Set mode)
(3) Output Voltage Control Knob (controls both the main and auxiliary output voltage)
(4) Output Current Control Knob (controls both the main and auxiliary output current limit)
(5) Power ON/OFF Switch
(6) Aux. output terminal (max 5A); The total rated current (Aux.+Main) is 10A
REAR PANEL
(7) Main Output Terminal (Rated for 10A); The total rated current (Aux.+Main) is 10A
(8) Mode Selection Switch (Normal, Preset, Remote Control, Set Modes)
(9) Recall – Preset Voltage Selection Switch
(10) Remote Control Terminal
(11) Cooling Fan Air Intake Grille
(12) AC Input Plug
(13) USB port
4
DCP60‐EU‐EN V1.4 9/13
