Power Supply Description

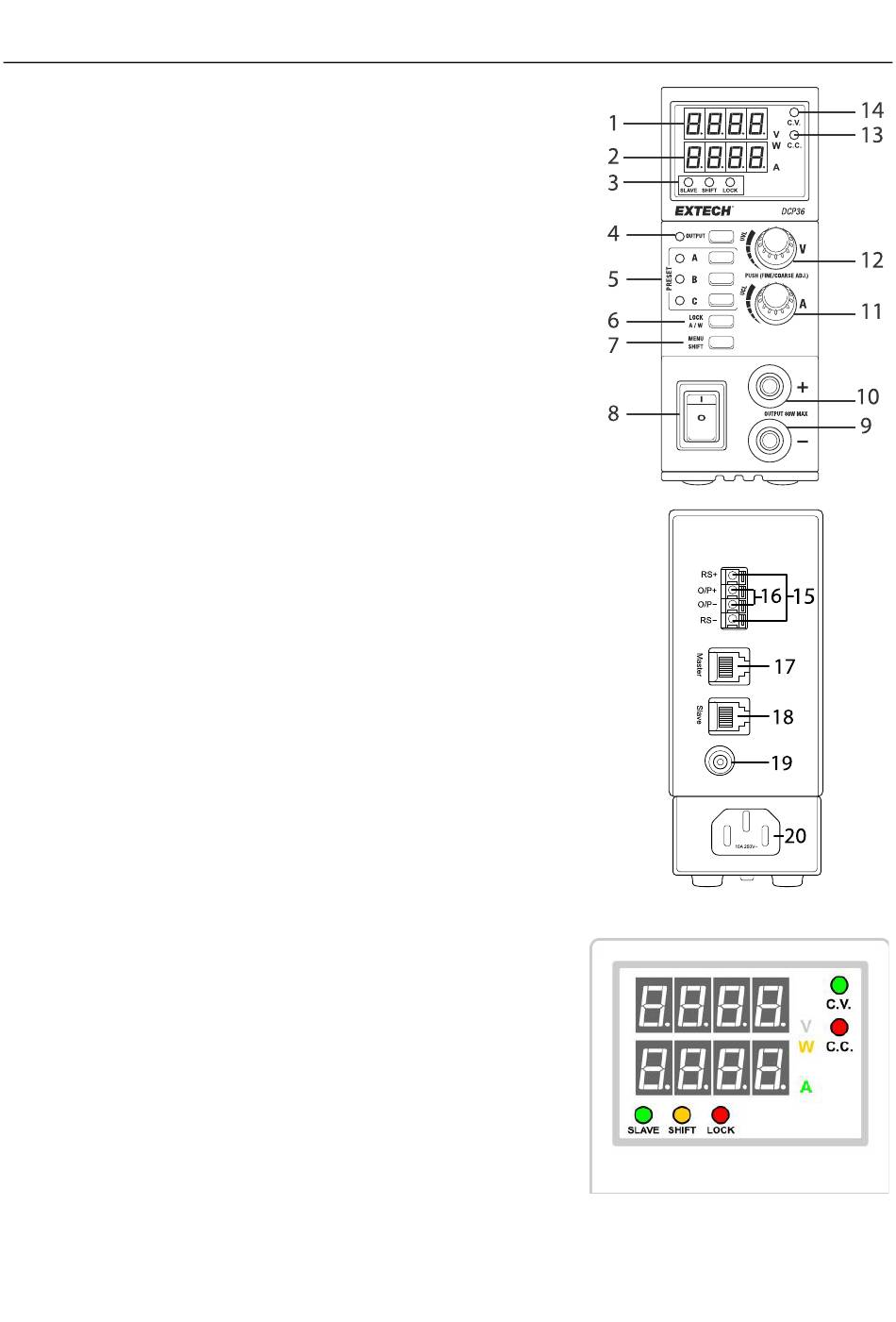

Front and Back Descriptions
1. Output Voltage Display
2. Output Current or Power Display
3. SLAVE-SHIFT-LOCK function indicators
4. Output ON-OFF button and indicator
5. Output preset selection buttons and indicators
6. LOCK and Amp/Watt-meter button
7. MENU and SHIFT button
8. Power ON-OFF switch
9. Output terminal (negative)
10. Output terminal (positive)
11. Current output adjustment
12. Voltage output adjustment
13. Constant Current indicator
14. Constant Voltage indicator
15. Remote Sensing (RS) terminals
16. Alternate output (O/P) terminals
17. Master RJ11 jack
18. Slave RJ11 jack
19. Earth Ground terminal
20. AC power jack
Note that there is an additional RJ11 jack on the back of the unit
labeled 'Reserved' that is unused in this model

Display Descriptions

Constant Voltage mode (C.V. indicator)
The output voltage is kept constant at the set voltage. The
DCP36 remains in CV mode if the load current is lower than
the set current limit, otherwise it will switch to CC mode.
Constant Current mode (C.C. indicator)
When the load is higher than the set current limit of the set
voltage in CV mode, the Constant Current mode is active.
The output current is kept constant at the set current level
provided that the loading is sufficiently large to draw
current equal to or larger than the set current, otherwise it
will switch to the CV mode.
