Power Supply Description

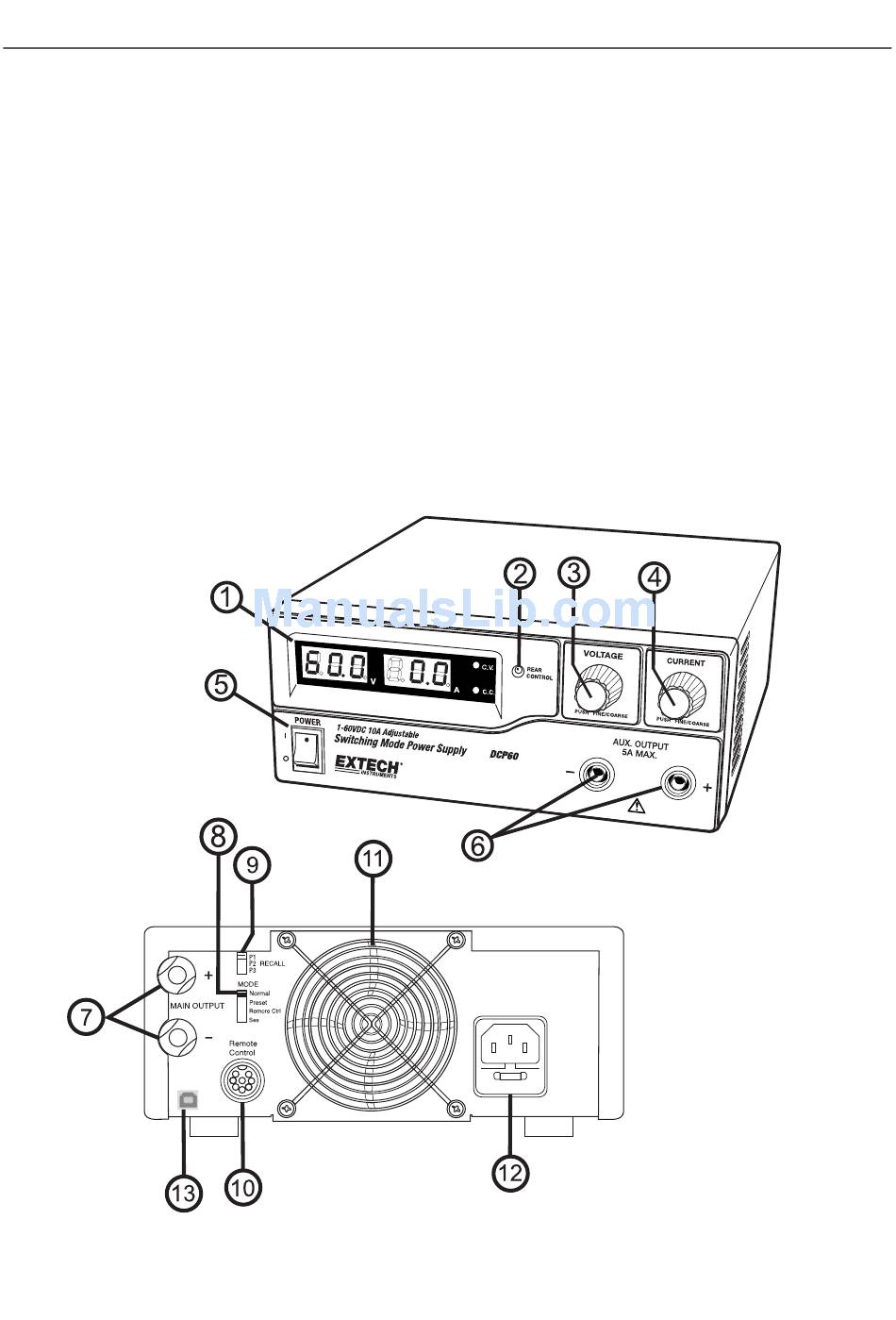

FRONT PANEL
(1) LED panel meter display with CC/CV Indictor
(2) Rear Control Indicator (lights when using Preset/ Remote Control/ Set mode)
(3) Output Voltage Control Knob (controls both the main and auxiliary output voltage)
(4) Output Current Control Knob (controls both the main and auxiliary output current limit)
(5) Power ON/OFF Switch
(6) Aux. output terminal (max 5A); The total rated current (Aux.+Main) is 10A
REAR PANEL
(7) Principale terminale d'uscita (nominale per 10A); la corrente nominale totale (Aux. +
principale) è 10A
(8) Mode Selection Switch (Normal, Preset, Remote Control, Set Mode)
(9) Richiama – interruttore di selezione tensione preimpostata
(10) Remote Control Terminal
(11) Cooling Fan Air Intake Grille
(12) AC Input Plug
(13) USB port
4
DCP60‐EU‐IT v1.4 9/13
