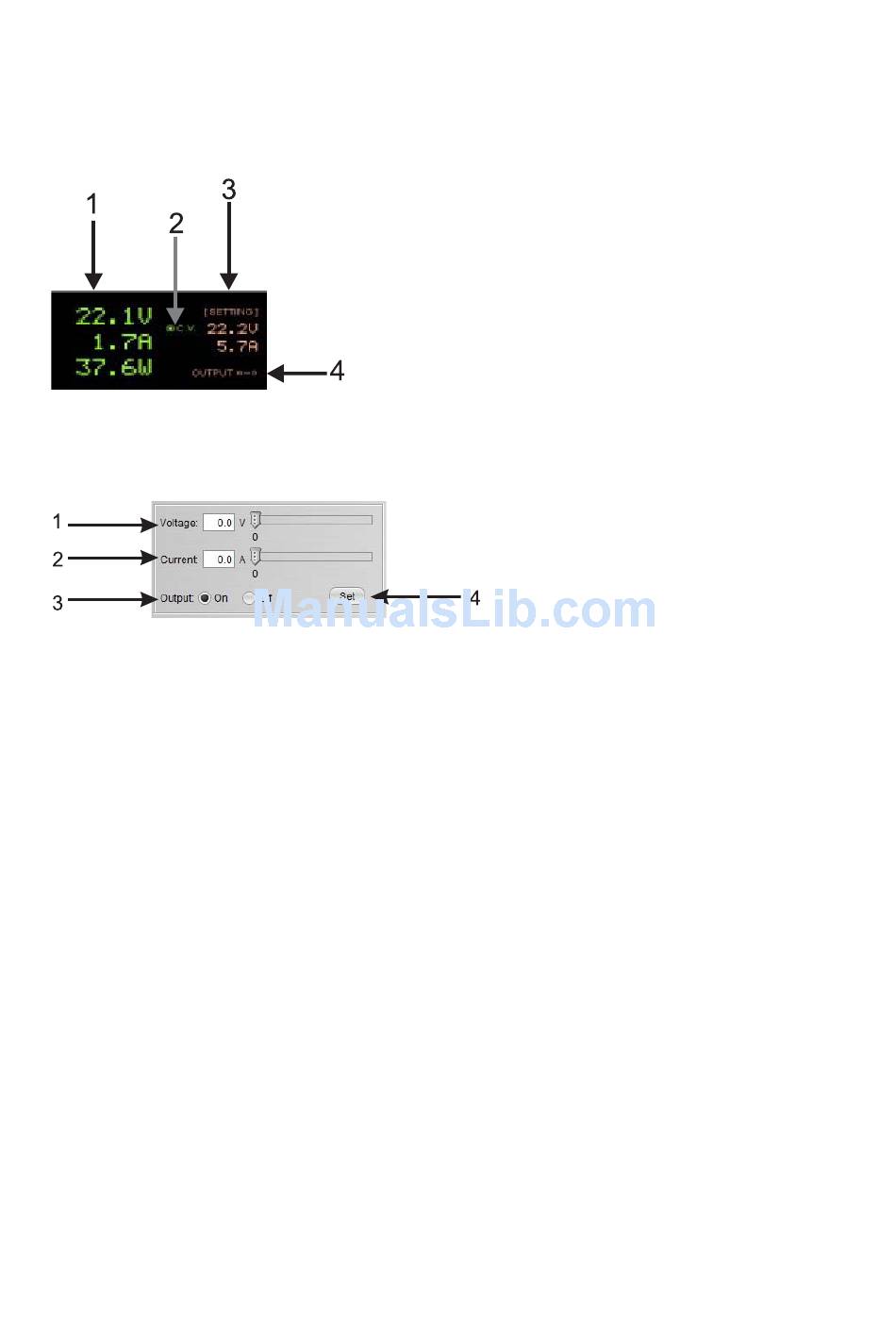

Display Panel
1.
Actual Output Voltage, Current, and Power values
2.
C.V./ C.C. Mode status
3.
Setting values
4.
Output ON/OFF status
Output Setting Panel
1.
Voltage Output setting
2.
Current Output setting
3.
Output ON/OFF setting
4.
SET (confirm) output values
Directly type the value in the Voltage and Current fields or use the slider to set the Voltage and
Current values and then press SET to confirm. Click ON or OFF to set the output status.
Hinweis: Sobald der Schieberegler aktiv ist, können Sie die Pfeiltasten (links und rechts) der
Tastatur zur Feineinstellung nutzen.
14
DCP60‐EU‐DE v1.4 9/13
