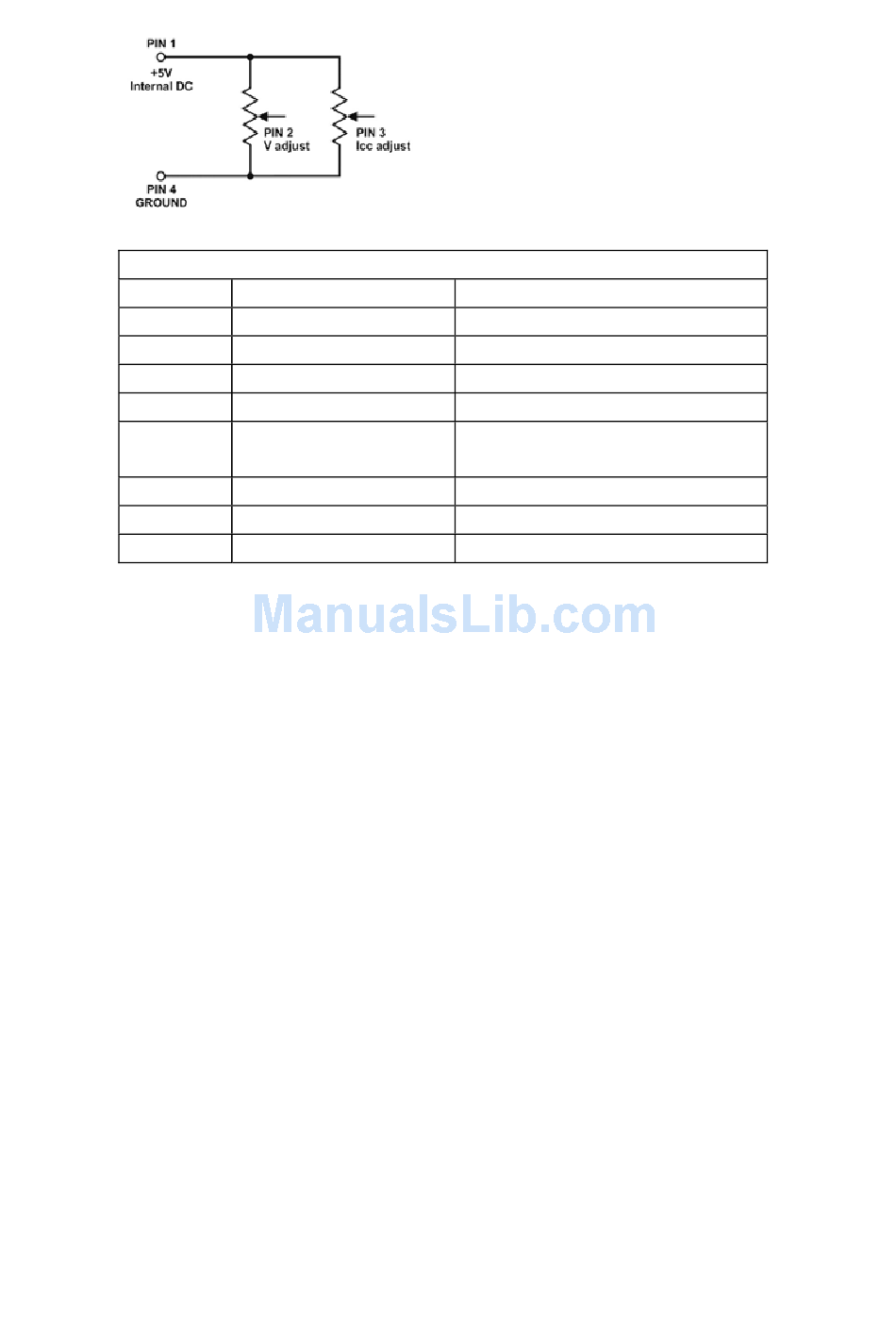

REMOTE CONTROL – METHOD 2: Using two 0 to 5K Ohm variable resistors
Remote Socket Pin Assignment for external variable resistor
PIN
1
2
3
4
5
6
7
8
Check the output voltage range of the power supply by adjusting the 5Kohm variable resistor.
Short circuit the main output with 10AWG wire to check the CC setting on the display while
adjusting the variable resistor.
FUNCTIONS
Internal DC +5V
Voltage adjust
Current adjust
Ground
Output OFF/EIN
N.A.
N.A.
N.A.
REMARKS
One end of resistor
Variable leg of resistor
Variable leg of resistor
Other end of resistor
Short to ground zum
Ausschalten
10
