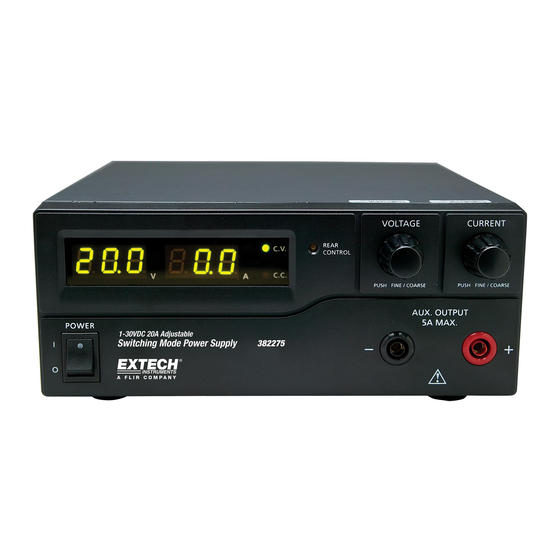

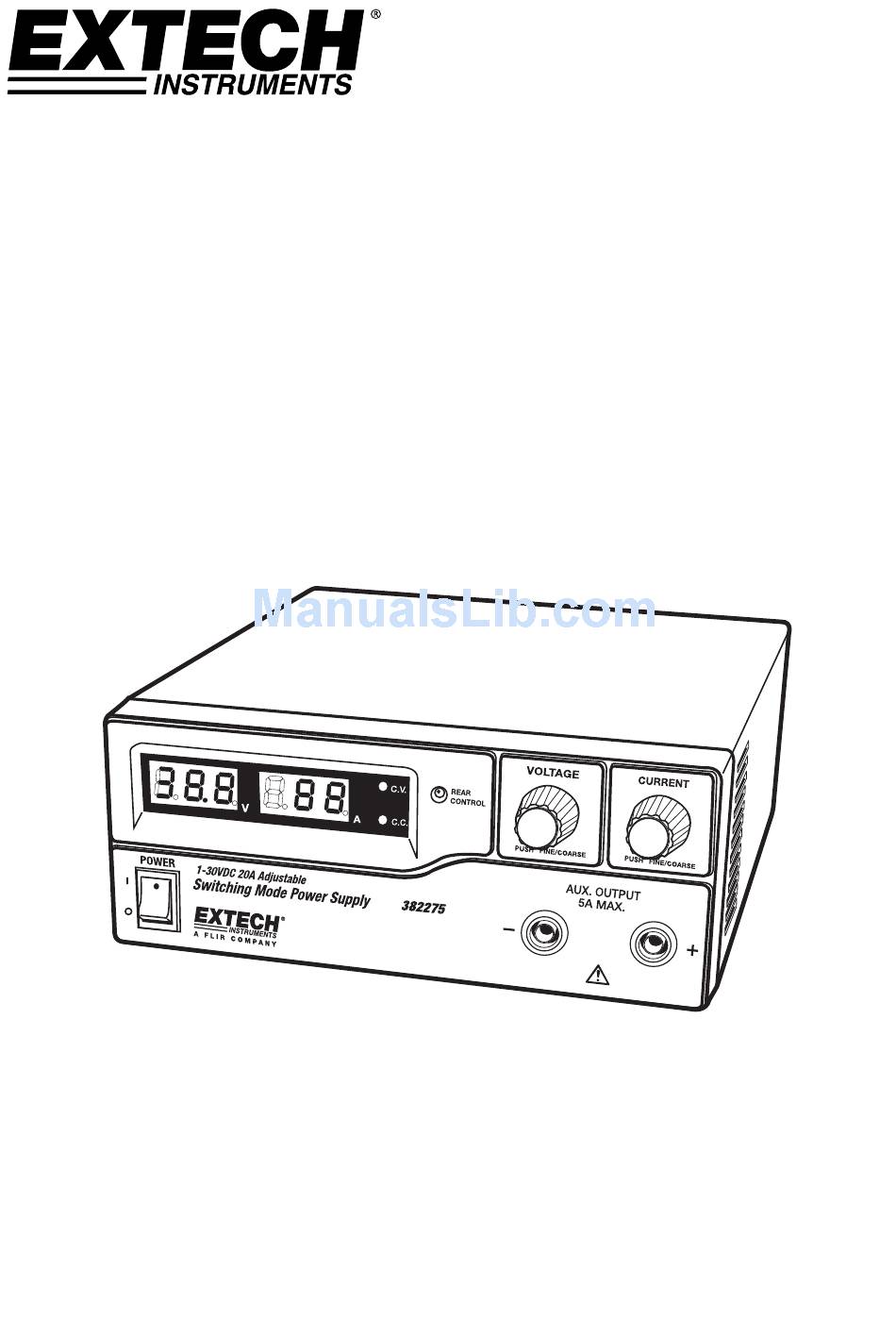

- Page 1 User Guide Model 382275 and 382276 Single Output Laboratory Grade Switching DC Power Supply ...
- Page 2 • Do not use this power supply near water. • Do not operate or touch this power supply with wet hands. • Do not open the casing of the power supply when it is connected to AC power. • Refer all servicing to qualified service personnel only. • Before replacing the fuse, identify and fix any problems. • Replace the fuse with a fuse of the specified type and rating. CAUTION • Use a grounded 3 pin AC source. • This unit is intended for indoor use only. • Do not operate or place this unit in direct sunlight or in a humid location • Avoid environments where dust or dirt can enter the power supply casing. • Do not place the power supply near a heat source. • Before plugging into local AC mains, check the rating label at the back of the unit for 110V or 220V operation. The model 382275 can be powered by 110V only. The model 382276 can be powered by 220V only. • Do not block the ventilation openings of the unit. • This unit must be used within the specified rating; excessive continuous loading may cause damage to the power supply. • The gauge size of the input power cable must be at least 3 “(0.75mm) and the total length of power cable must not exceed 118” (3m) 382275/6-EU-EN v4.3 3/14...
-
Page 3: Power Supply Description
Power Supply Description 1. Power Switch ON/OFF 2. Voltage Display 3. Current Display 4. Constant Voltage Indicator LED 5. Rear Control Indicator LED (Switches ON when in Preset, Remote Control or Set Mode) 6. Output Voltage Control Knob (Controls both the main and auxiliary output voltage) 7. Output Current Control Knob (Controls both the main and auxiliary output current) 8. Positive Auxiliary Output Terminal (Max. 5 Amps) 9. Negative Auxiliary Output Terminal (Max. 5 Amps) 10. Constant Current Indicator LED 382275/6-EU-EN v4.3 3/14... -
Page 4: Rear Panel Description
Rear Panel Description 1. Main Output (20 Amps Max.) 2. P1, P2 and P3 Recall Switch 3. Cooling Fan for Ventilation 4. AC input Plug and Fuse 5. Remote Control Connector 6. Mode Switch Mode Descriptions Mode Selection The power supply has four (4) modes of operation: NORMAL, PRESET, SET and REMOTE CONTROL mode. Slide the Mode Selection Switch to the desired Mode. The power supply defaults to the NORMAL Mode. Normal Mode Normal Mode is the factory preset mode. The power supply’s output voltage and current are controlled by the dual action volume knobs. Push the knobs to toggle the coarse and fine tuning; notice the subtle changes in brightness of the related LED. Adjust the knob to the desired value first with the Coarse adjustment and then with the Fine tune adjustment. Turn the Current knob gently in any direction to check the preset current level. The display will resume its normal brightness after a few seconds to confirm the adjustment. 382275/6-EU-EN v4.3 3/14... - Page 5 Preset Mode In the PRESET mode, the Rear Control Light is switched ON to indicate that the panel voltage and current controls are de‐activated. There are three preset outputs, P1, P2 and P3, selectable via the Recall Switch, located on the rear of the power supply. The preset values are factory set per the following table. Presets Output Voltage Output Current P1 5V Maximum P2 13.8V Maximum P3 25V Maximum Set Mode In the SET mode, the Voltage and the Current values for the three presets (P1, P2, and P3) can be programmed. Set the Mode Switch located on the rear of the power supply to the “SET” position. Select a preset using the Recall Switch (set to the P1, P2 or P3 position). Use the front panel Voltage Control Knob to set the desired voltage value. Use the front panel Current Control Knob to set the desired current value. Repeat this procedure for the remaining presets if desired. Move the Recall Switch from the SET to the PRESET position to store changes. Note: Presets reside in non‐volatile memory meaning that the voltage and current settings for each preset are retained even when the power supply is switched OFF. Caution: Check the output voltage of the preset in use before connecting to the Load. To check a preset value, move the Mode Switch to the PRESET position and then move the Recall Switch to the P1, P2 or P3 position. The Voltage and Current settings for the corresponding preset will display. 382275/6-EU-EN v4.3 3/14...
-
Page 6: Power Up Checks
Power up Checks 1. First, check the rating label of the power supply and make sure it complies with the AC mains voltage (110V or 220V). Next, set the Mode Switch located on the rear of the power supply to the Normal Position. 2. Listen for the cooling fan when switching on the power supply. The power supply performs a series of self test checks on startup which includes testing the cooling fan. The fan will stop completely after a few seconds after running at high speed indicating that it is in good order. The CV, V and A lights switch ON displaying voltage and 0.0 current. To check the current level, turn the control knob one click in either direction. The current display returns to 0.0 after a few seconds. The Table below illustrates the Self‐Test sequence: Self test display and Sequence Test Description Software version Display check C.V. Indicator check C.C. Indicator check Rear indicator check C.V. recheck Test continuing Over voltage protection check Over load protection check Over temperature protection check Fan check Output off (remote control mode) 382275/6-EU-EN v4.3 3/14... -
Page 7: Operation
Return EMF and voltage transients generated by electric motors can damage this power supply. This power supply was designed for use on electronic equipment only and not intended for use on electrical equipment of any kind. Using the Control Knobs The rotary control knobs offer fine/coarse tuning with notched movement. Push the knobs to toggle between coarse and fine tuning, notice the subtle changes in brightness of the related LED. Adjust the knobs to the desired values by using coarse and then fine tuning. The display will resume its normal brightness after a few seconds to confirm the adjustment. Connecting to UUT (Unit under test) Connect the equipment to the power supply. Red (+) is connected to the positive polarity input of the UUT and Black (‐) is connected to the negative polarity input of the UUT. Switch ON the power supply first; the panel meter & green CV Indicator should switch ON. Switch ON the UUT; the panel meter & green CV Indicator should remain on. The UUT is now ready. When operation is completed, switch off the UUT and then the power supply. When disconnecting the power supply from the UUT, disconnect the remote sensing wire first and then disconnect the output cables. 382275/6-EU-EN v4.3 3/14... -
Page 8: Remote On-Off Control
Remote Control Remote control is made possible through the use of the supplied 8‐pin Remote Control connector and 22AWG wire. The Remote Control feature offers remote adjustment of voltage and current and output ON/OFF switching. Remote ON‐OFF Control The Remote Control ON‐OFF function can be activated in any of the operational modes (NORMAL, PRESET, REMOTE, and SET). Using the supplied 8‐pin plug and 22AWG wire, follow the procedures below: Remove the black portion of the remote control connector plug by removing the screw as shown. If PIN 5 is open, the output is ON. If PIN 5 is shorted to ground (PIN 4) the output is OFF. When the output is OFF, the C.V. & C.C. LED will flash. The current output voltage and current setting will show on the panel meter. The output voltage & current control knob can be used to adjust to the desired value when the output is off. Remote Voltage/Current Control There are two methods (Method A and Method B; see below) for the remote adjustment of voltage and current. Each method requires that the Current remote control portion be functional otherwise the unit will be in the CC mode all of the time. 382275/6-EU-EN v4.3 3/14... - Page 9 5. Short the main output with 10AWG wire to check the CC display by varying the external voltage source. 6. Switch OFF the power supply. Remote Socket PIN assignment for external variable voltage source PIN FUNCTION NOTES 1 Internal +5VDC 50mA maximum 2 Voltage Adjustment 0 to 5V 3 Current Adjustment 0 to 5V 4 Ground 5 Output OFF Short to ground 6 Unused 7 Unused 8 Unused 382275/6-EU-EN v4.3 3/14...
- Page 10 Remote Socket PIN assignment for external variable resistors PIN FUNCTION NOTES 1 Internal +5VDC 2 Voltage Adjustment Variable part of resistor 3 Current Adjustment Variable part of resistor 4 Ground 5 Output OFF Short to ground 6 Unused 7 Unused 8 Unused 382275/6-EU-EN v4.3 3/14...
-
Page 11: Overload Protection
C.C. This unit has a built‐in over‐voltage protection feature. In the event of an output voltage exceeding the allowable range (refer to the specifications section for range limits), protection will be triggered and the output power will be switched off. (OUP warning appears). To reset the warning, switch off the power supply and remove all loading. Switch the unit to resume normal operation. If this problem persists, please contact Extech Technical Support. OTP: Over Temperature Protection C.V. C.C. The unit houses a thermo‐sensor that monitor to determine if an over‐heating condition exists. The OTP warning will appear on the display and the output will switch off in over‐heating condition does exist. When this warning appears, switch off the unit and remove all loading. In these cases, check the load and the output settings and then allow the unit to cool for at least 30 minutes. Ensure that the ventilation openings are not blocked and that the power supply has proper clearance. Ensure that the cooling fan is operational; never use the power supply with a faulty cooling fan. OLP: Over Load Protection C.V. C.C. Normally the overload protection is provided by the CC constant current mode. However, if the CC mode fails it may cause serious damage to the test piece or to the load. OLP is used to minimize the extent of the damage to the load. Switch off the power supply as soon as this warning appears. To reset this warning, switch off the unit and remove all loading and then switch the unit on again. If this problem persists, please contact Extech Technical Support. 382275/6-EU-EN v4.3 3/14... -
Page 12: Specifications
Current Ripple & Noise (rms) 30mA Front Output Variable Output Voltage 1 to 30VDC Variable Output Current 1 to 5A Voltage Load (10 to 100% Load) 350mV Regulation Line (170 to 264VAC 20mV Current Load (90 to 10% Rated Voltage) 100mA Regulation Line (170 to 264VAC Variation) 50mA Ripple & Noise (peak‐peak) Voltage 50mV Current Ripple & Noise (rms) 30mA Meter Accuracy Voltage Meter ±(0.2% +3 digits) Current Meter ±(0.2% +3 digits) Tracking Over 1 to 5V Default Value is +2V Voltage 5 to 20V Default Value is+3V Protection 20 to 30V Default Value is +4V 382275/6-EU-EN v4.3 3/14... - Page 13 Switching Frequency 75 to 95 KHz Cooling Method Thermostatic Control Fan from Zero to full speed Protections Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature Transient Response Time 1.5ms (50‐100% of load) Power Factor Control >0.95 at optimal load Special Features Three (3) user defined presets and Remote Control Operating Humidity Range 10 to 80%RH Altitude 2000 meters (7000 Feet) Pollution Degree 2 Main Supply Voltage Fluctuation ±10% of the nominal voltage Dimensions (WxHxD) 200 x 90 x 215 mm (7.9 x 3.5 x 8.5“) Weight 2.6 kg (5.7 lbs) Approvals CE EMC: EN 55011, 55022 LVD: EN 60950, 61010 Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com 382275/6-EU-EN v4.3 3/14...
