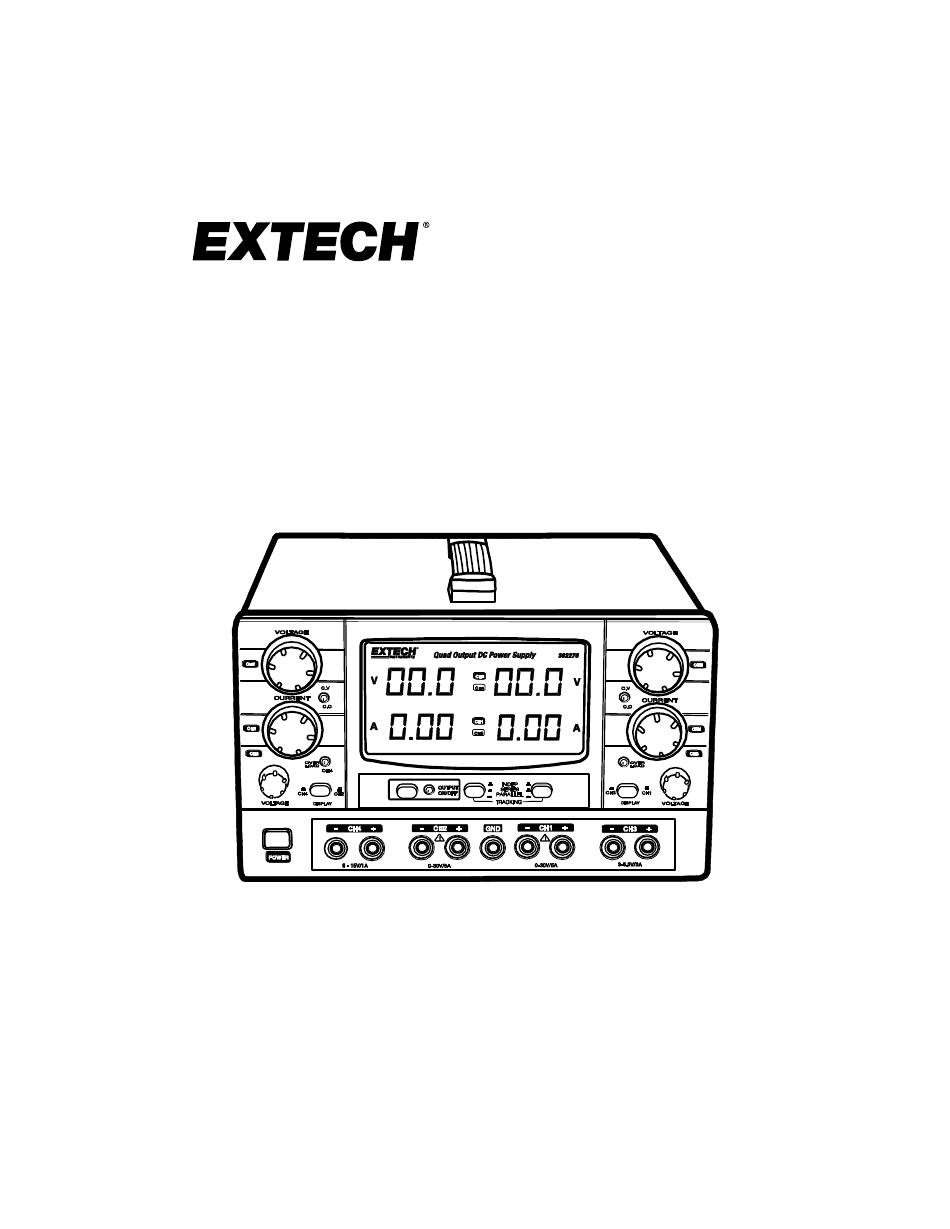

- Page 1 User Manual High Precision Quad Output DC Power Supply Model 382270 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Prior to cleaning the meter housing, disconnect the mains plug from the power outlet. Clean only with a damp, soft cloth and a commercially available mild household cleaner. Ensure that no water gets inside the equipment to prevent possible shorts and damage to the equipment. 382270-en-GB_V2.5 7/19 GlobalTestSupply www.
- Page 3 Positive terminal CH 2 Output ON-OFF status LED Negative terminal CH 2 Output ON-OFF button Positive terminal CH 4 Negative terminal CH 4 CH2 / CH 4 display select button 382270-en-GB_V2.5 7/19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 4 3. Rotate the CC adjustment (4) or (13) to minimum 4. Connect the required load. 5. Rotate CC adjust knob clockwise to reach the desired current value. 6. The color of the CV/CC status LED (5) or (12) will turn red. 382270-en-GB_V2.5 7/19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 5 Insert the correct fuse into the fuse holder based on the input voltage. 115V F8AL/250V 5x20mm 230V F4AL/250V 5x20mm Remove the fuse from the SPARE fuse holder in the AC input receptacle, as needed. 382270-en-GB_V2.5 7/19 GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 6 Specifications Range Specifications Output1 Output2 Output3 Output4 (CH1) (CH2) (CH3) (CH4) 0~30V/0~5A 0~30V/0~5A 3~6.5V/3A 8~15V/1A Electrical Specifications Input voltage: 110~127VAC±10%; 220~240VAC±10% (switchable) Output voltage and current: See table above Line regulation: For Two adjustable outputs: ≤ 1 x 10ˉ + 3mV ≤...
