VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING

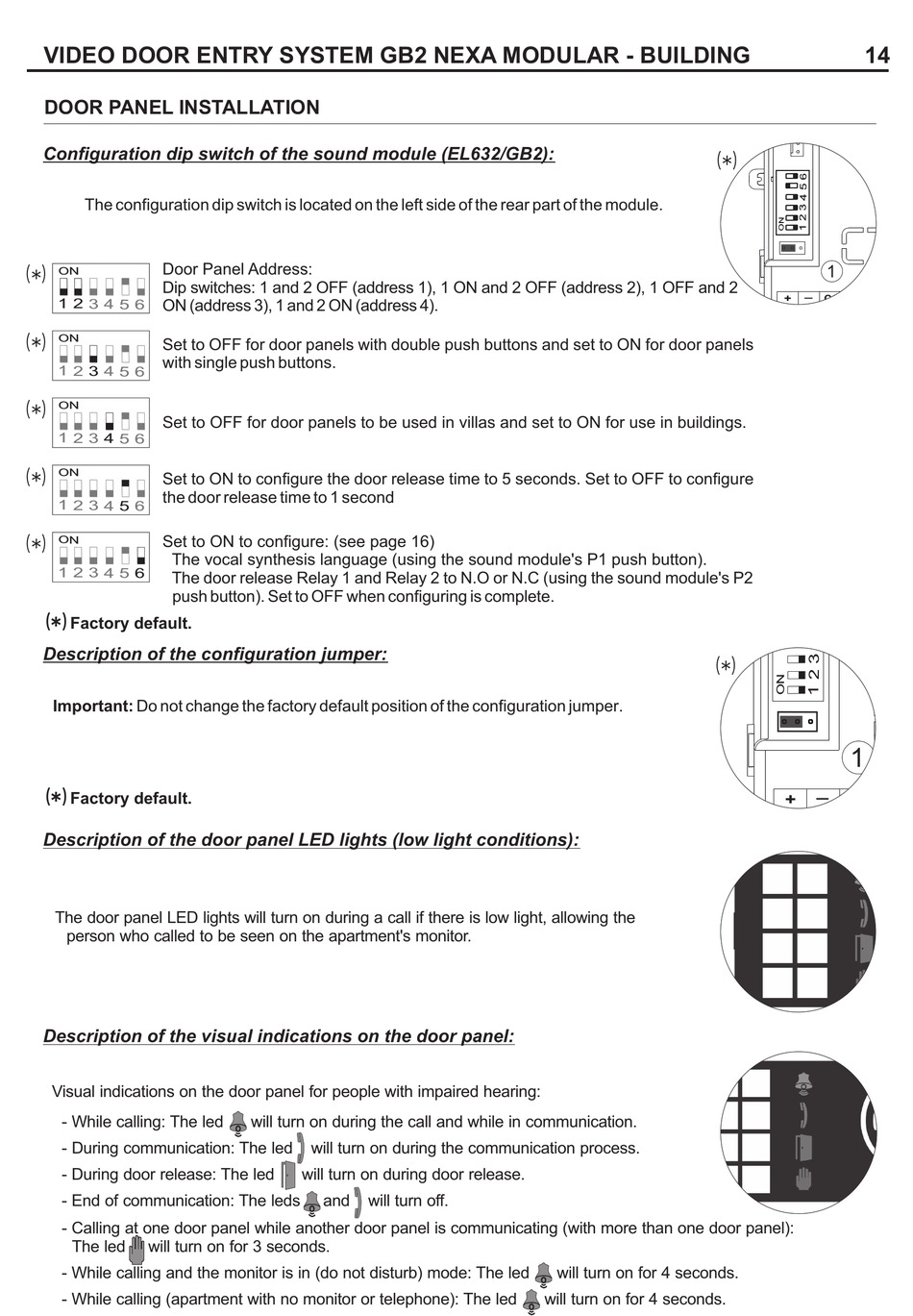

DOOR PANEL INSTALLATION
Configuration dip switch of the sound module (EL632/GB2):
The configuration dip switch is located on the left side of the rear part of the module.
Door Panel Address:
( )
*
Dip switches: 1 and 2 OFF (address 1), 1 ON and 2 OFF (address 2), 1 OFF and 2
ON (address 3), 1 and 2 ON (address 4).
( )
*
Set to OFF for door panels with double push buttons and set to ON for door panels
with single push buttons.
( )
*
Set to OFF for door panels to be used in villas and set to ON for use in buildings.
( )
*
Set to ON to congure the door release time to 5 seconds. Set to OFF to congure
the door release time to 1 second
( )
Set to ON to congure: (see page 16)
*
The vocal synthesis language (using the sound module's P1 push button).
The door release Relay 1 and Relay 2 to N.O or N.C (using the sound module's P2
push button). Set to OFF when conguring is complete.
( )
*
Factory default.
Description of the configuration jumper:
Important: Do not change the factory default position of the configuration jumper.
( )
*
Factory default.
Description of the door panel LED lights (low light conditions):
The door panel LED lights will turn on during a call if there is low light, allowing the
person who called to be seen on the apartment's monitor.

Description of the visual indications on the door panel:

Visual indications on the door panel for people with impaired hearing:
- While calling: The led
- During communication: The led
- During door release: The led
- End of communication: The leds
- Calling at one door panel while another door panel is communicating (with more than one door panel):
The led will turn on for 3 seconds.
- While calling and the monitor is in (do not disturb) mode: The led
- While calling (apartment with no monitor or telephone): The led
will turn on during the call and while in communication.
will turn on during the communication process.
will turn on during door release.
and will turn off.
( )
( )
will turn on for 4 seconds.
will turn on for 4 seconds.
