VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING
INSTALLATION DIAGRAMS

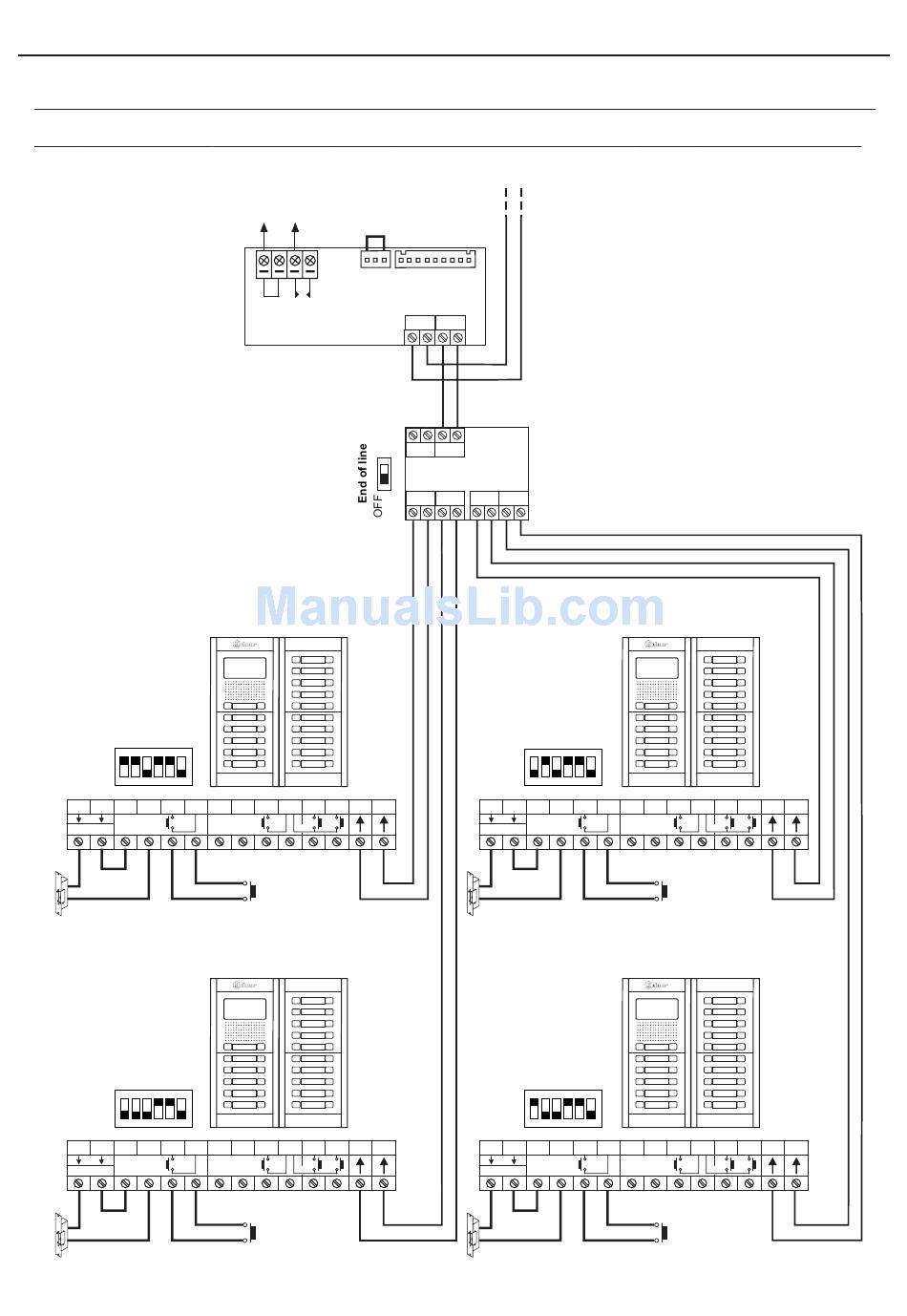

Video installation with 4 access doors, DP-62 distributor for door panels and Golmar 12Vd.c lock release:
SW1
ON
1 2 3 4 5 6
_
+ C1 NA1 AP- AP+
Relé 1
12Vdc
(1)
Lock release
max. 12 Vdc/270mA.
SW1
ON
1 2 3 4 5 6
_
+
C1 NA1 AP- AP+
Relé 1
12Vdc
(1)
Lock release
max. 12 Vdc/270mA.
(1) Important: For connection of 12Va.c lock release or a 2nd lock release, (see page 26).
Main
100~240Vac
N N L N.A
CN2
FA-GB2
Internal
rele
Access door panel 4
NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 2
(1)
AP
Access door panel 1
NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 2
(1)
AP
To distributors (buiding's floor)
CN1
BUS (M) BUS (PL)
BUS BUS
DP-GB2
BUS D BUS C B A
SW1
ON
1 2 3 4
_
+ C1 NA1 AP-
Relé 1
12Vdc
(1)
Lock release
max. 12 Vdc/270mA.
SW1
ON
1 2 3 4
_
+
C1 NA1 AP-
Relé 1
12Vdc
(1)
Lock release
max. 12 Vdc/270mA.
Access door panel 3
5 6
AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 2
(1)
AP
Access door panel 2
5 6
AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 2
(1)
AP
