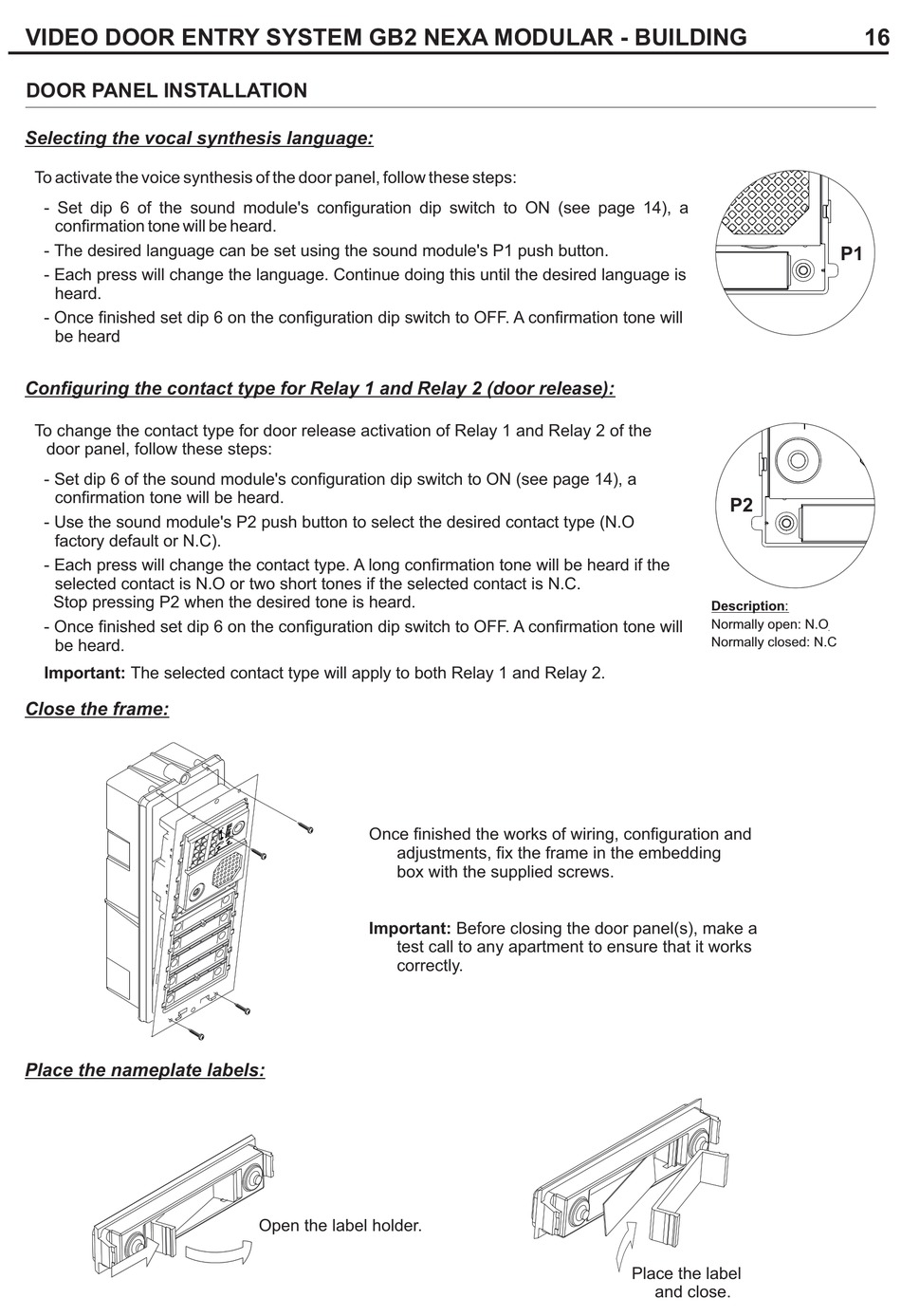

Selecting The Vocal Synthesis Language; Configuring The Contact Type For Relay 1 And Relay 2 (Door Release); Close The Frame; Place The Nameplate Labels - golmar GB2 Nexa Modular User Manual

VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING
DOOR PANEL INSTALLATION

Selecting the vocal synthesis language:

To activate the voice synthesis of the door panel, follow these steps:
- Set dip 6 of the sound module's conguration dip switch to ON (see page 14), a
conrmation tone will be heard.
- The desired language can be set using the sound module's P1 push button.
- Each press will change the language. Continue doing this until the desired language is
heard.
- Once nished set dip 6 on the conguration dip switch to OFF. A conrmation tone will
be heard
Configuring the contact type for Relay 1 and Relay 2 (door release):
To change the contact type for door release activation of Relay 1 and Relay 2 of the
door panel, follow these steps:
- Set dip 6 of the sound module's conguration dip switch to ON (see page 14), a
conrmation tone will be heard.
- Use the sound module's P2 push button to select the desired contact type (N.O
factory default or N.C).
- Each press will change the contact type. A long conrmation tone will be heard if the
selected contact is N.O or two short tones if the selected contact is N.C.
Stop pressing P2 when the desired tone is heard.
- Once nished set dip 6 on the conguration dip switch to OFF. A conrmation tone will
be heard.
Important: The selected contact type will apply to both Relay 1 and Relay 2.

Close the frame:

Place the nameplate labels:

Once finished the works of wiring, configuration and
adjustments, fix the frame in the embedding
box with the supplied screws.
Important: Before closing the door panel(s), make a
test call to any apartment to ensure that it works
correctly.
Open the label holder.
P2
Description:
Normally open: N.O
Normally closed: N.C
Place the label
and close.
16
P1
