VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING
DOOR PANEL INSTALLATION

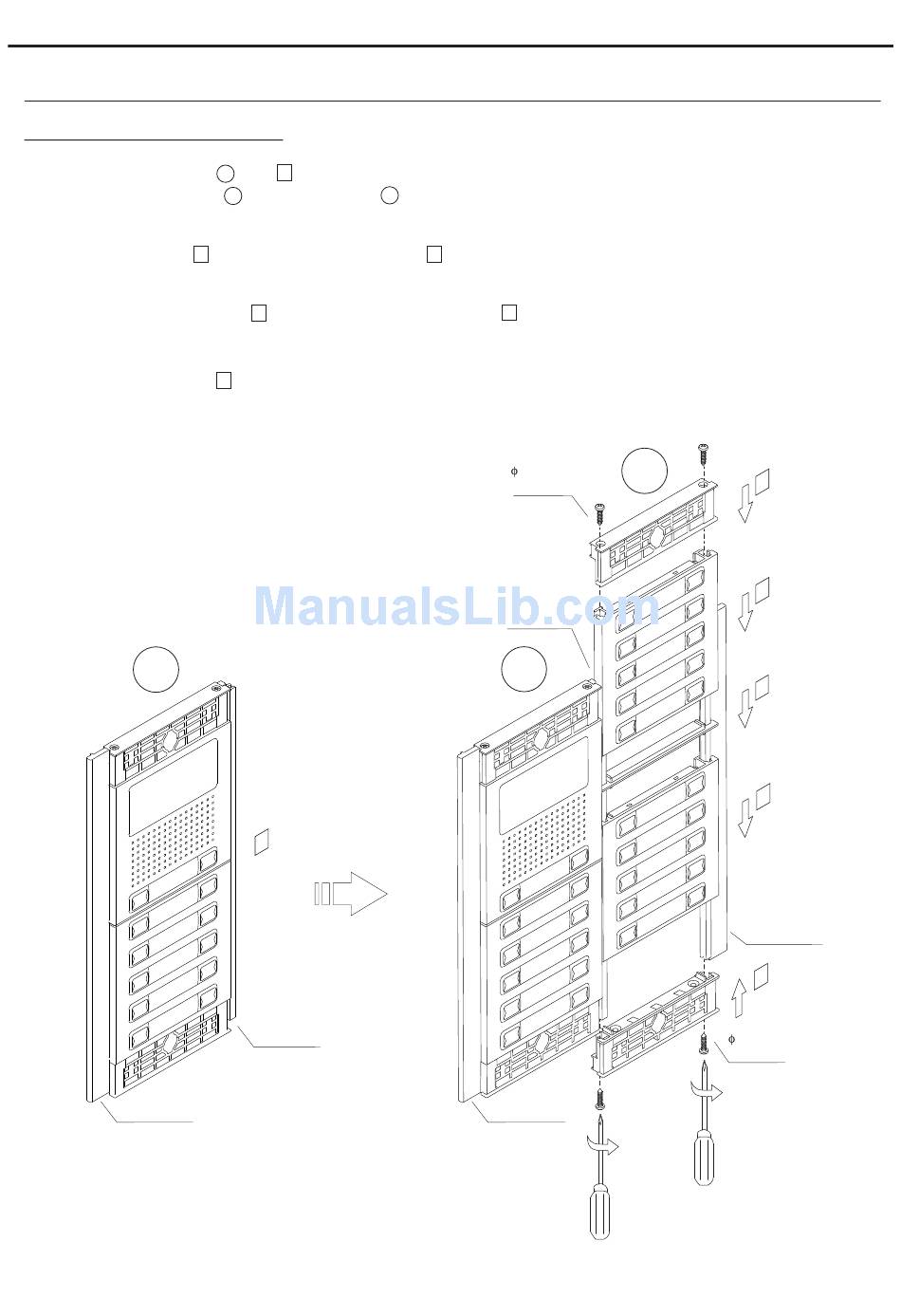

Double door panel assembly:
Assembly the door panel A (step 1 ), as it is described in page 17 "door panel assembly". Bear in mind that the rod
that will join the door panel A and the door panel B have to be of the type door panel UNE rod, see picture below.
Insert a header between door panel UNE rod and the second lateral rod (at the bottom part) and fix it with the
supplied screws (step 2 ), then insert the module (step 3 ). If the door panel is more than one module insert first the
lower module.
Place the spacer module (step 4 ) and insert the next module (step 5 ). Repeat this procedure in case of door panels
with one more module (the maximum number of modules placed vertically is three).
To finish insert the last header between door panel UNE rod and the second lateral rod (at the top part) and fix it with
the supplied screws (step 6 ).
A
Lateral rod
IMPORTANT: Once finished the adjustments, stick the adhesive gasket (that it is supplied with the set of closing
heads N60XX CMPL) in the door panel UNE rod.
1
Door panel
UNE rod
B
2,9 x 13
DIN-7981
Door panel
UNE rod
A
Lateral rod
18
6
5
4
3
Lateral rod
2
2,9 x 13
DIN-7981
