VIDEO DOOR ENTRY SYSTEM GB2 NEXA MODULAR - BUILDING

INSTALLATION DIAGRAMS

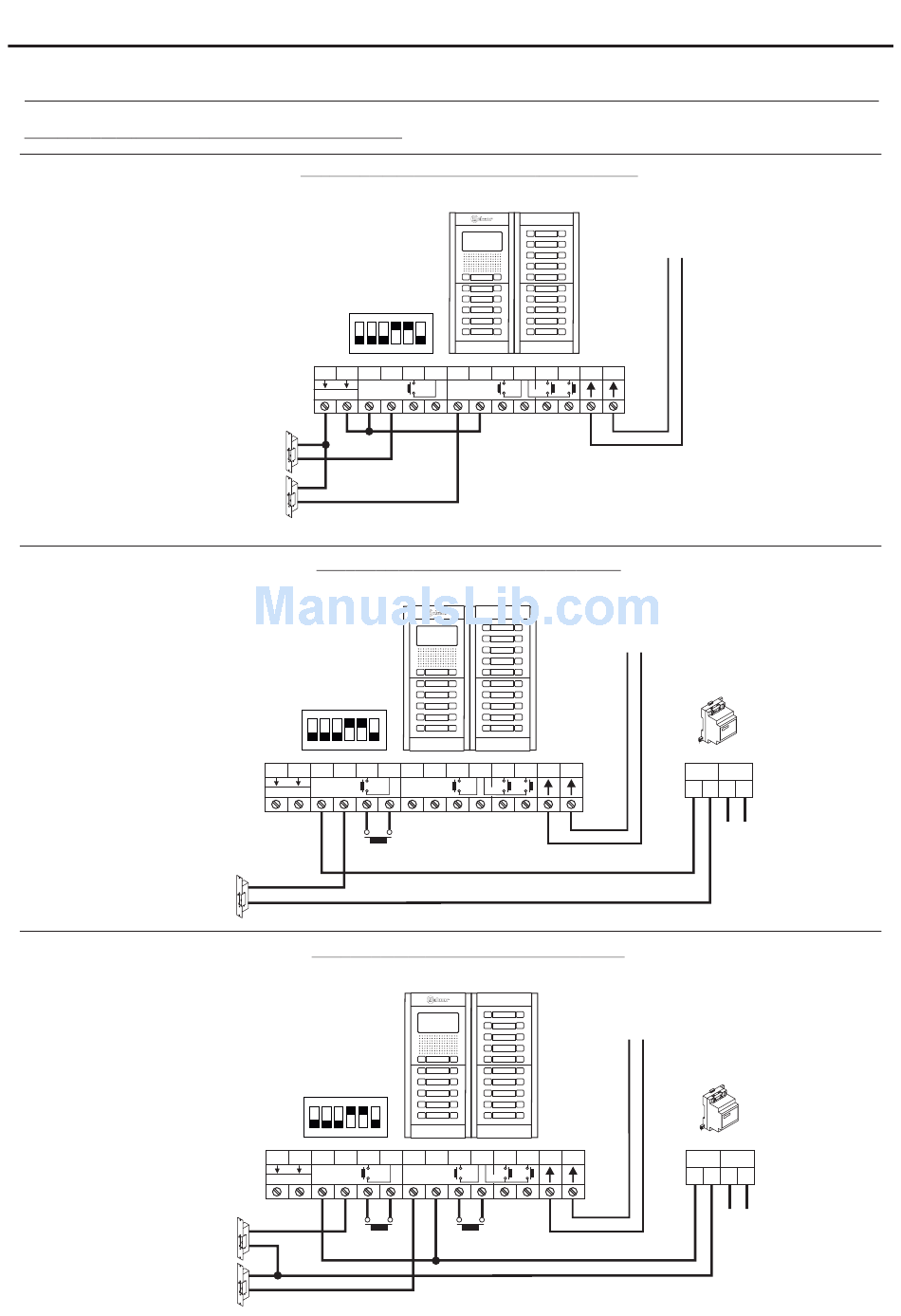

Connexion of d.c and a.c Golmar locks release.
Locks release
max. 12 Vdc/270mA.
(1) Important: Do not use the "AP" push buttons door release if there are connected 2 d.c locks release.
Lock release
max. 12 Vac/850mA.
Locks release
max. 12 Vac/850mA.
Connexion of 2 d.c locks release without "AP":
SW1
ON
1 2 3 4 5 6
_
+
C1 NA1 AP- AP+
Relé 1
12Vdc
(1)
Connexion of 1 a.c lock release with "AP":
Access door panel
SW1
ON
1 2 3 4 5 6
_
+
C1 NA1 AP- AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 1 Relé 2
12Vdc
AP1
Connexion of 2 a.c locks release with "AP":
Access door panel
SW1
ON
1 2 3 4 5 6
_
+
C1 NA1 AP- AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 1 Relé 2
12Vdc
AP1
Access door panel
To FA-GB2 power supply
NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 2
(1)
To FA-GB2 power supply
To FA-GB2 power supply
AP2
TF-104
SEC
PRI
~ ~ ~ ~
Main
230Vac
TF-104
SEC PRI
~ ~ ~ ~
Main
230Vac
26
