Cs4010/Cs4410 Infant Restraint (Itemised List) - Infasecure CS4010 Instructions Manual

3
4
9 A
5
6
7

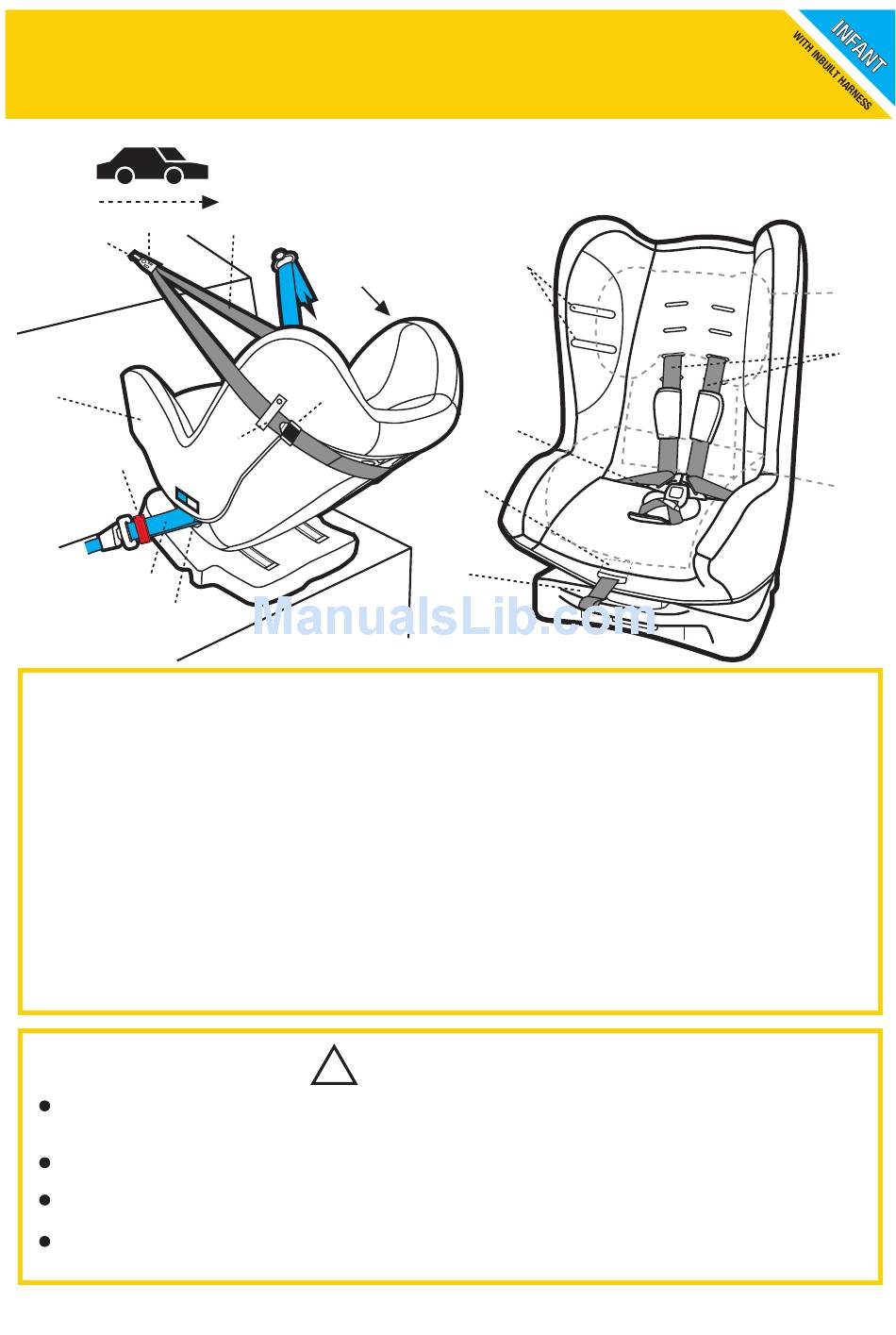

1.
UPPER ANCHORAGE STRAP ADJUSTER
2.
UPPER ANCHORAGE STRAP
3.
ATTACHMENT CLIP
4.
ANCHOR FITTING + ATTACHMENT HARDWARE
5. SAFE GRIP RED BELT CLAMP (supplied in pocket)
6.
VEHICLE SEAT BELT
7.
"REARWARD-FACING SEAT BELT PATH" MARKER
(EACH SIDE OF RESTRAINT - COLOURED BLUE)
8.
UPPER ANCHORAGE STRAP GUIDE
9.
COMFORT COVER
A - SEAT COVER
To achieve the necessary distribution of deceleration force during a vehicle impact, ensure the
infant is seated correctly in the child restraint and the harness is fitted and adjusted as per these
instructions. Ensure the child restraint and infant are rearward facing.
Care and attention should be given to ensure that the infant has adequate ventilation and shading
when in the restraint.
For a vehicle without a fixed parcel shelf an extension strap(s) may be needed.
If so ring (02) 4728 8080 for nearest supply location. (Refer page 31)
Seat belt extenders should not be used if the seat belt is not long enough to secure the child
restraint.
CS4010/CS4410
REARWARD FACING
Shoulder height markers may
Front
be hidden under a pillow in
of Car
the lowest position
2
VIEW A
1
8
!
IMPORTANT
10
12
13
14
10.
SHOULDER HEIGHT MARKER
11.
HARNESS SHOULDER STRAPS
12.
BUCKLE ASSEMBLY
13.
HARNESS ADJUSTER
14.
HARNESS ADJUSTMENT STRAP
15.
PILLOW (if supplied)
16.
PADDED INSERT (if supplied)
NOTE: Padded inserts can vary according to model.
For detailed description and method of attachment
for padded accessories refer to Accessories on page 31.
8
VIEW A
15
11
16
