CS5310
MODELS
Booster Seat
To be used with a lap-sash
seat belt by children whose
shoulders are above the
lower shoulder height
marker (approximately 4
years of age) until the child's
shoulders reach the upper
shoulder height marker
(approximately 6 to 8
years of age)
F O U
F O U R T O E I G H T Y E A R S*
4
yrs
yrs.
T R AV E L L I N G S A F E L Y W I T H P E A C E O F M I N D
R AV E L L I N G S

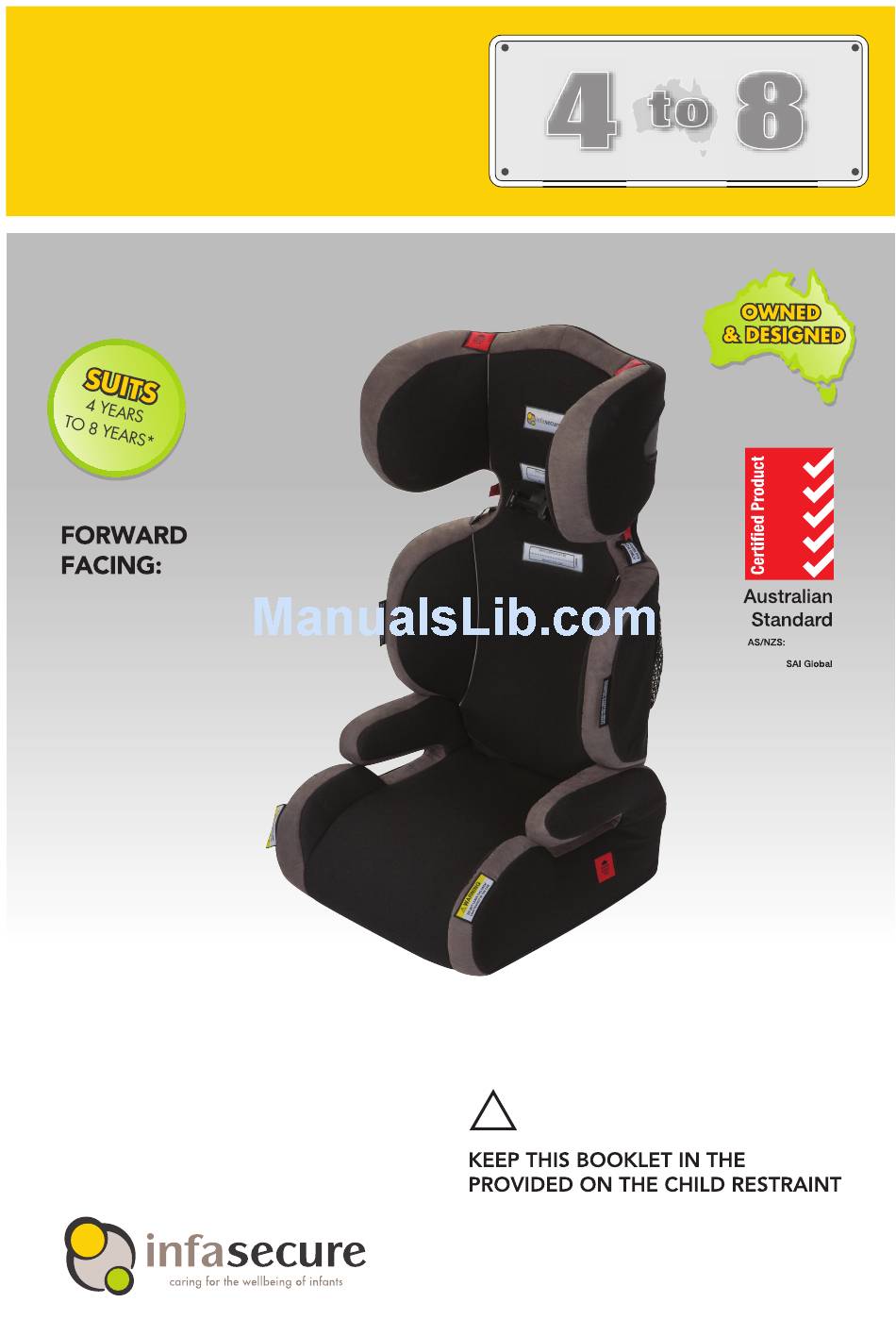

The photo displayed is indicative of the
type of restraint and may have slight
changes depending on the model.
IMPORTANT
!
*All references to age are to an average proportioned
child. Children vary in shapes and sizes. The ages
outlined above is an approximation only.
A R S
8
t o
yrs.
yrs.
E A C E O F M I N D
1754:2010
Licence No. 25324
PLACE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infasecure CS5310
Summary of Contents for Infasecure CS5310
- Page 1 F O U R T O E I G H T Y E A R S* F O U A R S CS5310 yrs. yrs. yrs. T R AV E L L I N G S A F E L Y W I T H P E A C E O F M I N D...
-
Page 2: Booster Seat
MODELS Booster Seat SUITABILITY OF THE CHILD RESTRAINT The CS5310 Booster Seat is suitable for toddlers to older children as a booster seat. BOOSTER SEAT (Type E Forward Facing) To be used with a lap-sash seat belt by children whose shoulders are above the lower shoulder height marker (approximately 4 years of age) until their shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age) Continue to use this child restraint until the child reaches this limit. -
Page 3: Anchorage Fittings
- For cars fitted with anchorage points Page 3-4 - For cars not fitted with anchorage points Page 4-4 - Restraint Guide Page 5 - CS5310 Child Restraints (Itemised list) Page 6 - Shoulder Height Marker Page 7-8 INSTALLATION - Installing in Vehicle... - Page 4 Straps may be damaged by unsecured cargo restraint) in a collision. Secure or remove hazardous cargo before using this strap in a Hatch-Back If so ring InfaSecure on (Aust) (02) 4728 8080 for or wagon nearest supply location. Do not use the child restraint where the...
-
Page 5: Side View
FOR CARS NOT FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT UPPER ANCHORAGE FITTINGS FOR SEDANS ONLY Attachment Bolt WARNING SIDE VIEW... -
Page 6: Restraint Guide
Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available. - Page 7 MODEL CS5310 “BOOSTER SEAT BELT PATH” MARKER UPPER ANCHORAGE STRAP ASSEMBLY (EACH SIDE OF RESTRAINT - COLOURED RED) ADJUSTER COMFORT COVER ATTACHMENT CLIP A - SEAT BASE B - BACKREST ANCHOR FITTING + ATTACHMENT HARDWARE ARM REST (EACH SIDE OF THE RESTRAINT)
-
Page 8: Shoulder Height Marker
SHOULDER HEIGHT MARKER SMALLER CHILD Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint. Shoulder height markers may be hidden under the pillow, when the pillow is in the lowest position. Front of Car LOWER... - Page 9 SHOULDER HEIGHT MARKER TALLER CHILD Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint. Shoulder height markers may be hidden under the pillow, when the pillow is in the lowest position. Front UPPER of Car...
-
Page 10: Safety Warning
PULL TO ATTACH TIGHTEN ADJUSTER Pull to tighten and remove all the slack, from the upper anchorage Tilt Pull to strap. Do not overtighten as this lengthen could cause the restraint to lift off the vehicle seat (Refer to Figure 3). Pull to tighten WARNING... -
Page 11: Using Lap-Sash Seat Belt
USING LAP-SASH SEAT BELT “INSTALLING IN VEHICLE” (refer page 9) the backrest. IMPORTANT Figure 1 BOOSTER SEAT Ensure that you use the BELT PATH indicators, marked in “red”. Position the lap section of the vehicle seat across the child’s lap then insert the buckle tongue in the belt buckle (A). - Page 12 USING LAP-SASH SEAT BELT The shoulder strap passes diagonally across the child’s chest and depending on your child’s height passes either between the side wings (C) and (D) for a smaller child (Refer Fig 3) or above wing (D) Fig 4 for a larger child. Pass the shoulder belt through the belt sash guide (E) which is fastened to the restraint by a webbing strap.
-
Page 13: Very Important
The CS5310 Booster Seat cover has been manufactured to meet the Australian Standards requirements for flammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support. VERY IMPORTANT Only use this child restraint with the cover supplied or a manufacturer-... - Page 14 IMPORTANT Use only mild soap and water to clean all parts of the CS5310 Booster Seat. Do not use chemicals or cleaning agents Cold water only to be used and to be rinsed well Do not dry clean or tumble dry Do not bleach.
-
Page 15: Related Products
‘Accessory child safety harnesses - Do the risks outweigh the benefits?’. InfaSecure’s Research and Development team has identified the need for an improved method of safely retaining children in booster seats. Comparative crash testing carried out to the requirements of AS/NZS 1754 : 2010 in frontal mode (TNO P3 and P6 Test Dummies) has... -
Page 16: Customer Service
InfaSecure Warranty Details InfaSecure Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty. When used for commercial use the period is limited to six months.
