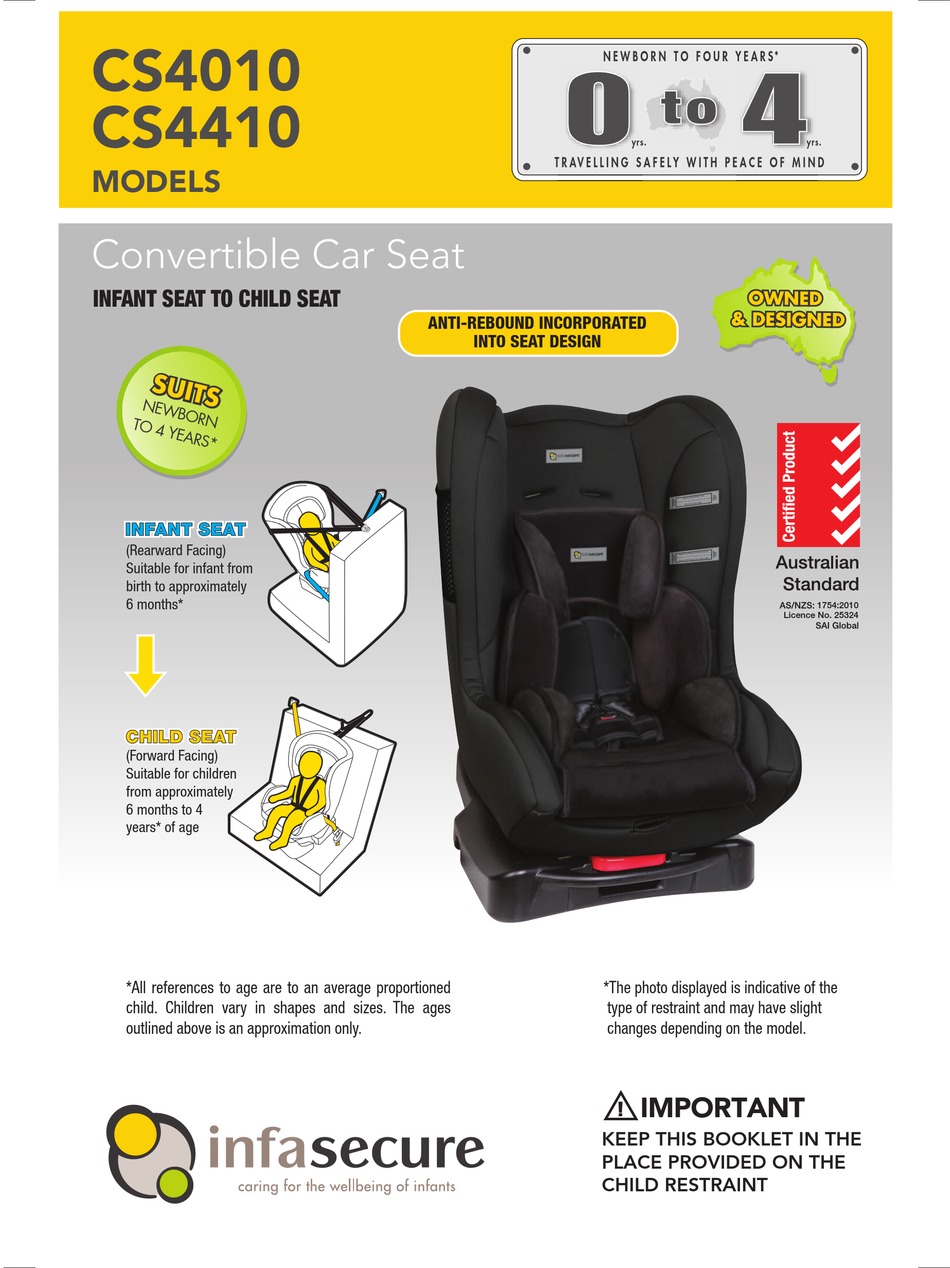

CS4010
CS4410
MODELS
Convertible Car Seat
INFANT SEAT TO CHILD SEAT
(Rearward Facing)
Suitable for infant from
birth to approximately
6 months*
(Forward Facing)
Suitable for children
from approximately
6 months to 4
years* of age
*All references to age are to an average proportioned
child. Children vary in shapes and sizes. The ages
outlined above is an approximation only.
0
T R AV E L L I N G S
T R AV E L L I N G S A F E L Y W I T H P E A C E O F M I N D
ANTI-REBOUND INCORPORATED
INTO SEAT DESIGN
N E W B O
N E W B O R N T O F O U R Y E A R S*
Y E A R S
4
t o
yrs
yrs.
E A C E O F M I N
*The photo displayed is indicative of the
type of restraint and may have slight
changes depending on the model.
IMPORTANT
KEEP THIS BOOKLET IN THE
PLACE PROVIDED ON THE
CHILD RESTRAINT
y rs
yrs.
y
1754:2010
Licence No. 25324
Advertisement
Table of Contents
Related Manuals for Infasecure CS4010
Summary of Contents for Infasecure CS4010
-
Page 1: Child Restraint
CS4010 N E W B O R N T O F O U R Y E A R S* N E W B O Y E A R S CS4410 yrs. yrs. y rs T R AV E L L I N G S A F E L Y W I T H P E A C E O F M I N D... -
Page 2: Suitability Of The Child Restraint
BEFORE INSTALLATION PLEASE READ CAREFULLY THE WHOLE OF THE INSTRUCTIONS FOR INSTALLATION AND IF IN THE EVENT OF DOUBT ABOUT THE METHOD OF INSTALLATION TO CONSULT INFASECURE OR A CHILD RESTRAINT FITTING STATION AUTHORISED BY THE RELEVANT TRANSPORT AUTHORITY. IN NEW ZEALAND, CONSULT THE AGENT FOR THE VEHICLE. -
Page 3: Table Of Contents
Page 4 Restraint Guide Page 5 Padding - Combination Guide Page 6 - Information & Warnings Page 7 - CS4010/CS4410 Infant Restraint (Itemised List) Page 8 - Shoulder Height Marker Page 9 SET UP - General Page 10 - Selection of Appropriate Padding Combination... - Page 4 If so ring InfaSecure on (Aust) (02) 4728 8080 for Straps may be damaged by unsecured cargo nearest supply location. in a collision. Secure or remove hazardous CS111 300mm cargo before using this restraint.
-
Page 5: For Cars Not Fitted With Anchorage Points
FOR CARS NOT FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT UPPER ANCHORAGE FITTINGS FOR SEDANS ONLY Attachment Bolt WARNING SIDE VIEW... -
Page 6: Restraint Guide
Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available. -
Page 7: Padding - Combination Guide
PADDING/INSERTS COMBINATION GUIDE DELUXE STANDARD MODE INFANT SEAT (Small Infant) REARWARD FACING INFANT SEAT (Large Infant) REARWARD FACING FORWARD FACING CHILD SEAT (Small Child) CHILD SEAT (Large Child) FORWARD FACING The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. -
Page 8: Information & Warnings
INFANT SEAT INFANT SEAT (Rearward Facing) INFORMATION & WARNINGS To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder height marker (approximately 12 months of age). Continue to use this infant restraint until the child reaches this limit. Infants are at risk of serious injury if they face forward too early. -
Page 9: Cs4010/Cs4410 Infant Restraint (Itemised List)
CS4010/CS4410 REARWARD FACING Shoulder height markers may Front be hidden under a pillow in of Car the lowest position VIEW A VIEW A SHOULDER HEIGHT MARKER UPPER ANCHORAGE STRAP ADJUSTER HARNESS SHOULDER STRAPS UPPER ANCHORAGE STRAP BUCKLE ASSEMBLY ATTACHMENT CLIP... -
Page 10: Shoulder Height Marker
SHOULDER HEIGHT MARKER BABY (Rearward Facing Mode) Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint. Do not turn to forward facing until this child’s shoulder reach the lower label. VIEW A Front of Car... -
Page 11: General
Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound bars or mechanisms to fullfill these requirements. The CS4010/CS4410 Child restraint has also been designed to be a compact restraint to enable multiple restraints to be used in the rear of most vehicles. -
Page 12: Selection Of Appropriate Padding Combination
SELECTION OF APPROPRIATE PADDING COMBINATIONS Determine whether your infant /child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations. WARNING To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back. -
Page 13: Correct Shoulder Height
SET UP CONVERTING TO INFANT SEAT Upper Anchorage ADJUSTER ASSEMBLY LOCATION Strap The location of the Upper Anchorage Straps ‘Adjuster’ is adjustable for ease of installation and ease of use. Rearward Facing (Type A) Step 1: Pull adjuster and strap to extend the location of the Adjuster adjuster assembly (see Figure 2). -
Page 14: Shoulder Slot Height
INSTALLATION SHOULDER SLOT HEIGHT Step 1: Turn the restraint so that the back of the seat is facing you. Step 2: Remove each shoulder harness through the gates in the spreader plate (see Figure 1 & 4). Step 3: Pull the shoulder harness straps through the HARNESS shoulder slot holes in the seat body and cover. -
Page 15: Installing In Vehicle
INSTALLATION INSTALLING IN VEHICLE Place the child restraint on the vehicle seat. Ensure Step 1: Upper recline section is swung forward and the restraint is Anchorage Adjuster fully reclined with the restraint directly in line with Strap anchorage point. Step 2: Make sure upper anchorage strap is as in illustration (Figures 1 and 2) i.e. -
Page 16: Installing In Vehicle
INSTALLATION INSTALLING IN VEHICLE Step 4: Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt firmly up in direction of the blue arrow in Figure 4. Pass lap (This will tighten the lap belt across the seat base). -
Page 17: Installing In Vehicle
INSTALLATION INSTALLING IN VEHICLE Step 6: Adjuster Connect upper anchorage strap to anchorage fitting Upper Upper and adjust firmly. Anchorage Anchorage Strap Strap Guide Tighten till slack is removed. In certain vehicles an extension strap may be needed. Do not overtighten upper anchorage strap. Safe Grip (red belt clamp) Ensure upper anchorage strap is passed through... -
Page 18: Use
USING INBUILT HARNESS (H) Harness Upper Anchorage Adjuster Strap Strap Step 1: Ensure the restraint has been installed & setup as per “SET UP” & “INSTALLATION” (refer page 10 & 12). Step 2: Lengthen the harness in excess of what is needed before placing the baby in the car seat. -
Page 19: Release Infant
TO RELEASE INFANT To release your child from the restraint simply press the harness buckle and carefully remove your child from the seat (refer Figure 1). NOTE: If upper anchorage strap has been loosened to allow easier placing of the baby in the restraint, tighten the upper anchorage strap so it has no slack in it. -
Page 20: Information & Warnings
CHILD SEAT CHILD SEAT (Forward Facing) INFORMATION & WARNINGS To be used in a forward-facing position by children whose shoulders are above the lower shoulder height marker (approximately 6 months of age) until their shoulders reach the upper shoulder height marker (approximately 4 years of age). TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE FRONT/BACK OF MOST CARS WITH FORWARD FACING SEATS. -
Page 21: Cs4010/Cs4410 Child Restraint (Itemised List)
CS4010/CS4410 FORWARD FACING Shoulder height markers may be hidden under a pillow in the lowest position Front of Car VIEW A VIEW A SHOULDER HEIGHT MARKER UPPER ANCHORAGE STRAP ADJUSTER HARNESS SHOULDER STRAPS UPPER ANCHORAGE STRAP BUCKLE ASSEMBLY ATTACHMENT CLIP... -
Page 22: Shoulder Height Marker
SHOULDER HEIGHT MARKER SMALLER TODDLER (Using Inbuilt Harness) Shoulder height markers may be hidden under a pillow in the lowest position VIEW A Front of Car VIEW B LOWER LOWER LABEL LABEL Smaller Child from approximately 12 months of age Do not use as a forward-facing child restraint until the child’s shoulders are above the Lower shoulder height marker (Lower label). - Page 23 SHOULDER HEIGHT MARKER TALLER TODDLER (Using Inbuilt Harness) Do not continue to use the restraint if the child’s shoulder are above the Upper Label. VIEW B UPPER UPPER LABEL LABEL Front of Car VIEW B LOWER LOWER LABEL LABEL Taller Child to approximately 4 years of age Continue to use this forward-facing child restraint until the child’s shoulders reach the Upper...
-
Page 24: Selection Of Appropriate Padding Combination
SELECTION OF APPROPRIATE PADDING COMBINATIONS Determine whether your child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations. CONVERTING TO CHILD SEAT RECLINED POSITION Upright Recline Ensure the recline section is swung... -
Page 25: Installation
INSTALLATION CORRECT SHOULDER HEIGHT The correct height for the shoulder straps is very important for the optimum performance of the restraint. The shoulder strap slots used in forward facing position are the upper and middle positions. Front of vehicle 25mm IMPORTANT The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not... - Page 26 INSTALLATION SHOULDER SLOT HEIGHT PULL HARNESS IMPORTANT STRAPS The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not more than 25mm below the child’s shoulders. METAL With the child correctly sitting in the restraint, check SPREADER which set of slots (in the plastic shell of the restraint) PLATE...
- Page 27 Install the upper anchorage fitting as shown on page PULL TO 3 & 4 of these instructions ATTACH TIGHTEN Hook the attachment clip to the anchor fitting. Ensure there are no twists in the upper anchorage strap (Refer to Figure 2) Step 5: Pull to tighten to remove all the slack, from the upper anchorage strap.
-
Page 28: Installing In Vehicle
INSTALLATION INSTALLING IN VEHICLE Step 7: Push down on the base of the restraint (with knee or Lap and hand) whilst pulling the sash section of the vehicle sash belts belt firmly up in direction of the yellow arrow in Figure pass across 5. -
Page 29: Use
USING INBUILT HARNESS Step 1: Ensure the restraint has been installed and set up as per “Set Up” and “Installation” (Refer page 23 & 24). PULL TO PULL TO Step 2: Lengthen the harness in excess of what is needed LENGTHEN LENGTHEN before placing the child in the car seat. -
Page 30: To Remove Cover / To Replace Cover
The child restraint cover has been manufactured to meet the Australian Standards requirements for flammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support. SEAT COVER VERY IMPORTANT Only use this child restraint with the cover supplied or a manufacturer- Authorised replacement cover with identical shoulder height markers TO REMOVE COVER... -
Page 31: Cleaning / Care And Maintenance
CARE OF RESTRAINT IMPORTANT Use only mild soap and water to clean all parts of the CS4010/CS4410 Child Seat. Do not use chemicals or cleaning agents Cold water only to be used and to be rinsed well Do not dry clean or tumble dry Do not bleach. -
Page 32: Harness Buckle
Harness Tongues and Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact InfaSecure Customer Service. Figure 2 Step 5: Refit the harness buckle to the restraint with the red button facing out and feeding each 3-bar slide through appropriate slot. -
Page 33: Extension Straps
CARE OF RESTRAINT Check the upper anchorage attachment clip to ensure plastic retainer clip is still present. Check the buckles “click” when you engage tongues and is not sluggish or sticky in operation. Check the harness adjuster is operating. Extension straps, not included in this package, may be required for vehicles without a fixed parcel shelf. TYPE A INFANT SEAT If required contact Infa Secure for... -
Page 34: Accessories
ACCESSORIES HEAD PILLOW/INFANT PILLOW (if fitted) The head pillow/infant pillow (if fitted) is designed to provide extra comfort. Step 1: Position the bottom of the pillow’s side wings at the top of the child’s shoulders. Step 2: Feed the upper and lower pillow straps through the nearest slots. - Page 35 ACCESSORIES SHOULDER PADS (if fitted) The shoulder pad is designed to add extra comfort for baby or child. STANDARD Step 1: Separate press-studs and remove the STANDARD shoulder pads from harness Step 2: To attach shoulder pads, ensure press studs SPREADER face away from the child and re-attach.
- Page 36 ACCESSORIES “PRESS” “PRESS” SUN HOOD (if fitted) The Sun Hood (if fitted) is designed to provide “PRESS” additional sun shade. Step 1: Attach the sun hood using the press studs. SEAT PROTECTOR (if fitted) The seat protector is designed to protect your car’s seat.
- Page 37 NOTES...
- Page 38 NOTES...
- Page 39 NOTES...
-
Page 40: Customer Service
InfaSecure Warranty Details InfaSecure Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty. When used for commercial use the period is limited to six months.
