Step 4: Push down on the base of the restraint (with knee or
hand) whilst pulling the sash section of the vehicle
belt firmly up in direction of the blue arrow in Figure 4.
(This will tighten the lap belt across the seat base).
Whilst continuing to pull the sash section up, attach
the Safe Grip red belt clamp on the sash section
ONLY, as close as possible above the buckle tongue
assembly. (Refer to Figure 5 and Instruction for
installing the Safe Grip red clamp below)
Step 5: Ensure the excess slack in the sash belt, is fed back
towards the seat belt.
SAFE GRIP BELT CLAMP
The Safe Grip (red belt clamp) locks the lap
belt to ensure a firm installation, and avoids
slack in the lap belt.
To install the Safe Grip (red belt clamp), open it
and clamp the "sash section" ONLY of the vehicle
seat belt by closing the barrel section of the red
belt clamp in the direction of arrow 1 in Figure 5
and then locking with the toggle section by
pushing in the direction of arrow 2 in Figure 5
when the Safe Grip (red belt clamp) is secured in
place, the lap section is now tightly holding your
child restraint in place, independent of the sash
section. The Safe Grip (red belt clamp) must be
removed when the child restraint is not installed
to allow other users to use the seat belt as a
lap/sash seat belt. Always keep the Safe Grip
(red belt clamp) in pocket provided when not in use.
INSTALLATION

INSTALLING IN VEHICLE

15
Pass lap
and sash belt
through the seat.
Note: Ensure the
belts are under
foam padding.
"CLICK"
Buckle & Tongue
Assembly
& Sash Belt
PRESS
SASH SECTION
TOGGLE
SECTION (2)
BUCKLE (A)
(AND TONGUE)
Lap Belt

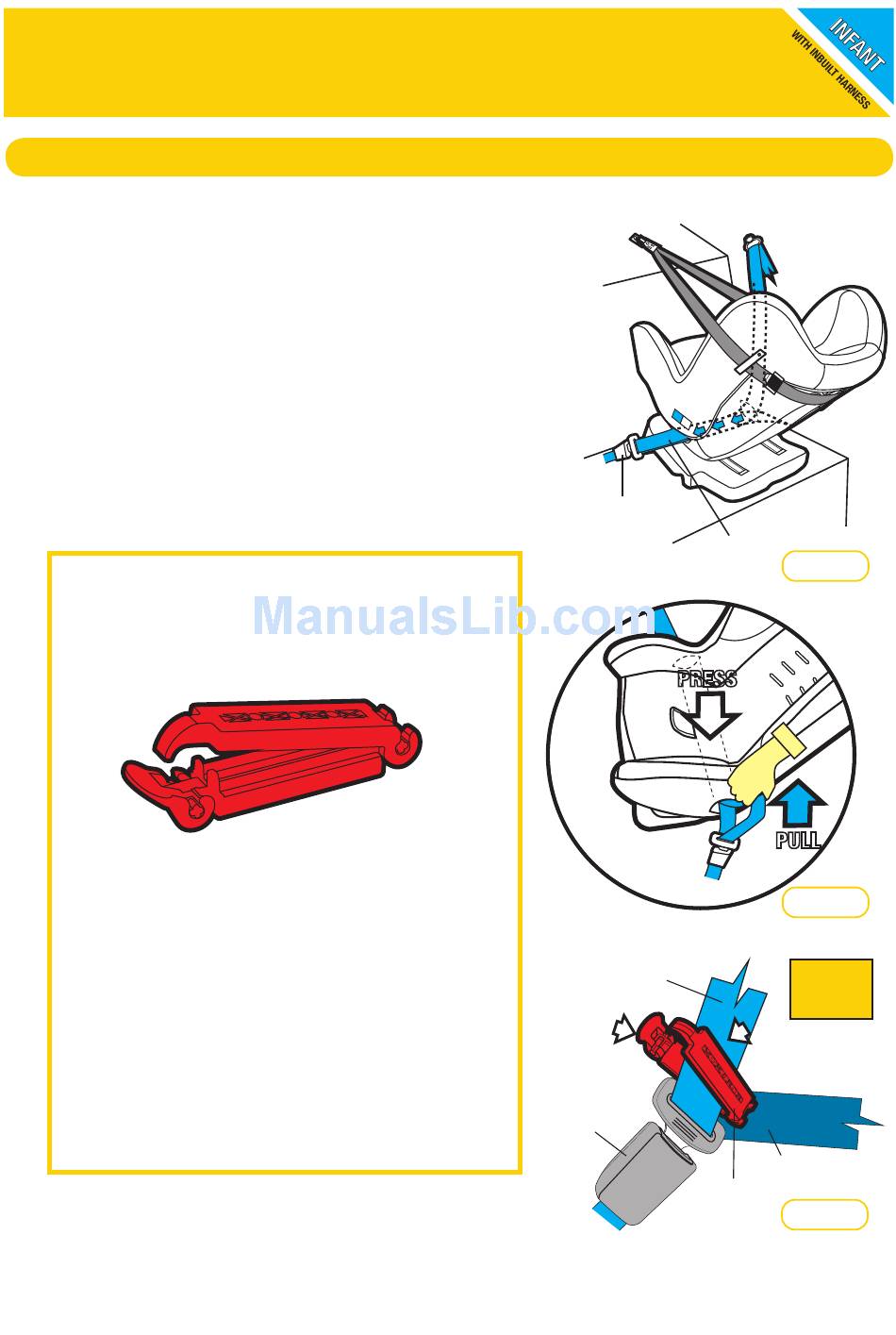

Figure 3
PULL
Figure 4
ATTACH TO
SASH SECTION
ONLY
BARREL SECTION (1)
LAP SECTION
SAFE GRIP (B)
Figure 5
(red belt clamp)
