Infasecure CS4313 Replacement

CS4313, CS4413
NOTE: Please read these instructions thoroughly before beginning, as the harness buckle of this
restraint is an important safety feature, please make sure that the buckle is replaced as per these
Please do not hesitate to contact our service department if you have any difficulties or have any

REMOVAL INSTRUCTIONS

1. Remove restraint from vehicle, remove seat base cover.
Place seat into the full recline position and turn restraint
upside down on a flat surface.

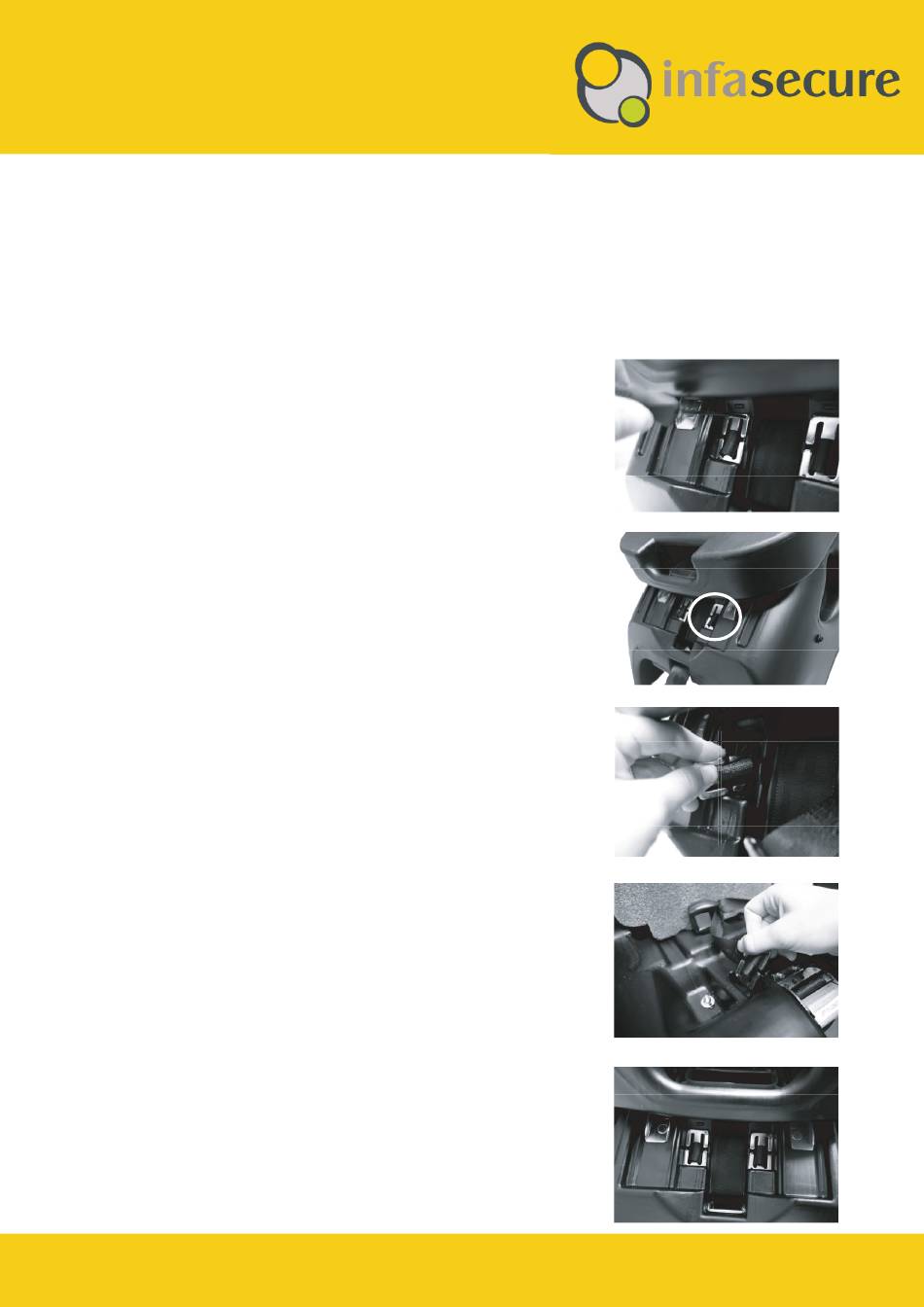

2. On the underside of the seat you will find two metal
plates together (See Fig.1) these are the attachment
plates for the Harness Crotch Buckle.
3. Using a small Phillips head screw driver, remove the two
small screws (If fitted) from the top right corner of both of
the metal plates. Place these in a safe place. (See Fig1
& Fig.2)
4. Turn the metal plates sideways and push back through
the slots in the seat shell. (See Fig.3) This will release
the buckle from the seat for washing or replacement.
5. Turn the seat upright.
6. Take the washed or new harness buckle and pass the
metal plates through the slots provided in the seat shell.
(See Fig.4 and Fig.6 for buckle orientation)
7. Turn the seat upside down.
8. Lie the metal plates flat in their sunken position and
using your small Phillips head screw driver replace the
two small screws into the upper right corner of the metal
plates.
9. Turn the seat upright and replace the seat base cover.
(See Fig.5)
Your restraint is now ready to be reinstalled as per the
manufacturers instruction manual.
ISSUE A_1

HARNESS BUCKLE REPLACEMENT

instructions and securely attached.
questions regarding the replacement procedure.
110-114 Old Bathurst Road, Emu Plains NSW 2750.
www.infasecure.com.au
ou have any difficulties or have any
procedure.
Fig.1 Fig.1
o
of
Fig.2 Fig.2
Fig.3 Fig.3
Fig.4 Fig.4
Fig.5 Fig.5
Customer Care:
AU: 1300 92 4632
NZ: +61 2 4728 8090
