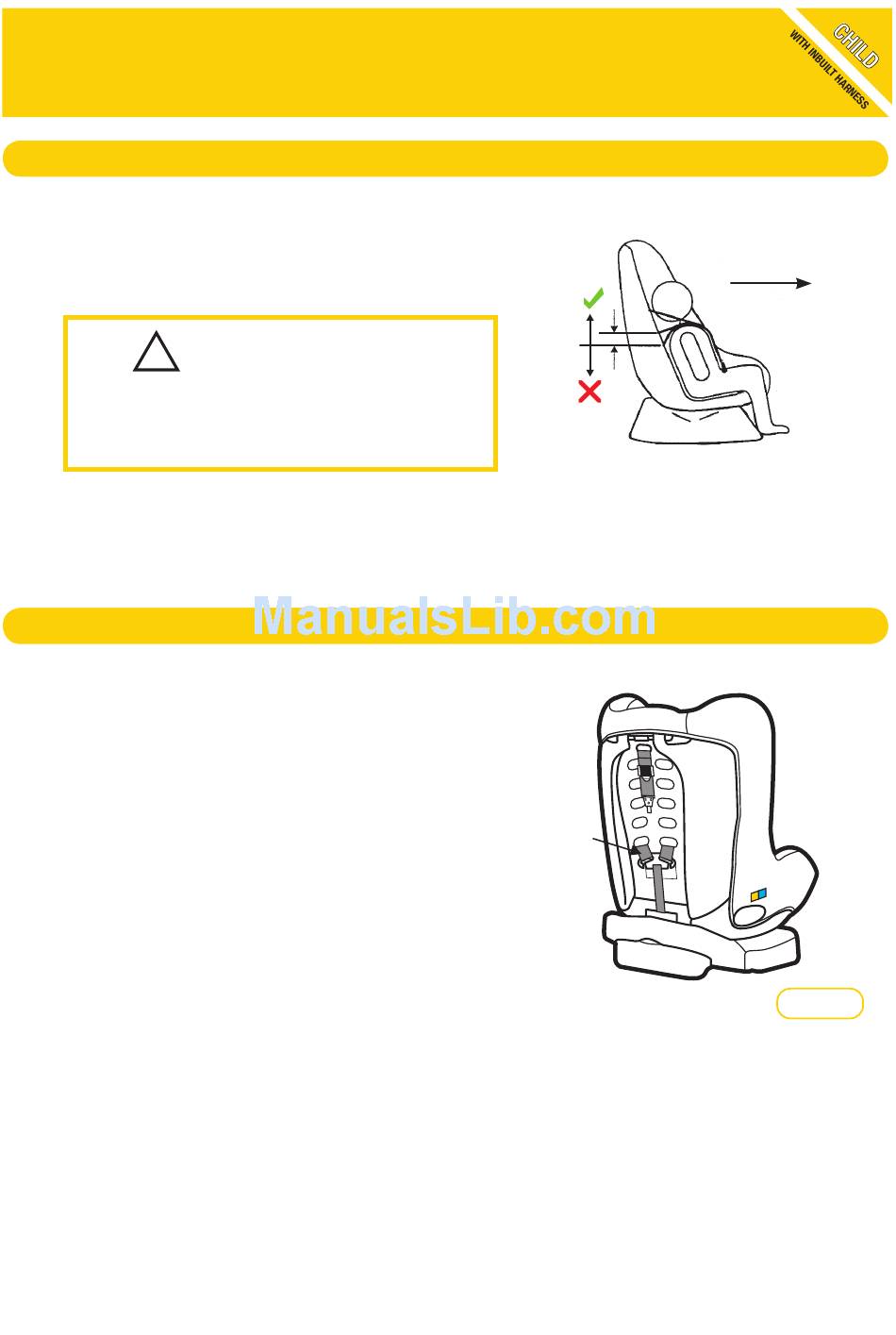

Installation; Correct Shoulder Height; Shoulder Slot Height; Installation Correct Shoulder Height - Infasecure CS4010 Instructions Manual

The correct height for the shoulder straps is very
important for the optimum performance of the
restraint. The shoulder strap slots used in forward
facing position are the upper and middle positions.
!
The shoulder straps must be in the slots which
are nearest to the child's shoulders, but not
more than 25mm below the child's shoulders.
The shoulder strap slots used in Child Seat mode are
between the lower and upper shoulder height
markers (refer Pages 21 & 22).
Step 1: Turn the restraint so that the back of the seat is facing you.
Step 2: Remove each shoulder harness through the gates in
the spreader plate (see Figure 1 & 4).
Step 3: Pull the shoulder harness straps through the
shoulder slot holes in the seat body and cover. They
are now loose in the front of the seat.
Step 4: Push the ends of the shoulder harness straps
through the appropriate shoulder slot holes in the
cover and seat body for the child's shoulder height.
Step 5: The shoulder harness straps go directly from the
shoulder slot holes to the spreader plate. Thread
each shoulder harness strap back onto the metal
spreader plate through the gate (see Figure 4).

INSTALLATION

CORRECT SHOULDER HEIGHT

IMPORTANT

SHOULDER SLOT HEIGHT

25mm
HARNESS
STRAPS
24
Front of vehicle
Figure 1
