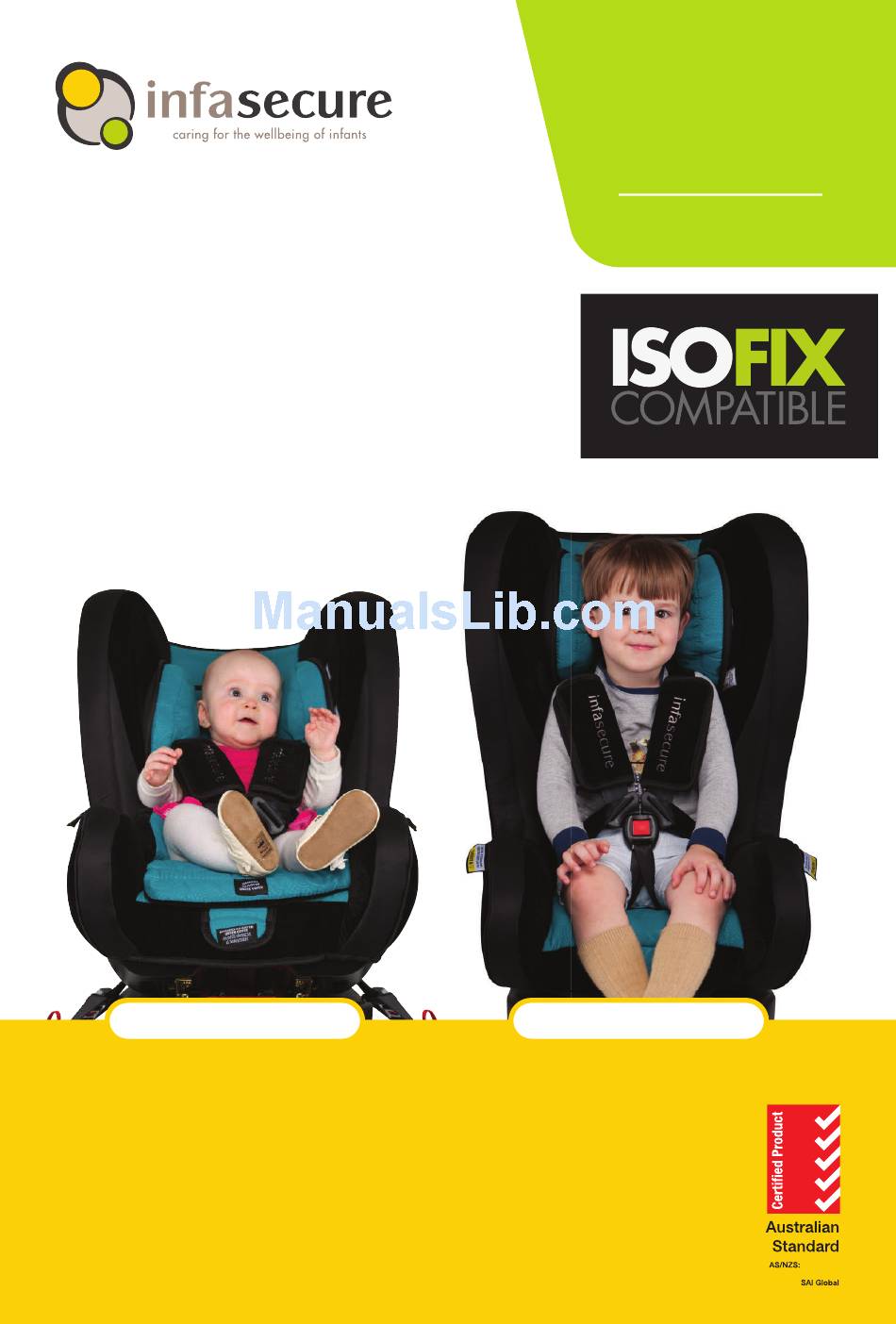

Convertible Car Seat
I N FA N T S E AT T O C H I L D S E AT
CS4513 / CS4613
REARWARD FACING
(Rearward Facing) Suitable for children from birth to approximately 12 months* of age.
(Forward Facing) Then suitable for children to approximately 4 years* of age.
Instruction Manual
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED
ON THE CHILD RESTRAINT
*All references to age are to an average proportioned child. Children vary in shapes and sizes.
The ages outlined above is an approximation only.
The photo displayed is indicative of the type of restraint and may vary slightly depending on the model.
0 4
FORWARD FACING
1
TO
YEARS
YEARS
ISOFIX COMPATIBLE
Licence No. 25324
1754:2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS4513 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infasecure CS4513

Summary of Contents for Infasecure CS4513

  • Page 1 ISOFIX COMPATIBLE Convertible Car Seat I N FA N T S E AT T O C H I L D S E AT CS4513 / CS4613 REARWARD FACING FORWARD FACING (Rearward Facing) Suitable for children from birth to approximately 12 months* of age.

  • Page 2: Table Of Contents

    Please read carefully the whole of the instructions for installation and, in the event of doubt about the method of installation, to consult InfaSecure or agent, or a child restraint fitter, or in New Zealand, to consult the agent for the vehicle.

  • Page 3: Information

    Information This instruction manual covers various models under the Model number CS4513 / CS4613. These child restraints are installed in the rear of the vehicle and can be used either rearward-facing or forward-facing. They can either be installed in the vehicle using the vehicle seatbelt &...

  • Page 4: Warnings

    Warnings WARNINGS • Use the restraint exactly as shown in the instructions. • Supervision of children is needed because they may be able to undo buckles. • DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR. • Do not alter or modify this restraint. •...
  • Page 5 Warnings WARNINGS • THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT. • THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE POINT IN THE CAR.

  • Page 6: Restraint Guide

    Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available.

  • Page 7: Padding - Combination Guide

    Padding / Inserts Combination Guide MODE INFANT SEAT (Small Infant) REARWARD FACING INFANT SEAT (Large Infant) REARWARD FACING CHILD SEAT FORWARD FACING The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.

  • Page 8: Infant Seat

    Infant Seat Infant Seat (Rearward Facing) THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN TYPE A2 To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder height marker (approximately 12 months of age). TYPE B Then to be used in a forward-facing position until the child’s shoulders reach the upper shoulder height marker (approximately 4 years of age).

  • Page 9: Cs4513 / Cs4613 Child Restraints (Itemised List)

    Infant Seat Model CS4513 CS4613 ISOFIX VIEW A Compatible VIEW A Seatbelt VIEW A 1. Shoulder Height Markers 10. Vehicle Seat belt 2. Pillow (if fitted) 11. Safe Grip Red Belt Clamp (supplied with restraint) 3. Comfort Cover 12. “REARWARD-FACING SEAT BELT PATH” Marker (each side of restraint - coloured blue) 4.

  • Page 11: Set Up General

    Australian/New Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound bars or mechanisms to fulfil these requirements. The CS4513/CS4613 Child restraint has also been designed to be a compact restraint to enable multiple restraints to be used in the rear of most vehicles.

  • Page 12: Selection Of Appropriate Padding Combination

    Infant Seat Set Up Selection of Appropriate Padding Combinations Determine whether your infant/child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations. WARNING To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.
  • Page 13 Infant Seat Set Up Converting to Infant Seat Adjuster assembly location Top Tether Strap The position of the Adjuster (Top Tether strap) is adjustable for ease of installation and ease of use. Rearward Facing (Type A) Step 1: Pull adjuster and strap to extend the location of the adjuster assembly (refer Figure 1).

  • Page 14: Shoulder Height

    Infant Seat Set Up Correct Shoulder Height The correct height for the shoulder straps is very important for the optimum performance of the Front of vehicle restraint. IMPORTANT The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not lower than the child’s shoulders.
  • Page 15 Infant Seat Setup Shoulder slot Height Step 1: Loosen harness to allow spreader plate to rise from under the restraint. Turn the restraint so that the back of the seat is facing you. Step 2: Remove each shoulder harness through the gates in the spreader plate (see Figure 1 &...

  • Page 16: Isofix Compatible Restraint

    Infant Seat ISOFIX Compatible Restraint ISOFIX lower anchorages Newer vehicles have one or more seating positions with ISOFIX anchorages. If the vehicle is equipped with ISOFIX anchorage, the lower anchor points may be visible at the vehicle seat bight . If not visible, they may be marked with this symbol.

  • Page 17: Accessing Isofix Lower Anchorage Connectors

    Infant Seat ISOFIX Compatible Restraint Accessing the flexible ISOFIX Lower Anchorage Connectors (LAC) IMPORTANT The straps for the flexible ISOFIX Lower Anchorage Connectors (LAC) are stored in an compartment beneath the seat cover. Step 1: Remove the insert/s to access the seat cover (refer Figure 1).

  • Page 18: Installing Using Isofix Lower Anchorage Connectors

    Infant Seat ISOFIX Compatible Restraint Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Front of Car Rearward facing mode Step 1: Fully recline the restraint Step 2: Swing the Recline Section forward (refer Figure 1) Install the restraint on the vehicle seat Step 1: Locate the ISOFIX lower anchorage points (refer to...
  • Page 19 Infant Seat ISOFIX Compatible Restraint Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Note: If no upper anchorage fitting is available refer Attachment Clip to Pages 54 & 55. Top Tether Strap Guide Locate the adjuster at the side of the restraint and Step 5: secure using the Top Tether Strap Guide (refer Figure 4 &...
  • Page 20 Infant Seat ISOFIX Compatible Restraint Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Step 7: Pull to tighten to remove all the slack, from the upper Top Tether anchorage strap. Do not overtighten as this could Strap Guide cause the restraint to lift off the vehicle seat (refer to Adjuster Figure 7).

  • Page 21: Installation

    Infant Seat Installation Installing Using Vehicle Seatbelts Place the child restraint on the vehicle seat. Ensure Step 1: Adjuster recline section is swung forward and the restraint is fully reclined with the restraint directly in line with anchorage point. Make sure Top Tether strap is as in illustration Step 2: (Figures 1 and 2) i.e.
  • Page 22 Infant Seat Installation Installing in Vehicle Push down on the base of the restraint (with knee or Step 4: hand) whilst pulling the sash section of the vehicle belt firmly up in direction of the blue arrow in Figure 4. Pass lap (This will tighten the lap belt across the seat base).
  • Page 23 Infant Seat Installation Installing in Vehicle Top Tether Note: If no upper anchorage fitting is available refer Strap Guide Attachment Clip to Pages 54 & 55. Adjuster Step 5: Locate the adjuster at the side of the restraint and secure using the Top Tether Strap Guide (refer Figure 6 &...
  • Page 24 Infant Seat Installation Installing in Vehicle Step 7: Pull to tighten to remove all the slack, from the upper Top Tether anchorage strap. Do not overtighten as this could Strap Guide cause the restraint to lift off the vehicle seat (refer to Adjuster Figure 9).

  • Page 25: Use

    Infant Seat Using Inbuilt Harness Step 1: Ensure the restraint has been installed and set up as per “Set Up” and “Installation” (refer Page 10 - 23) Harness Top Tether Adjuster Strap Strap Step 2: To lengthen the harness “LIFT” the harness adjuster (refer Figure 2) whilst grasping both shoulder harness straps and pulling.
  • Page 26 Infant Seat Using Inbuilt Harness Insert either tongue into the buckle followed by the Step 4: other tongue until a “CLICK” is heard. Should the second tongue not insert, press the red button and reinsert the tongues. Ensure secure engagement by pulling the harness strap (refer Figure 4).
  • Page 27 Infant Seat Using in-built harness IMPORTANT LOOSE HARNESS DANGEROUS. The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children. Always adjust the height of the shoulder straps as the child grows.

  • Page 28: To Release Child

    Infant Seat To Release Infant To release your child from the restraint simply press the harness buckle and carefully remove your child from the restraint (refer Figure 1). NOTE: If Top Tether strap has been loosened to allow easier placing of the baby in the restraint, always retighten the Top Tether strap so it has no slack in it.

  • Page 29: Child Car Seat Information

    Child Car Seat Child Car Seat (Forward Facing) THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN TYPE A2 To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder height marker (approximately 12 months of age). TYPE B Then to be used in a forward-facing position until the child’s shoulders reach the upper shoulder height marker (approximately 4 years of age).

  • Page 30: Shoulder Height Marker

    Child Car Seat Shoulder Height Marker Smaller Toddler (using inbuilt harness) Shoulder height markers may be hidden under a pillow VIEW A Front of Car VIEW B LOWER LOWER LABEL LABEL Smaller Child from approximately 12 months of age ABOVE Do not use as a forward-facing child restraint until the child’s shoulders are Lower shoulder height marker (Lower label).
  • Page 31 Child Car Seat Shoulder Height Marker Taller Toddler (using inbuilt harness) Do not continue to use the restraint if the child’s shoulder are above the Upper Label. UPPER VIEW B LABEL Front of Car VIEW B LOWER LOWER LABEL LABEL Taller Child to approximately 4 years of age...

  • Page 32: Cs4513 / Cs4613 Child Restraints (Itemised List)

    Child Car Seat Model CS4513 Forward facing CS4613 Shoulder height markers may be hidden under a pillow ISOFIX Compatible Seatbelt 10. Vehicle Seat belt 1. Shoulder Height Markers 11. Safe Grip Red Belt Clamp (supplied with restraint) 2. Pillow (if fitted) 12.

  • Page 33: Set Up

    Child Car Seat Set Up Selection of appropriate padding combinations Determine whether your child requires the additional padding provided with this restraint, to combinations. Converting To Child Seat Recline Reclined Position Upright Front Ensure the recline section is swung rearward (see of Car Figure 1).

  • Page 34: Shoulder Height

    Child Car Seat Setup Correct shoulder height The correct height for the shoulder straps is very important for the optimum performance of the restraint. The shoulder strap slots used in forward facing position are the upper and middle positions. FRONT OF VEHICLE IMPORTANT The shoulder straps must be in the slots which...
  • Page 35 Child Car Seat Setup Shoulder slot height Step 1: Loosen harness to allow spreader plate to rise from under the restraint. Turn the restraint so that the back of the seat is facing you. Step 2: Remove each shoulder harness through the gates in the spreader plate (see Figure 1 &...

  • Page 36: Isofix Compatible Restraint

    Child Car Seat ISOFIX Compatible Restraint ISOFIX lower anchorages Newer vehicles have one or more seating positions with ISOFIX anchorages. If the vehicle is equipped with ISOFIX anchorage, the lower anchor points may be visible at the vehicle seat bight . If not visible, they may be marked with this symbol.

  • Page 37: Accessing Isofix Lower Anchorage Connectors

    Child Car Seat ISOFIX Compatible Restraint Accessing the flexible ISOFIX Lower Anchorage Connectors (LAC) IMPORTANT The straps for the flexible ISOFIX Lower Anchorage Connectors (LAC) are stored in an compartment beneath the seat cover. Step 1: Remove the insert/s to access the seat cover (refer Figure 1).

  • Page 38: Installing Using Isofix Lower Anchorage Connectors

    Child Car Seat ISOFIX Compatible Restraint Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Forward facing mode Front Step 1: Fully recline the restraint of Car Step 2: Swing the Recline Section rearward (refer Figure 1).

  • Page 39: Installation

    Child Car Seat Installation Installing using flexible ISOFIX Lower Anchorage Connectors (LAC) Note: If no upper anchorage fitting is available refer to Pages 54 & 55. Hook the attachment clip to the anchor fitting. Ensure Step 5: there are no twists in the top tether strap (refer to Figure 4).

  • Page 40: Installing Using Vehicle Seatbelt

    Child Car Seat Installation Installing Using Vehicle Seatbelt Step 1: Place the restraint in desired upright or reclined position, with the back against the back of the vehicle seat, directly in line with the anchorage point (refer Figure 1). IMPORTANT Ensure that you use the FORWARD-FACING BELT PATH FORWARD...
  • Page 41 Child Car Seat Installation Installing Using Vehicle Seatbelt Pass lap Step 2: Feed adult lap or lap/sash belt through the belt path and sash belt opening, ensure the seat belt is under the cover & through the seat. between the layer of foam and the plastic seat base. Note: Ensure the (refer Figure 2 &...
  • Page 42 Child Car Seat Installation Installing Using Vehicle Seatbelt SAFE GRIP BELT CLAMP The Safe Grip (red belt clamp) locks the lap ATTACH TO belt SASH SECTION SASH SECTION slack in the lap belt. ONLY TOGGLE SECTION (2) BARREL SECTION (1) BUCKLE (A) (AND TONGUE) LAP SECTION...
  • Page 43 Child Car Seat Installation Installing Using Vehicle Seatbelt Note: If no upper anchorage fitting is available refer to Pages 54 & 55. Hook the attachment clip to the anchor fitting. Ensure Step 5: there are no twists in the top tether strap (refer to Figure 7).

  • Page 44: Use

    Child Car Seat Using Inbuilt Harness Step 1: Ensure the restraint has been installed and set up as PULL TO PULL TO per “Set Up” and “Installation” (refer Page 32 - 42). LENGTHEN LENGTHEN Step 2: To lengthen the harness “LIFT” the harness adjuster (refer Figure 1) whilst grasping both shoulder harness straps and pulling.
  • Page 45 Child Car Seat Using Inbuilt Harness Step 4: Insert either tongue into the buckle followed by the other tongue until a “CLICK” is heard. Should the second tongue not insert, press the red button and reinsert the tongues. Ensure secure engagement by pulling the harness strap (refer Figure 3).

  • Page 46: To Release Child

    Child Car Seat Using in-built harness Step 6: Check harness tightness by using 2 fingers at the child’s shoulders (refer Figure 6). If required repeat Step 5. IMPORTANT A LOOSE HARNESS IS DANGEROUS. provide extra support and comfort for small babies.

  • Page 47: Care Of Restraint

    1. Main Cover VERY IMPORTANT Only replace the cover with a InfaSecure supplied replacement cover with identical shoulder height markers or a replacement cover meeting AS/NZS 8005. Care and Maintenance Regular care of the restraint will ensure safety of your child.

  • Page 48: Cleaning

    Cleaning IMPORTANT Use only mild soap and water to clean all parts of the CS4513 / CS4613 Convertible Car Seat. Do not use chemicals or cleaning agents Cold water only to be used and to be rinsed well Do not dry clean or tumble dry Do not bleach.

  • Page 49: Harness Buckle

    Harness Tongues and Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact InfaSecure Customer Service 02 4720 8090. Step 5: Refit the harness buckle to the restraint with the red...

  • Page 50: Remove & Replace Covers

    Remove cover *Replace in reverse. Figure 1 Extension Straps If required contact InfaSecure for nearest supply location. Extension straps, not included in this package, may be required for vehicles without a fixed parcel shelf. TYPE A INFANT SEAT If required contact Infa Secure Customer Service 02 4728 8090 for nearest supply location.

  • Page 51: Accessories

    Accessories Follow the instructions covering the use of accessories provided with this child restraint or spare parts provided by InfaSecure for this restraint. IMPORTANT Use of unauthorised aftermarket accessories (i.e items not provided in this box with the child restraint), can reduce the safety provided by the child restraint and may cause injury or death.
  • Page 52 Accessories SHOULDER PADS (if fitted) The shoulder pad is designed to add extra comfort for baby or child. STANDARD Step 1: Separate press-studs and remove the STANDARD shoulder pads from harness Step 2: To attach shoulder pads, ensure press studs SPREADER face away from the child and re-attach.
  • Page 53 Accessories HEAD PILLOW/INFANT PILLOW (if fitted) The head pillow/infant pillow (if fitted) is designed to provide extra comfort. Step 1: Position the bottom of the pillow’s side wings at the top of the child’s shoulders. Feed the upper and lower pillow straps through the Step 2: nearest slots.
  • Page 54 Accessories SEAT PROTECTOR (if fitted) The seat protector is designed to protect your car’s seat. STANDARD STANDARD Step 1: Position the front flap with pockets, at the front of the rear seat and position the mat rearwards to obtain a flat fit. FULL LENGTH Step 1: Position the front flap with pockets, at the...

  • Page 55: Anchorage Fittings

    ANCHORAGE POINTS. REFER TO A CHILD restraint) RESTRAINT FITTING STATION IF NO CAR If so ring InfaSecure on (Aust) (02) 4728 8090 for ANCHORAGE POINTS ARE IN THE MOTOR CAR. nearest supply location. • THIS RESTRAINT IS NOT SUITABLE FOR...
  • Page 56 Anchorage Fittings For cars not fitted with a child restraint anchorage point For Sedans Only Drill a 9mm diameter hole in the parcel shelf on the centre line of the seating position as shown in Figure 1C. Hole must be no closer than 200mm from the front of the back seat.

  • Page 57: Insurers Information

    NOTICE TO INSURANCE COMPANY CHILD RESTRAINT INVOLVED IN AN ACCIDENT All InfaSecure child restraints are manufactured to Australian/New Zealand Standards AS/NZS1754 which requires us to advise users of child restraints to "Destroy the entire restraint if it has been in use in a severe crash, even if no damage is obvious".
  • Page 58 Notes:...
  • Page 59 Notes:...
  • Page 60 INFASECURE WARRANTY DETAILS InfaSecure Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty. When used for commercial use the period is limited to six months.
