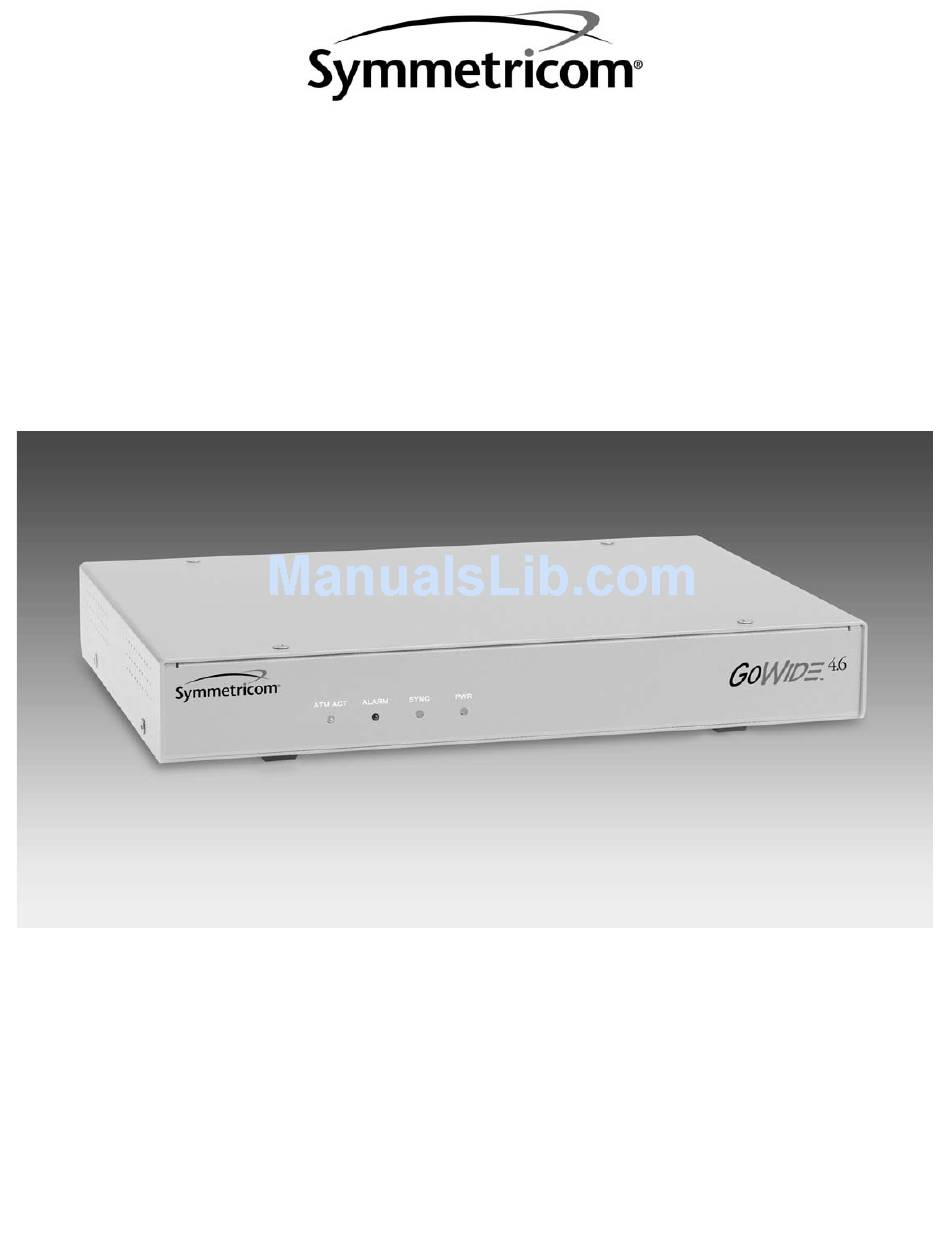

GoWide 4.6
G.shdsl Bridge/Router
User Manual
097-91022-01
Issue 1
February 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoWide 4.6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmetricom GoWide 4.6

  • Page 1 GoWide 4.6 G.shdsl Bridge/Router User Manual 097-91022-01 Issue 1 February 2002...
  • Page 2 Copyright © 2002 Symmetricom, Inc. All rights reserved. Printed in U.S.A. All product names, service marks, trademarks, and registered trademarks used in this document are the property of their respective owners. GoWide 4.6 G.shdsl Bridge/Router – User Manual Contents 097-91022-01 Issue 1: February 2002...

  • Page 3: Contents

    Safety: FCC Part 68, EN60950, UL 1950, C/UL to CSA 22.2 No.950, TUV, IC CS03 Emissions: FCC Part 15 Class B, EN55022/CISPR22 Class B Immunity: EN55024 Warning: Use a minimum of 26AWG line cord for the DSL connection. GoWide 4.6 G.shdsl Bridge/Router – User Manual Contents 097-91022-01 Issue 1: February 2002...

  • Page 4: Packing List

    Packing List • One GoWide 4.6 G.shdsl Bridge/Router • One Power cord • One CD with documentation • One DSL cable (RJ-11) • One Ethernet cable (RJ-45) GoWide 4.6 G.shdsl Bridge/Router – User Manual Contents 097-91022-01 Issue 1: February 2002...

  • Page 5: Table Of Contents

    GoWide 4.6 Front Panel..... . . 14 GoWide 4.6 Rear Panel ..... . . 15 Parameters from Service Provider .
  • Page 6 GoWide 4.6 Configuration ....56 GoWide 4.6 Login ..... . . 56 Sample Configuration .
  • Page 7 GoWide 4.6 Configuration ....90 GoWide 4.6 Login ..... . . 90 Sample Configuration .
  • Page 8 Interface Pin Assignments ..... . 126 Appendix C Update GoWide 4.6 Firmware Update GoWide 4.6 Firmware ....128 Appendix D G.shdsl Configuration G.shdsl Configuration .

  • Page 9: Chapter 1 Product Description

    Chapter Chapter 1 Product Description This chapter provides a description of the GoWide 4.6.

  • Page 10: Gowide 4.6 Feature Specifications

    Traffic shaping • OAM (I.610) support • PPPoE Relay • PPPoE Client LAN Features • DHCP Server • DHCP Client • DHCP Relay • DNS Relay GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 11: Routing Features

    Console port for local management • Telnet configuration • Command line interface • Firmware upload via TFTP/BOOTP and Web-based management • Alarm status and power indicators • Event logging GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 12: System Requirements

    TCP/IP router, hub, and other network devices with Ethernet 10BaseT intefaces • Computers with an Ethernet 10BaseT • Operating systems that support Ethernet with an IP stack GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 13: Gowide 4.6 Hardware Specifications

    Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Humidity: 5% to 90% RH, non-condensing Power • 100 V AC to 240 V AC • 50 Hz to 60 Hz • Auto ranging GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 14: Gowide 4.6 Front Panel

    Figure 1 shows the GoWide 4.6 front panel. Figure 1. GoWide 4.6 Front Panel SYNC POWER ATM ACT ALARM The GoWide 4.6 front panel includes four status indicators as described in Table A. Table A. Front Panel Status Indicators LEDs COLOR EXPLANATION ATM ACT...

  • Page 15: Gowide 4.6 Rear Panel

    SWITCH POWER SWITCH PORTS PORT PORT The GoWide 4.6 rear panel connectors and switches are described in Table B. Table B. Rear Panel Connectors and Switches Nomenclature Explanation POWER SWITCH Allows GoWide to be turned ON or OFF. AC POWER A receptacle for the power cord.

  • Page 16: Parameters From Service Provider

    • Domain Address 010 . 010 . 012 . 40 • VCI value (default: vci=35) • VPI value (default: vpi=0) • Domain Name • Host Name GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 17: Worksheet

    If VCI/VPI values are the same as the default values, no changes are required in the bridge mode. Note: An extra copy of this page is provided on the last page of this manual. GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...

  • Page 18: Default Settings

    : password (minimum 4 alphabetic characters) • Language : English ATM Module • • : 35 • Encapsulation type : LLC • Encapsulation protocol : RFC1483 (Bridged) GoWide 4.6 G.shdsl Bridge/Router – User Manual Product Description 097-91022-01 Issue 1: February 2002...
  • Page 19 Chapter 2 Installation This chapter provides installation information for the GoWide 4.6.

  • Page 20: Hardware Installation

    GoWide 4.6. Turn on the GoWide 4.6 by placing the ON/OFF switch in the ON position. The Power LED must be a steady green. The Sync LED will initially be a blinking green. Once the connection is established, the Sync LED will become a steady green.

  • Page 21: Pc Configuration

    PC Configuration To configure the PC to communicate with the GoWide 4.6, refer to the appropriate mode configuration chapter. These chapters are as follows: • Chapter 3, Bridge Mode Configuration • Chapter 4, Router Mode Configuration • Chapter 5, Gateway Mode Configuration...

  • Page 22: Setting Factory Defaults

    Figure 4. Change Password Screen Setting Factory Defaults The GoWide 4.6 can be set to the Factory Default settings via the reset switch on the unit’s rear panel (see Figure 2). To reset the GoWide 4.6, press the reset button and hold down for 5 seconds while the unit is on.

  • Page 23: Chapter 3 Bridge Mode Configuration

    Bridge Mode Configuration Chapter This chapter provides information on the bridge mode configuration.

  • Page 24: Introduction

    For Windows 95/NT 4.0/2000/XP, please refer to the appropriate user manual. To configure a PC to communicate with the GoWide 4.6, do the following: Establish a TCP/IP connection to the GoWide 4.6. This is done by clicking the Start button and selecting Settings, Control Panel, and Network.
  • Page 25 Click OK and re-start the PC. The PC is now configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be configured to communicate with the GoWide 4.6 GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 26: Gowide 4.6 Configuration

    GoWide 4.6 Configuration GoWide 4.6 Login Procedure B describes the method for logging in to the GoWide 4.6. Procedure B. GoWide 4.6 Login Step Procedure Power up the computer (if not already powered up). Open the Internet Explorer Web browser.
  • Page 27 Figure 9. GoWide 4.6 Initial Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 28 Figure 10. GoWide 4.6 Status Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 29: Sample Configuration

    Figure 11 shows a default configuration setup between a PC and the GoWide 4.6. Figure 11. GoWide 4.6 Default Configuration Sample Configuration Figure 12 shows a sample configuration setup for GoWide 4.6 bridge mode. Figure 12. GoWide 4.6 Bridge Mode Configuration GoWide 4.6 G.shdsl Bridge/Router –...

  • Page 30: System Screen

    Step Procedure Login to the GoWide 4.6. Select Setup from the GoWide 4.6 toolbar. The System screen (Figure 13) is now displayed. Click the Bridge hyperlink in the System Menu. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual...
  • Page 31 Figure 13. System Screen System Toolbar Menu GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 32: Lan Port Configuration

    Enter the values for Local IP and Subnet Mask in the respective fields (Figure 15). Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 33 Figure 14. Configure LAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 34 Figure 15. LAN Port Settings Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 35: Wan Port Configuration

    CBR (Constant Bit Rate) – the user must specify the PCR. • VBR (Variable Bit Rate) – the user must specify the PCR, Sustainable Cell Rate (SCR), Burst Tolerance, and the maximum burst size. GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 36 Figure 16. Configure WAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 37: Wan Port Configuration Using Rfc1483

    Select the Quality of Service type: UBR (default setting), CBR, or VBR. A pop-up screen appears. Enter the appropriate information. Select the Encapsulation type: LLC (default setting) or VCMUX. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 38 Figure 17. RFC1483 Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 39: Wan Port Configuration Using Pppoe Relay

    Select the Encapsulation type: LLC, VCMUX, or Learning (default setting). Select the HDLC Header type: Enable, Disable, or Learning (default setting). Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 40 Figure 18. PPPoE Relay Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 41: Advanced Configuration

    (Figure 19). This option allows a user to restrict which hosts have access to the GoWide 4.6 via Telnet, FTP, and a Web browser. The user will use a host’s IP address to give them access. If a host is not specified, all hosts have access.
  • Page 42 Figure 19. Advanced Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 43 Figure 20. Access Manager Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 44: Save/Restart Configuration

    Save/Restart Configuration Clicking the Save/Restart hyperlink brings up the Save Your Configuration and Restart screen (Figure 21). Procedure H describes the method for saving a bridge mode configuration and restarting the GoWide 4.6. Procedure H. Save/Restart Screen Step Procedure Ensure that all displayed settings are correct.
  • Page 45 Click the OK button to save the configuration. Once the configuration is saved, a restart screen (Figure 23) is displayed. Either click the refresh button or enter a LAN port IP address to reload the GoWide 4.6 main page and repeat the login process.
  • Page 46 Figure 23. Restart Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 47: Export/Import Configuration

    Export/Import Configuration If the same settings are required on several GoWide 4.6 units, the Export/Import function can be used. The settings must be configured and saved on one unit first. Use the Export hyperlink on the System Menu to export the configuration file to a hard drive or floppy disk.
  • Page 48 After the configuration file is chosen, click on the Import button to upload the configuration file to the unit. The unit will then save the configuration and restart, with the configuration file settings taking effect. GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 49: Internet Access Configuration

    To configure a PC to access the Internet, do the following: Ensure that there is still a TCP/IP connection to the GoWide 4.6. If not, refer to the PC Configuration section. Using the TCP/IP Properties page, enter the new Gateway IP address (or leave blank if DHCP will be used).
  • Page 50 Click OK and re-start the PC. The PC is now re-configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be re-configured to communicate with the GoWide 4.6. GoWide 4.6 G.shdsl Bridge/Router – User Manual Bridge Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 51 Figure 28 shows the new configuration setup for GoWide 4.6 bridge mode. Figure 28. GoWide 4.6 Bridge Mode Configuration To access the modem again, change the PC settings as shown in the PC Configuration section. GoWide 4.6 G.shdsl Bridge/Router – User Manual...

  • Page 52: Troubleshooting

    PC. • Since the GoWide 4.6’s default IP address is 10.0.0.1, the PC must be part of the same subnet and have an IP address between the range of 10.0.0.2 to 10.0.0.254. The PC subnet mask should be 255.255.255.0.

  • Page 53: Chapter 4 Router Mode Configuration

    Router Mode Configuration This chapter provides information on the router mode configuration. Chapter 4...

  • Page 54: Introduction

    Figure 29. TCP/IP Properties Screen In the TCP/IP Properties page, enter the Gateway IP address. See Figure 30. Note: In Router mode, the Gateway IP address is the same as the GoWide 4.6 LAN port address. GoWide 4.6 G.shdsl Bridge/Router – User Manual...
  • Page 55 Click OK and re-start the PC. The PC is now configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be configured to communicate with the GoWide 4.6. GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 56: Gowide 4.6 Configuration

    GoWide 4.6 Configuration GoWide 4.6 Login Procedure I describes the method for logging in to the GoWide 4.6. Procedure I. GoWide 4.6 Login Step Procedure Power up the computer (if not already powered up). Open the Internet Explorer Web browser.
  • Page 57 Figure 33. GoWide 4.6 Initial Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 58 Figure 34. GoWide 4.6 Status Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 59: Sample Configuration

    Figure 35 shows a default configuration setup between a PC and the GoWide 4.6. Figure 35. GoWide 4.6 Default Configuration Sample Configuration Figure 36 shows a sample configuration setup for GoWide 4.6 router mode. Figure 36. GoWide 4.6 Router Mode Configuration GoWide 4.6 G.shdsl Bridge/Router –...

  • Page 60: System Screen

    Step Procedure Login to the GoWide 4.6. Select Setup from the GoWide 4.6 toolbar. The System screen (Figure 37) is now displayed. Click the Router hyperlink in the System Menu. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual...
  • Page 61 Figure 37. System Screen System Toolbar Menu GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 62: Lan Port Configuration

    Select either DHCP Server, DHCP Relay, or Outbound Filtering under Advanced. Enter the value for DNS Relay in the provided field. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 63 Figure 38. Configure LAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 64 Figure 39. LAN Port Settings Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 65: Wan Port Configuration

    • Click Edit Inbound • Enter the WAN Port IP address and the Telnet or Web port to allow remote configuration of the GoWide 4.6 using Telnet or HTTP • Apply, save, and restart Quality of Service Setup To set up Quality of Service (QoS) under WAN Port configuration, click on the desired QoS format (UBR, CBR or VBR) in the appropriate screen.
  • Page 66 Figure 40. Configure WAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 67: Wan Port Configuration Using Ipoa

    Select either Set as Default Route, Edit Routing Table, or RIP under Routing Table (RIP is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 68 Figure 41. IPOA Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 69: Wan Port Configuration Using Rfc1483

    Select either Set as Default Route, Edit Routing Table, or RIP under Routing Table (RIP is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 70 Figure 42. RFC1483 Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 71: Wan Port Configuration Using Pppoa Client

    If RIP is not desired under Routing Table, deselect the box (RIP Allowed is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 72 Figure 43. PPPoA Client Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 73: Wan Port Configuration Using Pppoe Client

    If RIP is not desired under Routing Table, deselect the box (RIP Allowed is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 74 Figure 44. PPPoE Client Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 75: Advanced Configuration

    (Figure 45). This option allows a user to restrict which hosts have access to the GoWide 4.6 via Telnet, FTP, and a Web browser. The user will use a host’s IP address to give them access. If a host is not specified, all hosts have access.
  • Page 76 Figure 45. Advanced Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 77 Figure 46. Access Manager Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 78: Save/Restart Configuration

    Save/Restart Configuration Clicking the Save/Restart hyperlink brings up the Save Your Configuration and Restart screen (Figure 47). Procedure Q describes the method for saving a router mode configuration and restarting the GoWide 4.6. Procedure Q. Save/Restart Screen Step Procedure Ensure that all displayed settings are correct.
  • Page 79 Click the OK button to save the configuration. Once the configuration is saved, a restart screen (Figure 49) is displayed. Either click the refresh button or enter a LAN port IP address to reload the GoWide 4.6 main page and repeat the login process.
  • Page 80 Figure 49. Restart Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 81: Export/Import Configuration

    Export/Import Configuration If the same settings are required on several GoWide 4.6 units, the Export/Import function can be used. The settings must be configured and saved on one unit first. Use the Export hyperlink on the System Menu to export the configuration file to a hard drive or floppy disk.
  • Page 82 After the configuration file is chosen, click on the Import button to upload the configuration file to the unit. The unit will then save the configuration and restart, with the configuration file settings taking effect. GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 83: Internet Access Configuration

    To configure a PC to access the Internet, do the following: Ensure that there is still a TCP/IP connection to the GoWide 4.6. If not, refer to the PC Configuration section. Using the TCP/IP Properties page, check that the installed Gateway IP address has not changed.
  • Page 84 Click OK and re-start the PC. The PC is now re-configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be re-configured to communicate with the GoWide 4.6. GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 85 To access the modem again, change the PC settings as shown in the PC Configuration section. GoWide 4.6 G.shdsl Bridge/Router – User Manual Router Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 86: Troubleshooting

    PC. • Since the GoWide 4.6’s default IP address is 10.0.0.1, the PC must be part of the same subnet and have an IP address between the range of 10.0.0.2 to 10.0.0.254. The PC subnet mask should be 255.255.255.0.

  • Page 87: Chapter 5 Gateway Mode Configuration

    Gateway Mode Configuration This chapter provides information on the gateway mode configuration. Chapter 5...

  • Page 88: Introduction

    The figures illustrating PC configuration are Windows 98 screen captures. For Windows 95/NT 4.0/2000/XP, please refer to the appropriate user manual. To configure a PC to communicate with the GoWide 4.6, do the following: Establish a TCP/IP connection to the GoWide device. This is done by clicking the Start button and selecting Settings, Control Panel, and Network.
  • Page 89 Click OK and re-start the PC. The PC is now configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be configured to communicate with the GoWide 4.6. GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 90: Gowide 4.6 Configuration

    GoWide 4.6 Configuration GoWide 4.6 Login Procedure R describes the method for logging in to the GoWide 4.6. Procedure R. GoWide 4.6 Login Step Procedure Power up the computer (if not already powered up). Open the Internet Explorer Web browser.
  • Page 91 Figure 58. GoWide 4.6 Initial Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 92 Figure 59. GoWide 4.6 Status Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 93: Sample Configuration

    Figure 60 shows a default configuration between a PC and the GoWide 4.6. Figure 60. GoWide 4.6 Default Configuration Sample Configuration Figure 61 shows a sample configuration setup for GoWide 4.6 gateway mode. Figure 61. GoWide 4.6 Gateway Mode Configuration GoWide 4.6 G.shdsl Bridge/Router –...

  • Page 94: System Screen

    Step Procedure Login to the GoWide 4.6. Select Setup from the GoWide 4.6 toolbar. The System screen (Figure 62) is now displayed. Click the Gateway hyperlink in the System Menu. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual...
  • Page 95 Figure 62. System Screen System Toolbar Menu GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 96: Lan Port Configuration

    Select either DHCP Server, DHCP Relay, or Outbound Filtering under Advanced. Enter the value for DNS Relay in the provided field. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 97 Figure 63. Configure LAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 98 Figure 64. LAN Port Settings Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 99: Wan Port Configuration

    CBR (Constant Bit Rate) – the user must specify the PCR. • VBR (Variable Bit Rate) – the user must specify the PCR, Sustainable Cell Rate (SCR), Burst Tolerance, and the maximum burst size. GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 100 Figure 65. Configure WAN Port Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 101: Wan Port Configuration Using Rfc1483

    Select either Set as Default Route or Edit Routing Table under Routing Table (Set as Default Route is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 102 Figure 66. RFC1483 Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 103: Wan Port Configuration Using Pppoe Relay

    Select either Set as Default Route or Edit Routing Table under Routing Table (Set as Default Route is the default setting). If NAT is desired, click the NAT box under Advanced. Click the Apply button if all data is correct. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 104 Figure 67. PPPoE Relay Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 105: Advanced Configuration

    (Figure 68). This option allows a user to restrict which hosts have access to the GoWide 4.6 via Telnet, FTP, and a Web browser. The user will use a host’s IP address to give them access. If a host is not specified, all hosts have access.
  • Page 106 Figure 68. Advanced Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 107 Figure 69. Access Manager Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 108: Save/Restart Configuration

    Save/Restart Configuration Clicking the Save/Restart hyperlink brings up the Save Your Configuration and Restart screen (Figure 70). Procedure X describes the method for saving a gateway mode configuration and restarting the GoWide 4.6. Procedure X. Save/Restart Screen Step Procedure Ensure that all displayed settings are correct.
  • Page 109 Click the OK button to save the configuration. Once the configuration is saved, a restart screen (Figure 72) is displayed. Either click the refresh button or enter a LAN port IP address to reload the GoWide 4.6 main page and repeat the login process.
  • Page 110 Figure 72. Restart Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 111: Export/Import Configuration

    Export/Import Configuration If the same settings are required on several GoWide 4.6 units, the Export/Import function can be used. The settings must be configured and saved on one unit first. Use the Export hyperlink on the System Menu to export the configuration file to a hard drive or floppy disk.
  • Page 112 After the configuration file is chosen, click on the Import button to upload the configuration file to the unit. The unit will then save the configuration and restart, with the configuration file settings taking effect. GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 113: Internet Access Configuration

    To configure a PC to access the Internet, do the following: Ensure that there is still a TCP/IP connection to the GoWide 4.6. If not, refer to the PC Configuration section. Using the TCP/IP Properties page, check that the installed Gateway IP address has not changed.
  • Page 114 Click OK and re-start the PC. The PC is now re-configured to communicate with the GoWide 4.6. Note: For Windows 2000, simply click OK. The PC will be re-configured to communicate with the GoWide 4.6. GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...
  • Page 115 To access the modem again, change the PC settings as shown in the PC Configuration section. GoWide 4.6 G.shdsl Bridge/Router – User Manual Gateway Mode Configuration 097-91022-01 Issue 1: February 2002...

  • Page 116: Troubleshooting

    PC. • Since the GoWide 4.6’s default IP address is 10.0.0.1, the PC must be part of the same subnet and have an IP address between the range of 10.0.0.2 to 10.0.0.254. The PC subnet mask should be 255.255.255.0.

  • Page 117: Chapter 6 Support And Warranty Information

    Support and Warranty Information This chapter provides support and warranty information on the GoWide 4.6. Chapter 6...

  • Page 118: Overview

    Overview Symmetricom Global Services offers a variety of service products to support your GoWide product. Whether you need technical support, installation services or maintenance services, we can customize a product to fit your needs. Call, fax, or e-mail us for detailed coverage information and pricing.

  • Page 119: Maintenance And Spares

    Training Product training courses are available at Symmetricom’s training centers in San Jose, California or Winnersh (near London), England. Courses can also be conducted at the customer site. For some products, CD training programs are available.
  • Page 120 This page intentionally left blank. GoWide 4.6 G.shdsl Bridge/Router Warranty and Shipping Information 097-91022-01 Issue 1: February 2002...
  • Page 121 Chapter App. A TCP/IP Protocol Installation This appendix provides information on TCP/IP protocol installation.

  • Page 122: Tcp/Ip Protocol Installation

    Click the OK button. Windows may ask for the Windows 95/98 CD or the original installation files (i.e., D:/win95, D:/win98, or c:\windows\options\cabs). Click the OK button. Follow the instructions to restart the PC. End of Procedure GoWide 4.6 G.shdsl Bridge/Router – User Manual TCP/IP Protocol Installation 097-91022-01 Issue 1: February 2002...
  • Page 123 Figure 77. Network Screen Figure 78. Select Network Component Type Screen Figure 79. Select Network Protocol Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual TCP/IP Protocol Installation 097-91022-01 Issue 1: February 2002...
  • Page 124 Figure 80. Main Network Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual TCP/IP Protocol Installation 097-91022-01 Issue 1: February 2002...
  • Page 125 App. B Interface Pin Assignments This appendix provides information on GoWide 4.6 interface pin assignments.

  • Page 126: Interface Pin Assignments

    The Ethernet (RJ-45) interface pin assignments are listed in Table E. Table E. Ethernet (RJ-45) Interface Pin Assignments Signal Name RD + RD – TD + TD – GoWide 4.6 G.shdsl Bridge/Router – User Manual Interface Pin Assignments 097-91022-01 Issue 1: February 2002...
  • Page 127 Update GoWide 4.6 Firmware App. C This appendix provides information on upgrading the GoWide 4.6 firmware.

  • Page 128: Update Gowide 4.6 Firmware

    Update GoWide 4.6 Firmware To update GoWide 4.6 firmware to the latest version, do the following: 1. Click Update Firmware on the GoWide 4.6 screen toolbar. 2. The Update Firmware screen (Figure 81) is displayed. 3. Follow the directions on the Update Firmware screen and click the Upgrade button.
  • Page 129 G.shdsl Configuration This appendix provides information on specific instances of G.shdsl configuration. App. D...

  • Page 130: G.shdsl Configuration

    4.6s needs to be set to CO Unit Type. The Line Type is only found on the GoWide 4.6 and is set to four-wire operation. This means that both pairs will work as one higher capacity link, but if one pair is removed/cut then the link will go down and no data will be transmitted.
  • Page 131 Figure 82. G.shdsl Configuration Screen GoWide 4.6 G.shdsl Bridge/Router – User Manual G.shdsl Configuration 097-91022-01 Issue 1: February 2002...
  • Page 132 This page intentionally left blank. GoWide 4.6 G.shdsl Bridge/Router – User Manual G.shdsl Configuration 097-91022-01 Issue 1: February 2002...

  • Page 133: Service Parameters And Worksheet

    Service Parameters and Worksheet...

  • Page 134: Parameters From Service Provider

    • Host Name __________________ Note: If VCI/VPI values are the same as the default values, no changes are required in bridge mode. 134 (End) GoWide 4.6 G.shdsl Bridge/Router – User Manual Service Parameters and Worksheet 097-91022-01 Issue 1: February 2002...

Table of Contents
