Install the four TPU CR Motor Dampers as shown in
the figure below.
TPU CR Motor Damper
Figure 4-63. Installing the TPU CR Motor Dampers
Route the TPU CR Motor Cable through the notch as
shown in the figure below.
Figure 4-64. Routing the TPU CR Motor Cable
Whenever the TPU Tension Holder or the TPU CR Motor
A D J U S T M E N T
R E Q U I R E D
Holder is replaced, G-26 grease must be applied to the
specified points. See Figure 6-4 on page
Disassembly / Assembly
Notch
TPU CR Motor Cable
70.
Disassembly Procedure

4.2.17 Removing Compression Spring 3.15

1. Remove the TPU CR Motor Unit.
When performing the next step, watch out for Compression
C A U T I O N
Spring 3.15 as it may pop up.
2. Remove the two C.P.F.P. M3 x 8 screws that secure the TPU Driven
Pulley Unit, and remove the unit together with the Compression
Spring 3.15.
3. Remove the Compression Spring 3.15 from the TPU Driven Pulley
Unit.
4. Remove the E-ring and then remove the Driven Pulley from the
Driven Pulley Unit
E-ring Driven Pulley
C.P.F.P. M3x8
(6±1 kgf.cm)

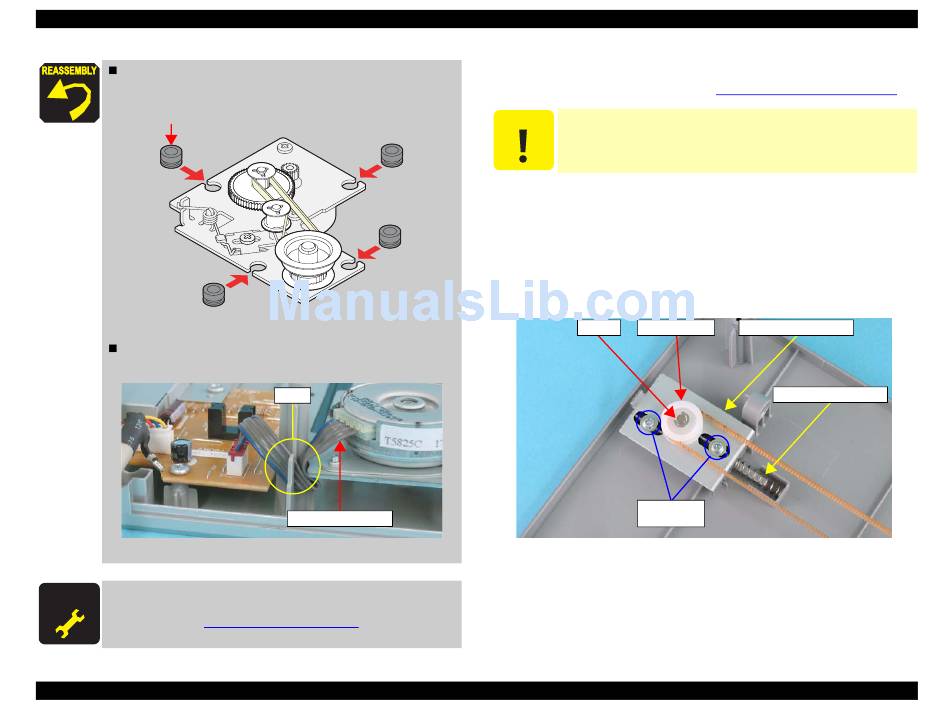

Figure 4-65. Removing Compression Spring 3.15
Revision A
See Section 4.2.16 on page 63.
TPU Driven Pulley Unit
Compression Spring 3.15
