Ipv6 Acl - NETGEAR GS748T Software Administration Manual

3. To delete an IP ACL rule, select the check box associated with the rule, and then click
Delete.
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
5. To modify an existing IP Extended ACL rule, click the Rule ID. The number is a hyperlink to
the Extended ACL Rule Configuration page. If the rule is Deny, you can specify the CPU
Notification Mode.
• Enable. No power is supplied to the port.
• Disable. When a packet matches the ACL rule, the CPU is not notified, and the port
continues to provide power.
6. If you modify the rule, click Apply to submit the changes to the switch.

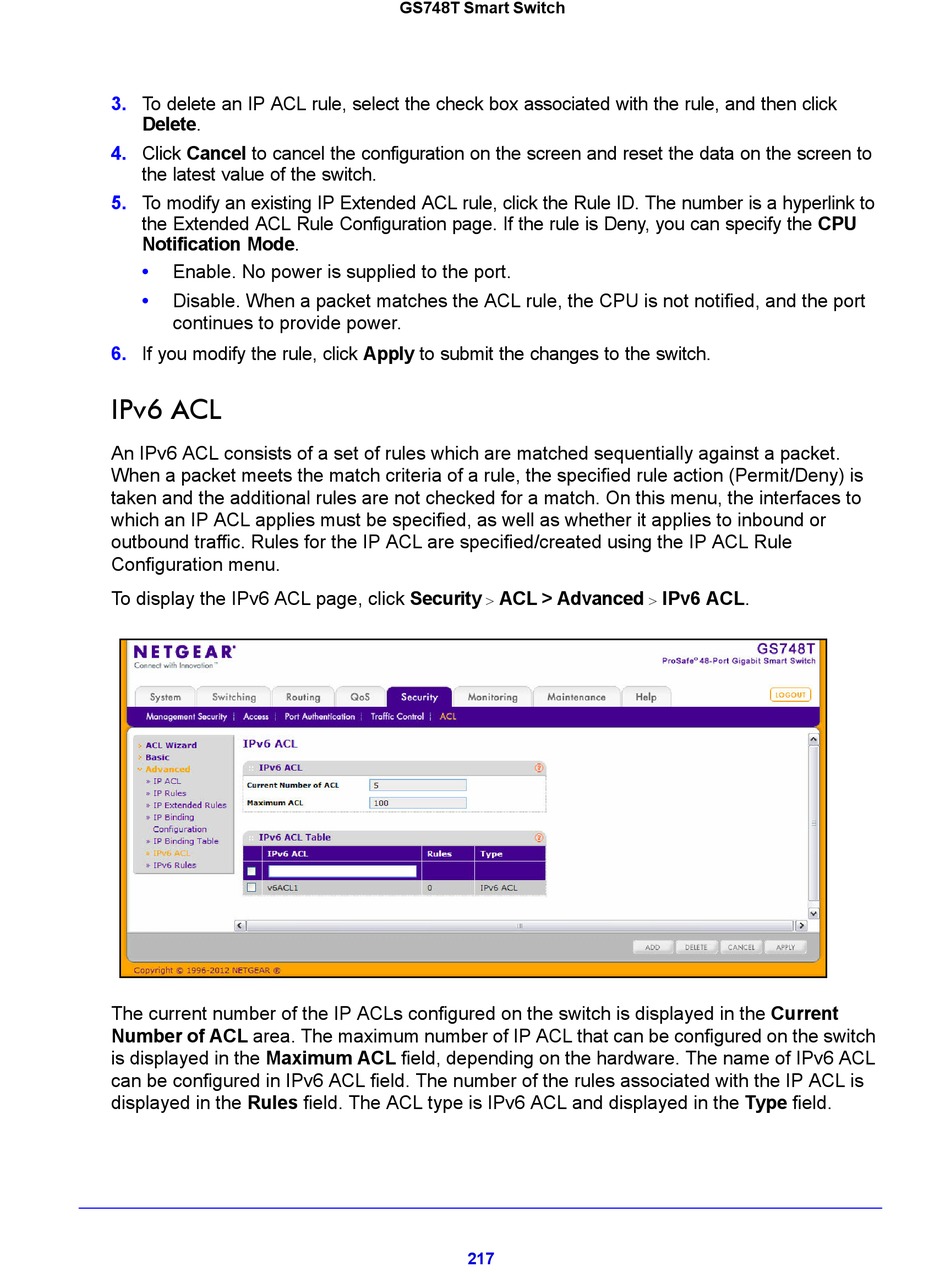

IPv6 ACL

An IPv6 ACL consists of a set of rules which are matched sequentially against a packet.
When a packet meets the match criteria of a rule, the specified rule action (Permit/Deny) is
taken and the additional rules are not checked for a match. On this menu, the interfaces to
which an IP ACL applies must be specified, as well as whether it applies to inbound or
outbound traffic. Rules for the IP ACL are specified/created using the IP ACL Rule
Configuration menu.
To display the IPv6 ACL page, click Security
The current number of the IP ACLs configured on the switch is displayed in the Current
Number of ACL area. The maximum number of IP ACL that can be configured on the switch
is displayed in the Maximum ACL field, depending on the hardware. The name of IPv6 ACL
can be configured in IPv6 ACL field. The number of the rules associated with the IP ACL is
displayed in the Rules field. The ACL type is IPv6 ACL and displayed in the Type field.
GS748T Smart Switch
ACL > Advanced

217

IPv6 ACL.


