• Send. (default) These packets are presented unmodified by DiffServ to the
system forwarding element.
• Drop. (default) These packets are immediately dropped.
• Mark CoS. These packets are marked by DiffServ with the specified CoS value
before being presented to the system forwarding element. This selection requires
that the Mark CoS value field be set.
• Mark IP Precedence. These packets are marked by DiffServ with the specified IP
Precedence value before being presented to the system forwarding element. This
selection requires that the Mark IP Precedence value field be set.
• Mark IP DSCP. These packets are marked by DiffServ with the specified DSCP
value before being presented to the system forwarding element. This selection
requires that the DSCP value field be set. If you select Other, enter a custom
value in the DSCP Value field that appears.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
6. If you change any of the settings on the page, click Apply to send the updated configuration
to the switch. Configuration changes take effect immediately.
7. Click Refresh to refresh the page with the most current data from the switch.

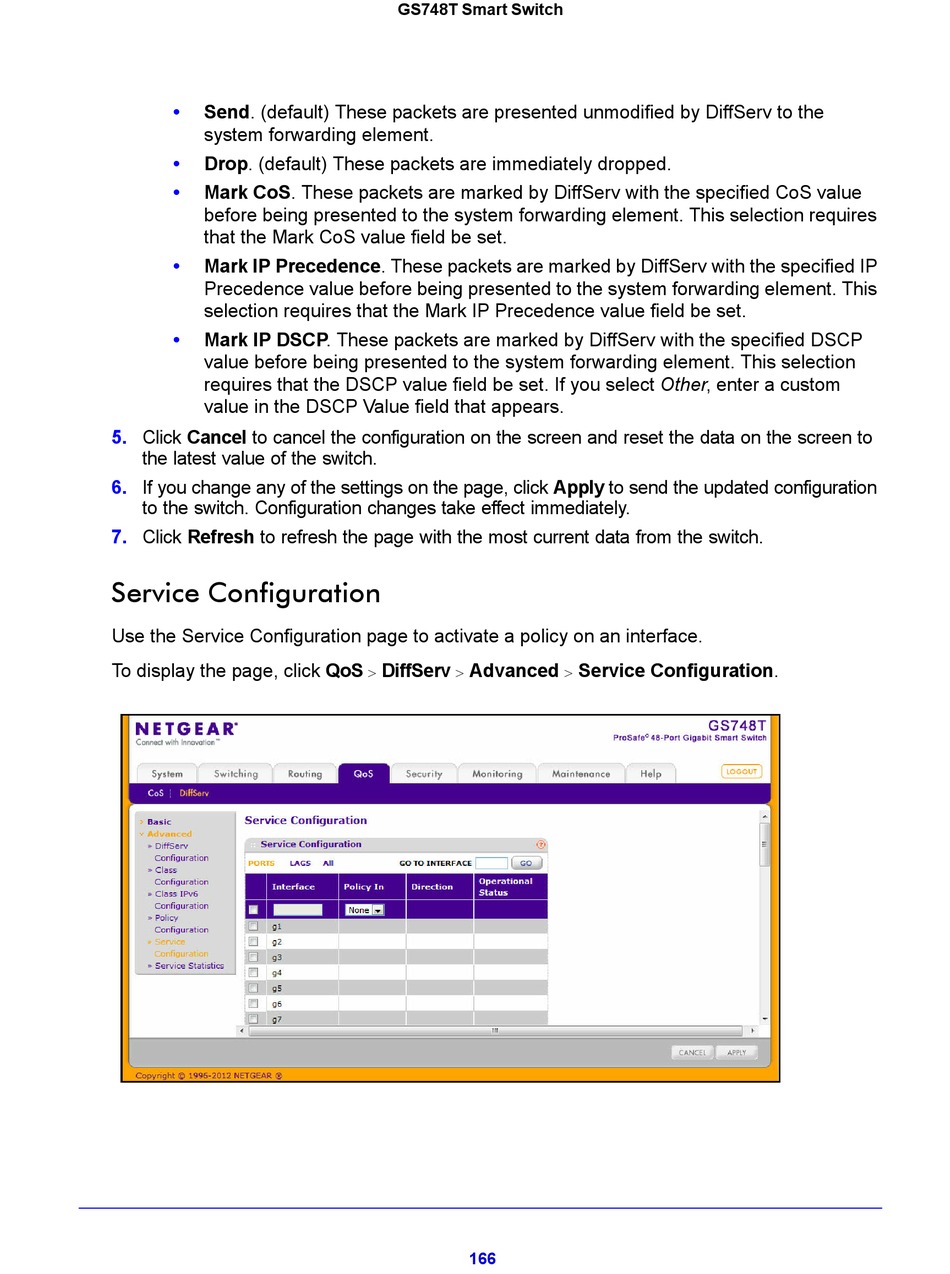

Service Configuration

Use the Service Configuration page to activate a policy on an interface.
To display the page, click QoS
GS748T Smart Switch
DiffServ Advanced
 
166
Service Configuration.

