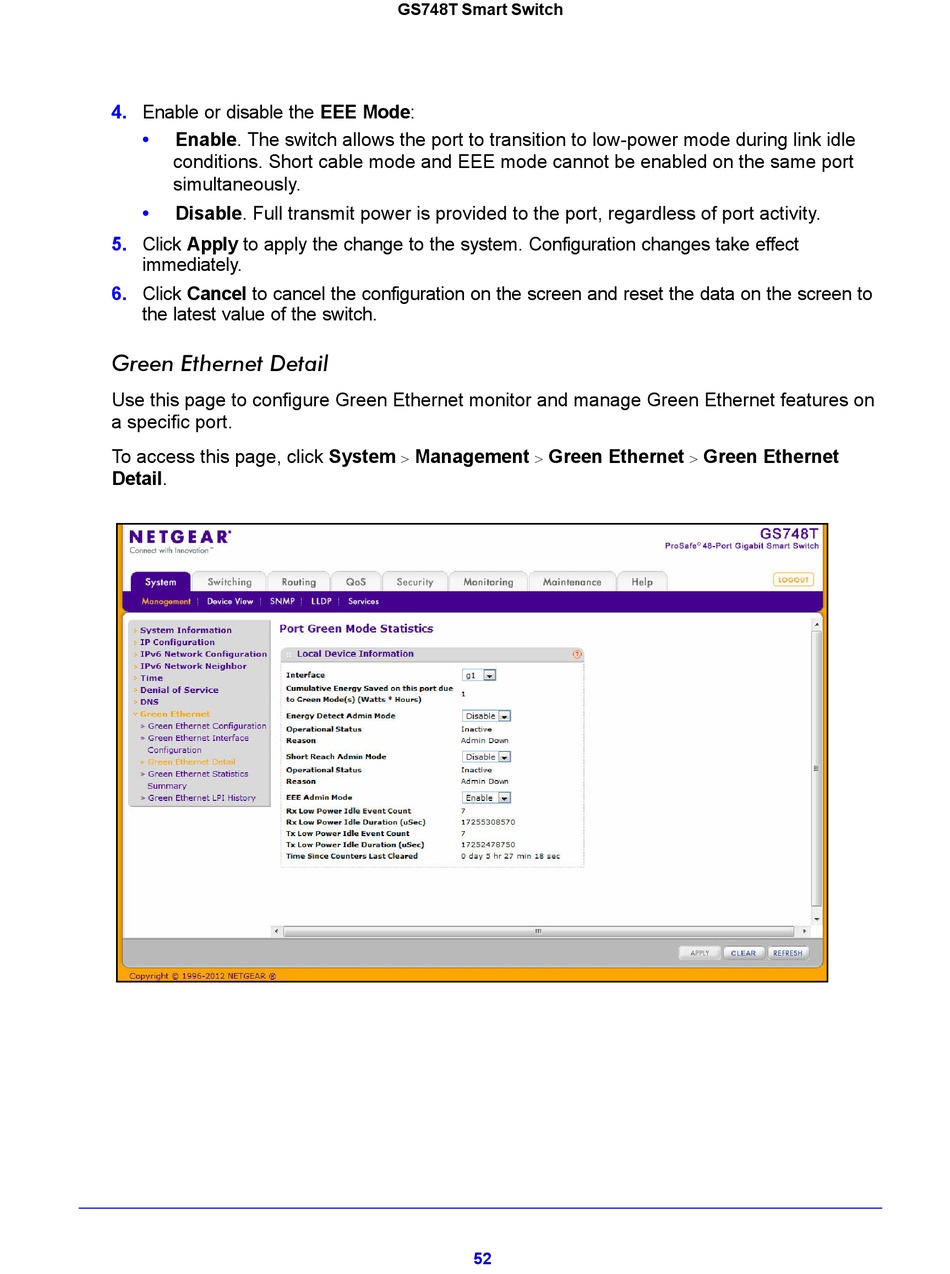

NETGEAR GS748T Software Administration Manual page 52

4. Enable or disable the EEE Mode:
• Enable. The switch allows the port to transition to low-power mode during link idle
conditions. Short cable mode and EEE mode cannot be enabled on the same port
simultaneously.
• Disable. Full transmit power is provided to the port, regardless of port activity.
5. Click Apply to apply the change to the system. Configuration changes take effect
immediately.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
Green Ethernet Detail
Use this page to configure Green Ethernet monitor and manage Green Ethernet features on
a specific port.
To access this page, click System
Detail.
GS748T Smart Switch
Management Green Ethernet
 
52
Green Ethernet

