This example shows how to configure the GS748T switch with the following settings:
•
Port g3 is a tagged member of VLAN 10 and uses VLAN 10 as the port VLAN ID (PVID).
•
Port g20 is a tagged member of VLAN 20 uses VLAN 20 as the PVID.
•
VLAN 10 is configured with an IP address of 192.168.10.3/24
•
VLAN 20 is configured with an IP address of 192.168.20.15/24
•
Routing is enabled.
Use the following steps to perform the VLAN routing configuration:
1.
From the Switching > VLAN > Basic > VLAN Configuration page, create VLANs 10
and 20.
2.

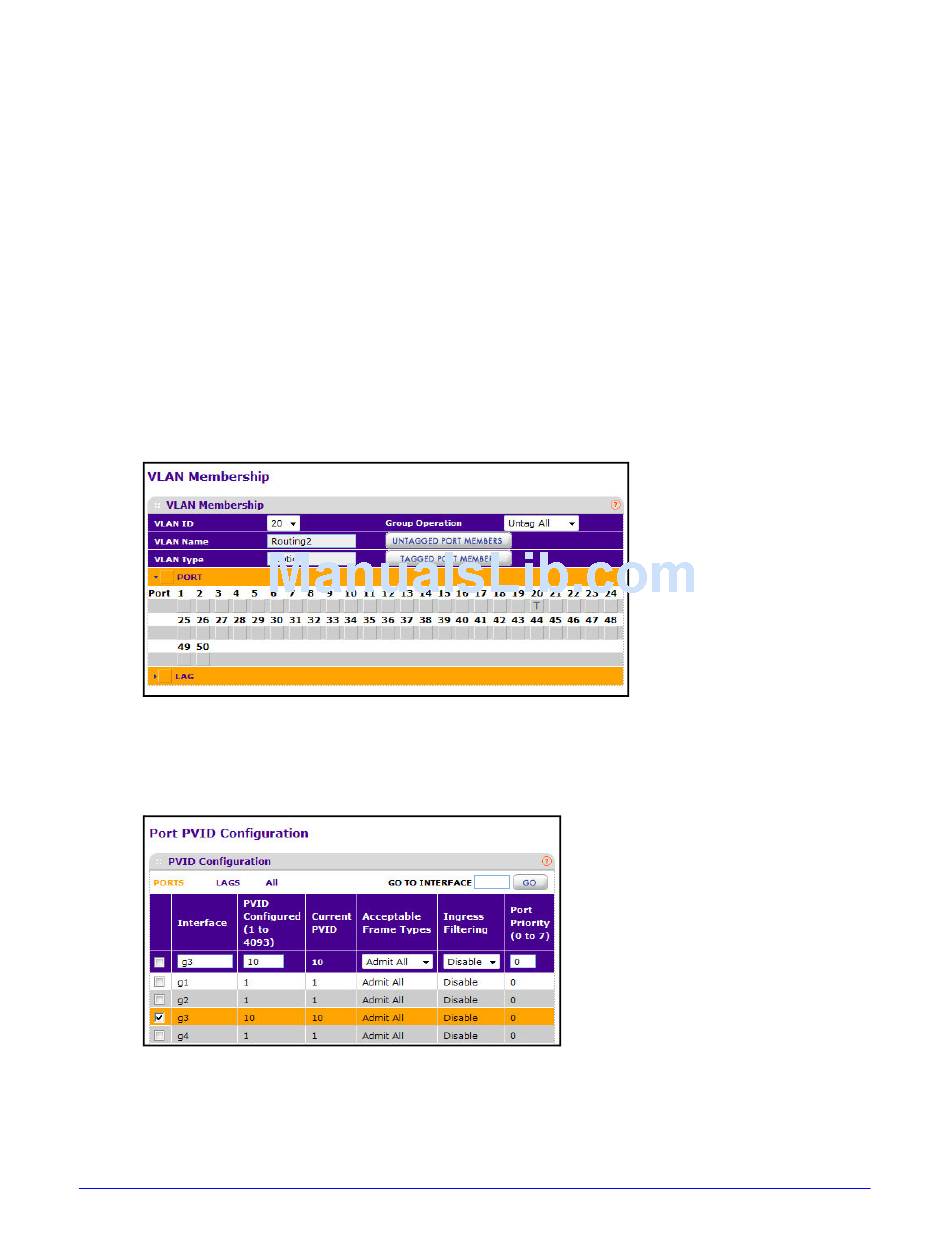

From the Switching > VLAN > Advanced > VLAN Membership page:
•
Include Port g3 as a tagged member (T) of VLAN 10.
•
Include Port g20 as a tagged member of VLAN 20.
3.
From the Switching > VLAN > Advanced > Port PVID Configuration page:
•
Set the PVID for Port g3 to 10.
•
Set the PVID for Port g20 to 20.
