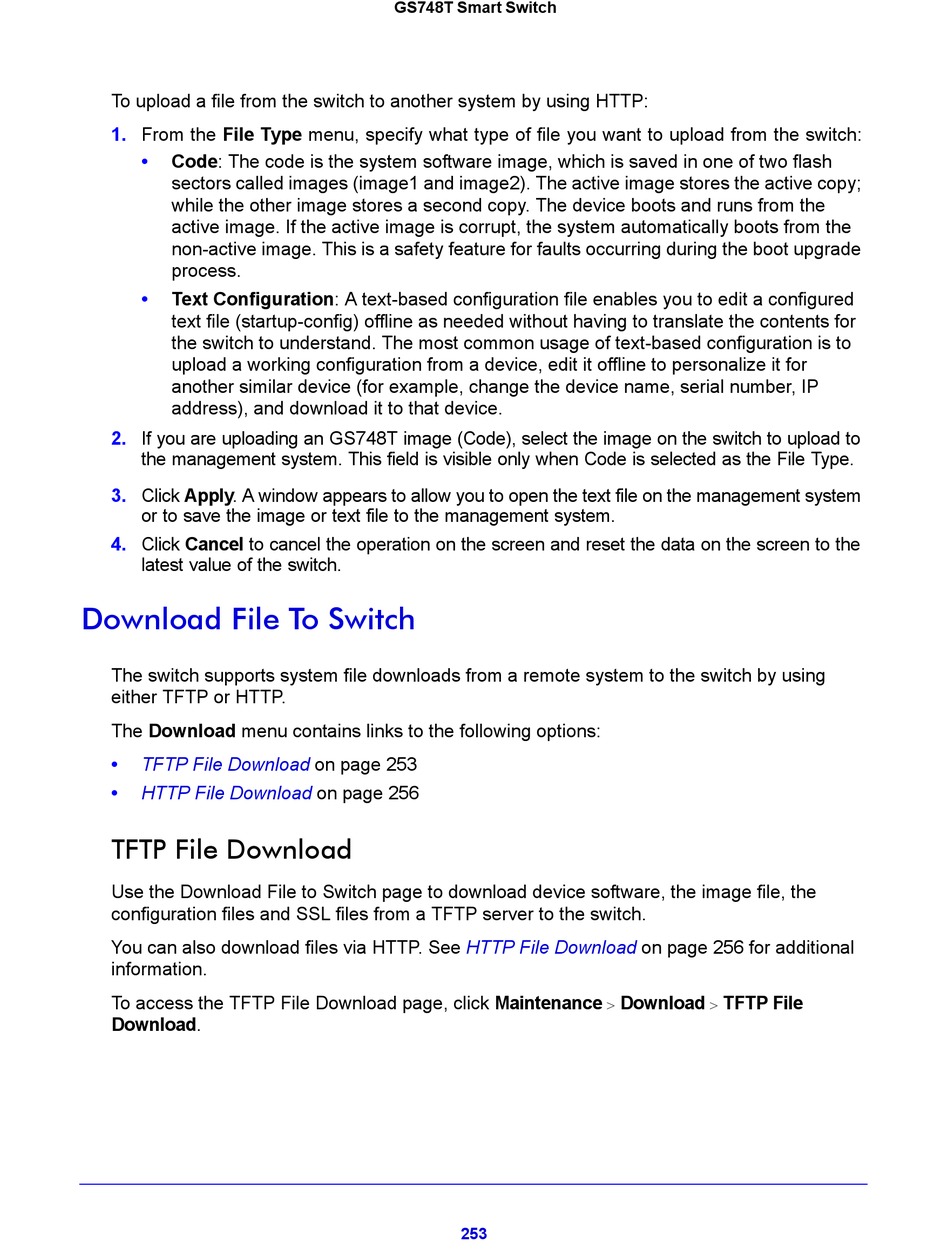

Download File To Switch; Tftp File Download - NETGEAR GS748T Software Administration Manual

To upload a file from the switch to another system by using HTTP:
1. From the File Type menu, specify what type of file you want to upload from the switch:
• Code: The code is the system software image, which is saved in one of two flash
sectors called images (image1 and image2). The active image stores the active copy;
while the other image stores a second copy. The device boots and runs from the
active image. If the active image is corrupt, the system automatically boots from the
non-active image. This is a safety feature for faults occurring during the boot upgrade
process.
• Text Configuration: A text-based configuration file enables you to edit a configured
text file (startup-config) offline as needed without having to translate the contents for
the switch to understand. The most common usage of text-based configuration is to
upload a working configuration from a device, edit it offline to personalize it for
another similar device (for example, change the device name, serial number, IP
address), and download it to that device.
2. If you are uploading an GS748T image (Code), select the image on the switch to upload to
the management system. This field is visible only when Code is selected as the File Type.
3. Click Apply. A window appears to allow you to open the text file on the management system
or to save the image or text file to the management system.
4. Click Cancel to cancel the operation on the screen and reset the data on the screen to the
latest value of the switch.

Download File To Switch

The switch supports system file downloads from a remote system to the switch by using
either TFTP or HTTP.
The Download menu contains links to the following options:
•

TFTP File Download

• HTTP File Download
TFTP File Download
Use the Download File to Switch page to download device software, the image file, the
configuration files and SSL files from a TFTP server to the switch.
You can also download files via HTTP. See
information.
To access the TFTP File Download page, click Maintenance
Download.
GS748T Smart Switch
on page 253
on page 256
HTTP File Download
253
on page 256 for additional
Download TFTP File
 
