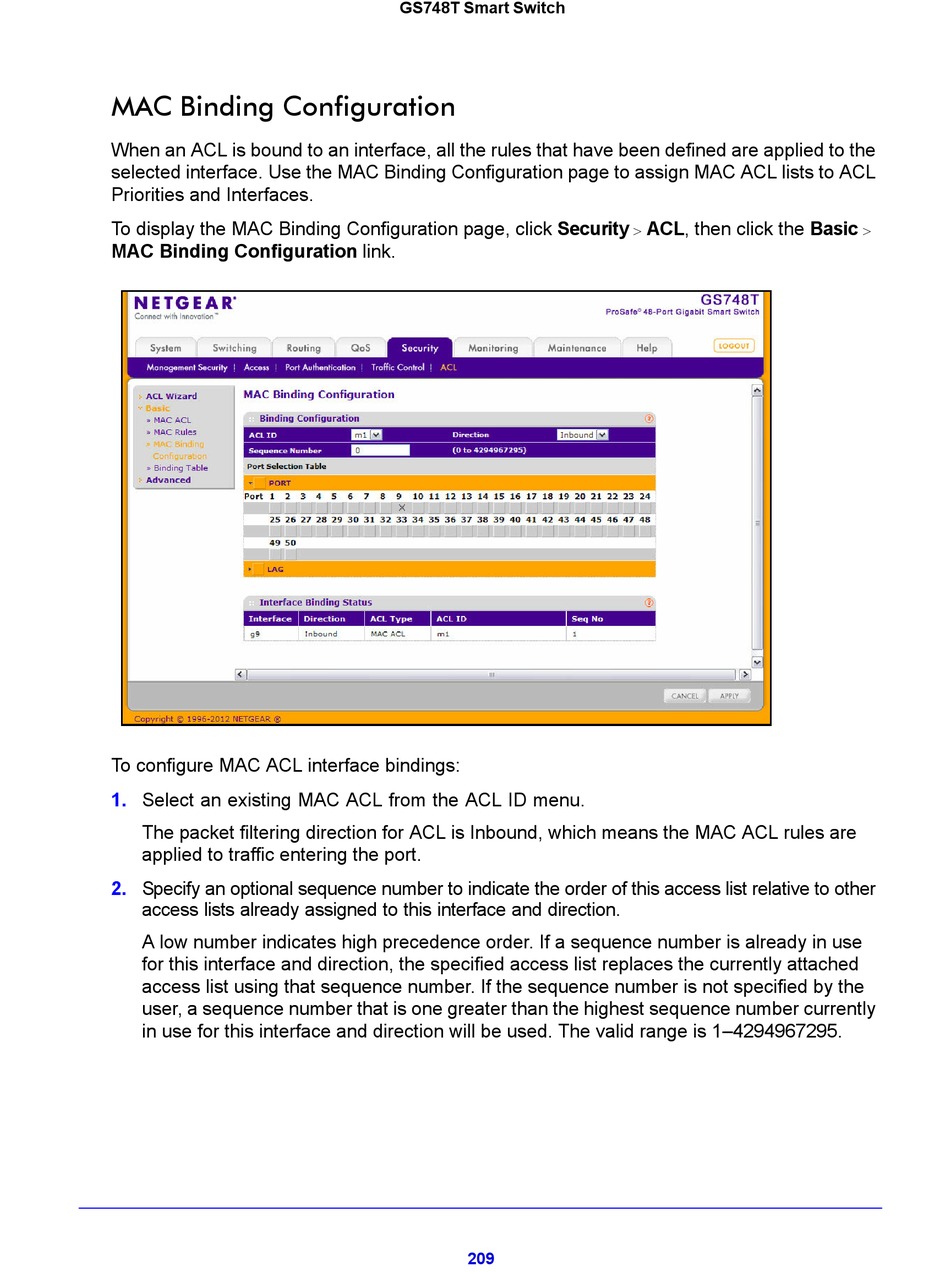

MAC Binding Configuration

When an ACL is bound to an interface, all the rules that have been defined are applied to the
selected interface. Use the MAC Binding Configuration page to assign MAC ACL lists to ACL
Priorities and Interfaces.
To display the MAC Binding Configuration page, click Security
MAC Binding Configuration link.
To configure MAC ACL interface bindings:
1. Select an existing MAC ACL from the ACL ID menu.
The packet filtering direction for ACL is Inbound, which means the MAC ACL rules are
applied to traffic entering the port.
2. Specify an optional sequence number to indicate the order of this access list relative to other
access lists already assigned to this interface and direction.
A low number indicates high precedence order. If a sequence number is already in use
for this interface and direction, the specified access list replaces the currently attached
access list using that sequence number. If the sequence number is not specified by the
user, a sequence number that is one greater than the highest sequence number currently
in use for this interface and direction will be used. The valid range is 1–4294967295.
GS748T Smart Switch
209
ACL, then click the Basic
 
