General Information

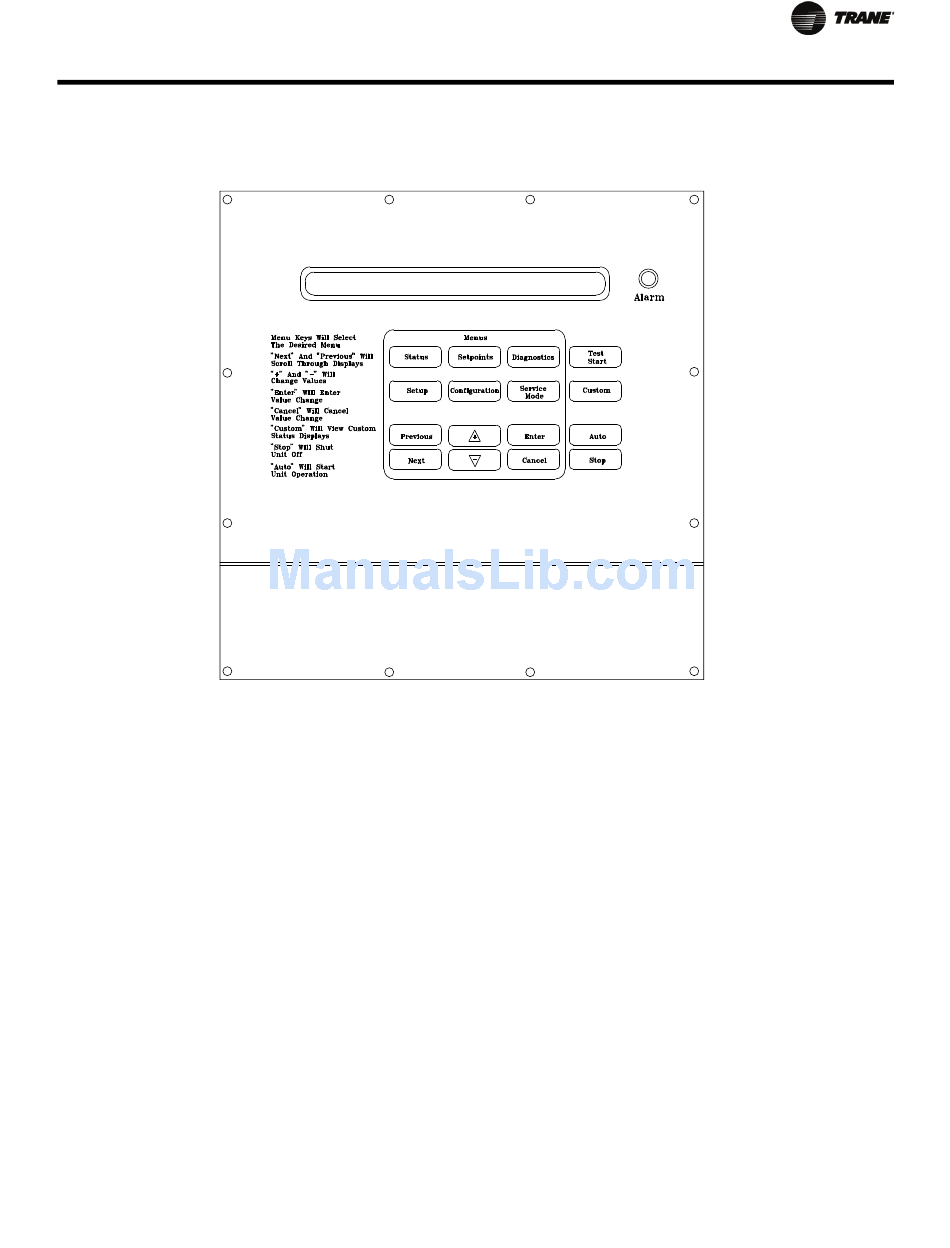

Figure 1. Human Interface Module

Menu Keys

The six keys illustrated in Figure 2 in the MENU area (STATUS, SETPOINTS, SETUP ,
CONFIGURATION, DIAGNOSTICS, and SERVICE MODE) are used to bring up the
various interactive menus where the user inputs and accesses unit operating data.
Pressing these keys will display the initial screen for the menu designated by the key's
name. The following information describes the keys and their functions when viewing
the various menus.
If no key is pressed for 30 minutes while the LCD is displaying a menu screen, it will
revert back to the unit operating status screen.

STATUS Key

Pressing the STATUS key causes the LCD to display the operating status screen; i.e.
"On" , "Unit Stop" , "External Stop" , "Emergency Stop" , "Service Mode" . Pressing the
NEXT key allows the operator to scroll through the screens which provide information
such as air and refrigerant temperatures, humidity levels, fan operation, compressor
operation, heater operation, economizer positioning, exhaust operation, as well as
heating, cooling, and compressor lockout SETPOINTs. Pressing the STATUS key while
viewing any of the data screens will cause the LCD to go back to the operating status
screen.
