VSX 7000 Series Administrator's Guide
Cable Drawings
WIRING COLOR CODE STANDARDS: (WIRE/STRIPE)
P1 P2
PIN PIN AT&T
# # 258A/268B
1 1 WHITE/ORANGE
2 2 ORANGE/WHITE
3 3 WHITE/GREEN
4 4 BLUE/WHITE
5 5 WHITE/BLUE
6 6 GREEN/WHITE
7 7 WHITE/BROWN
8 8 BROWN/WHITE
NOTES: (UNLESS OTHERWISE SPECIFIED).
1 MOLDING MATERIAL: PVC UL94 V-0
COLOR: ORANGE, APPROXIMATE MATCH TO
PANTONE #1665 U.
2. APPROVED VENDOR: PAN INTERNATIONAL ELECTRONICS
(THAILAND) CO, LTD. (66-2) 5293549-50.
PAN INTERNATIONAL DETAILED SPEC IS IN THE PART FILE.
3
THE BARCODE CONTAINS LAST 8 DIGIT OF CABLE PART
NUMBER (REMOVE VV2457).
LABLE SPEC : LASER LABLE
SIZE : LABLE SIZE (12 X 76mm)
Appendix - 4
The following cables are provided with your VSX system:
LAN cable
Monitor cable

Conference link cable

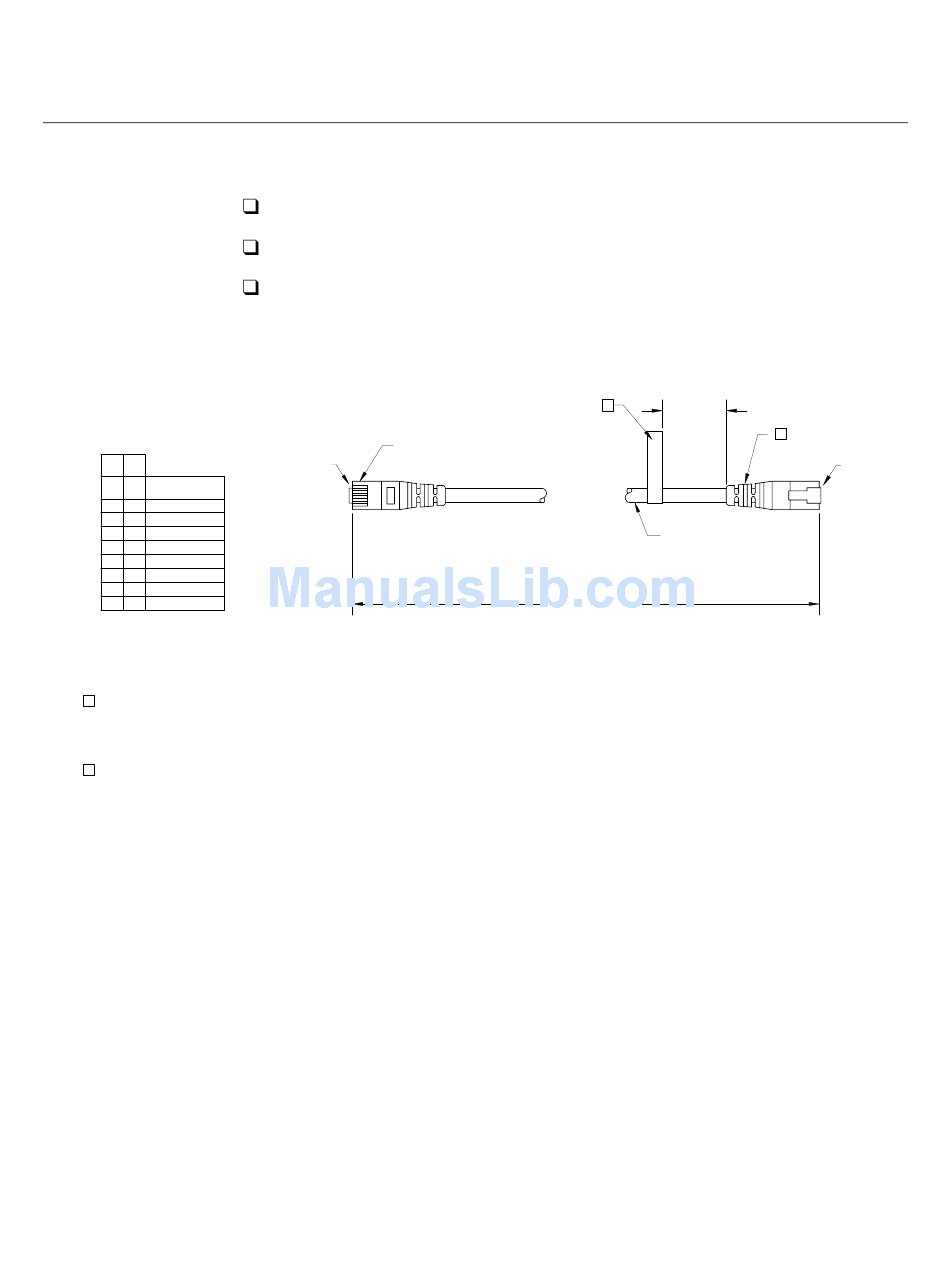

Their pin-outs are shown in the following drawings.
CONN. RJ-45
( x2 )
PIN 8
P1
LAN Cable 2457-08343-001
3
3.35"
CABLE, 8 COND, 24 AWG,
BLACK PVC JACKET
CATEGORY 5, TWISTED PAIR
MINIMUN OF 2 TWISTS PER INCH.
12 FEET +/- 3"
ASSY., RJ-45 PLUG TO RJ-45 PLUG
L. SIMPSON 071698
www.polycom.com/videodocumentation
1
MOLDED STRAIN RELIE
BOTH ENDS.
PIN 8
P2
ORANGE, 12 FEET
2457 08343 001 B
