To connect the VSX system:
1. Connect the monitor to the Monitor 1 S-Video or composite video output. This
may be an NTSC or PAL monitor, depending on your system.
S-Video provides superior video quality, and is strongly recommended if the system is
to be configured to display Asian fonts.
2. Connect the conference link cable to the conference link connector and the
microphone pod, with the cable's ferrite bead at the end connected to the
system.
You may connect an additional microphone and a Visual Concert VSX data
collaboration unit. If you connect both, you may connect them in any order.
3. Connect the system to the LAN using the LAN cable.
If you set up the VSX system as ISDN-only, it does not require a LAN connection to
operate; however, you must connect the system to a LAN to use the Global Directory
Server or VSX web interface.
4. If you installed a Quad BRI network interface module, connect it to the
appropriate ISDN network using the supplied cable or cables.
If you connect more than one BRI line, connect port 1 of the network interface
module to the line with the first ISDN number in the assigned range; connect
the other ports in ascending order.
For example, if you use BRI lines 555-1212 through 555-1215, connect port 1 to
555-1212, line 2 to 555-1213, and so on.

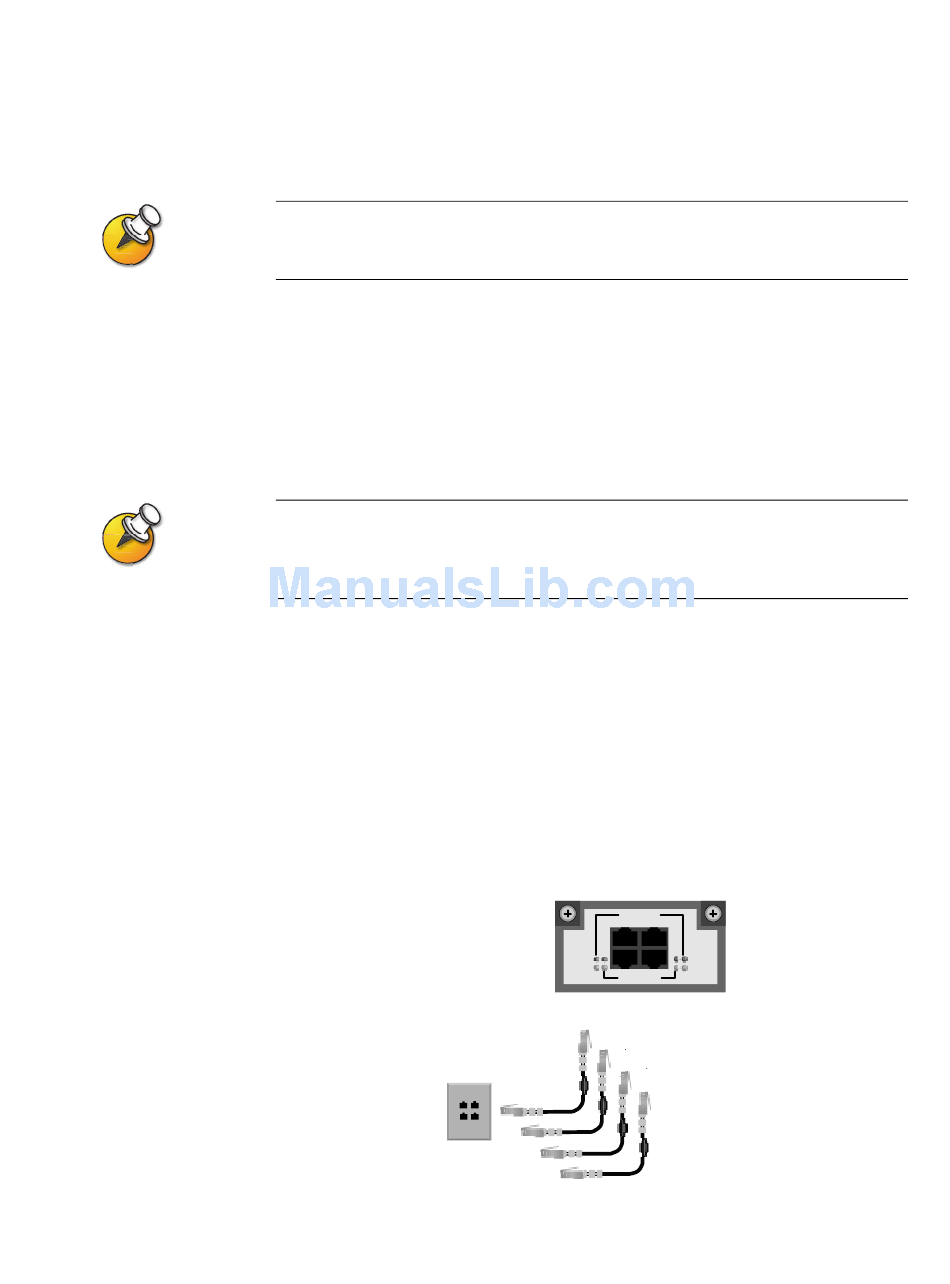

The following figure provides details for cabling the Quad BRI network
interface module.
Chapter 2 - Setting Up the Equipment
1 3
2 4
1
2
3
4
