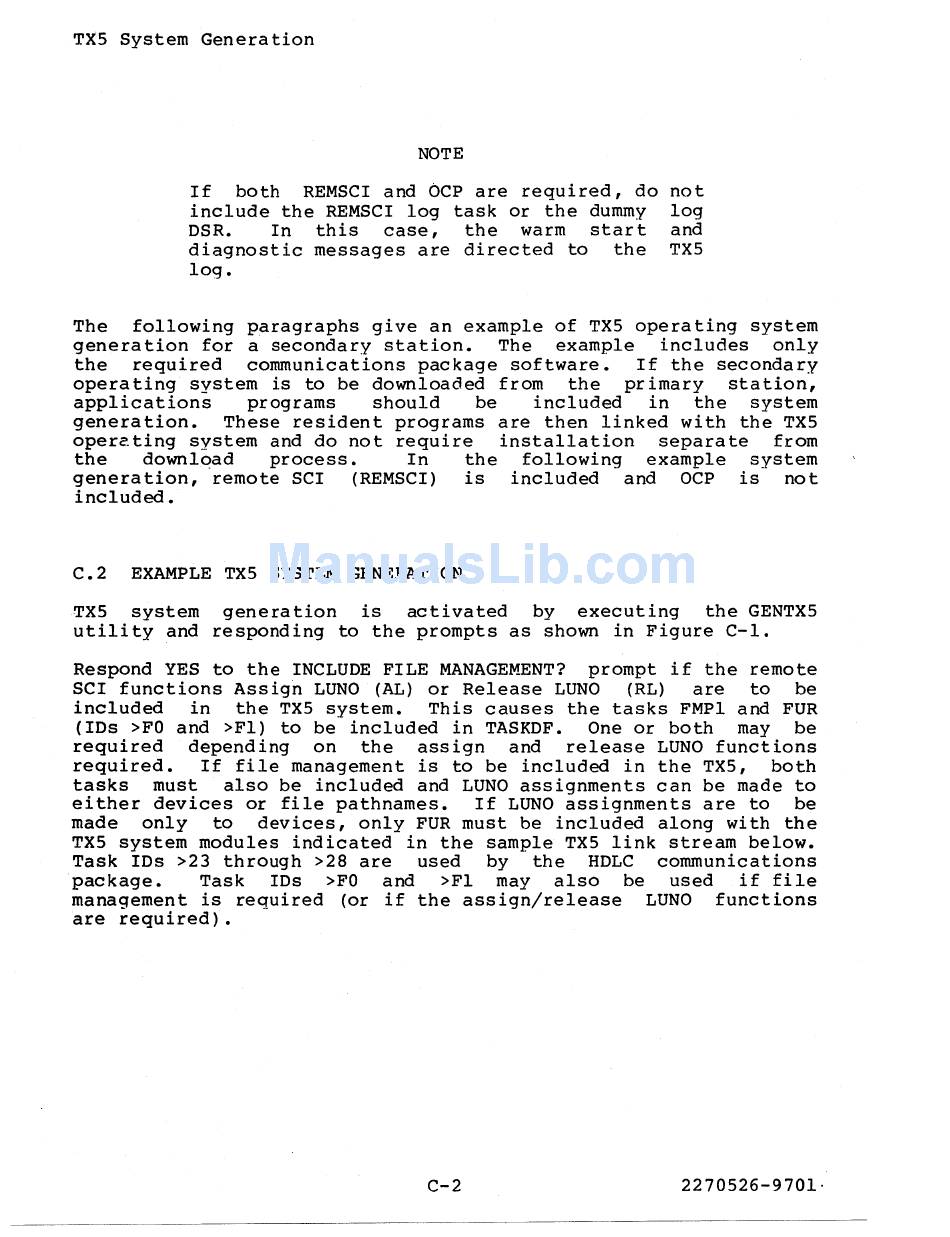

TX5 System Generation
NOTE
If both
REMSCI and bcp are required, do not
include the REMSCI log task or the dummy log
DSR. In this case, the warm start and
diagnostic messages are directed to the TX5
log.
The following paragraphs give an example of TX5 operating system
generation for a secondary station. The example includes only
the required communications package software. If the secondary
operating system is to be downloaded from the primary station,
applications programs should be included in the system
generation. These resident programs are then linked with the TX5
opere.ting system and do not require installation separate from
the downlqad process. In the following example system
generation, remote SCI (REMSCI) is included and OCP is not
included.
C.2 EXAMPLE TX5 SYSTEM GENERATION
TX5 system generation is activated by executing the GENTX5
utility and responding to the prompts as shown in Figure C-l.
Respond YES to the INCLUDE FILE MANAGEMENT? prompt if the remote
SCI functions Assign LUNO (AL) or Release LUNO (RL) are to be
included in the TX5 system. This causes the tasks FMPI and FUR
(IDs >FO and >Fl) to be included in TASKDF. One or both may be
required depending on the assign and release LUNO functions
required. If file management is to be included in the TX5, both
tasks must also be included and LUNO assignments can be made to
either devices or file pathnames. If LUNO assignments are to be
made only to devices, only FUR must be included along with the
TX5 system modules indicated in the sample TX5 link stream below.
Task IDs >23 through >28 are used by the HDLC communications
package. Task IDs >FO and >Fl may also be used if file
management is required (or if the assign/release LUNO functions
are required).
C-2
2270526-9701-
