Hardware Description - NETGEAR WG302 - 802.11g ProSafe Wireless Access Point Reference Manual

NETGEAR ProSafe 802.11g Wireless Access Point WG302 Reference Manual
• Straight through Category 5 Ethernet cable WG302 802.11g ProSafe Wireless Access Point
Installation Guide
• Resource CD which includes this manual.
• Support Registration card
Contact your reseller or customer support in your area if there are any missing or damaged parts.
You can refer to the Support Information Card for the telephone number of customer support in
your area. You should keep the Support Information card, along with the original packing
materials, and use the packing materials to repack the WG302 if you need to return it for repair. To
qualify for product updates and product warranty registrations, we encourage you to register on the
NETGEAR Web site at: http://www.NETGEAR.com.

Hardware Description

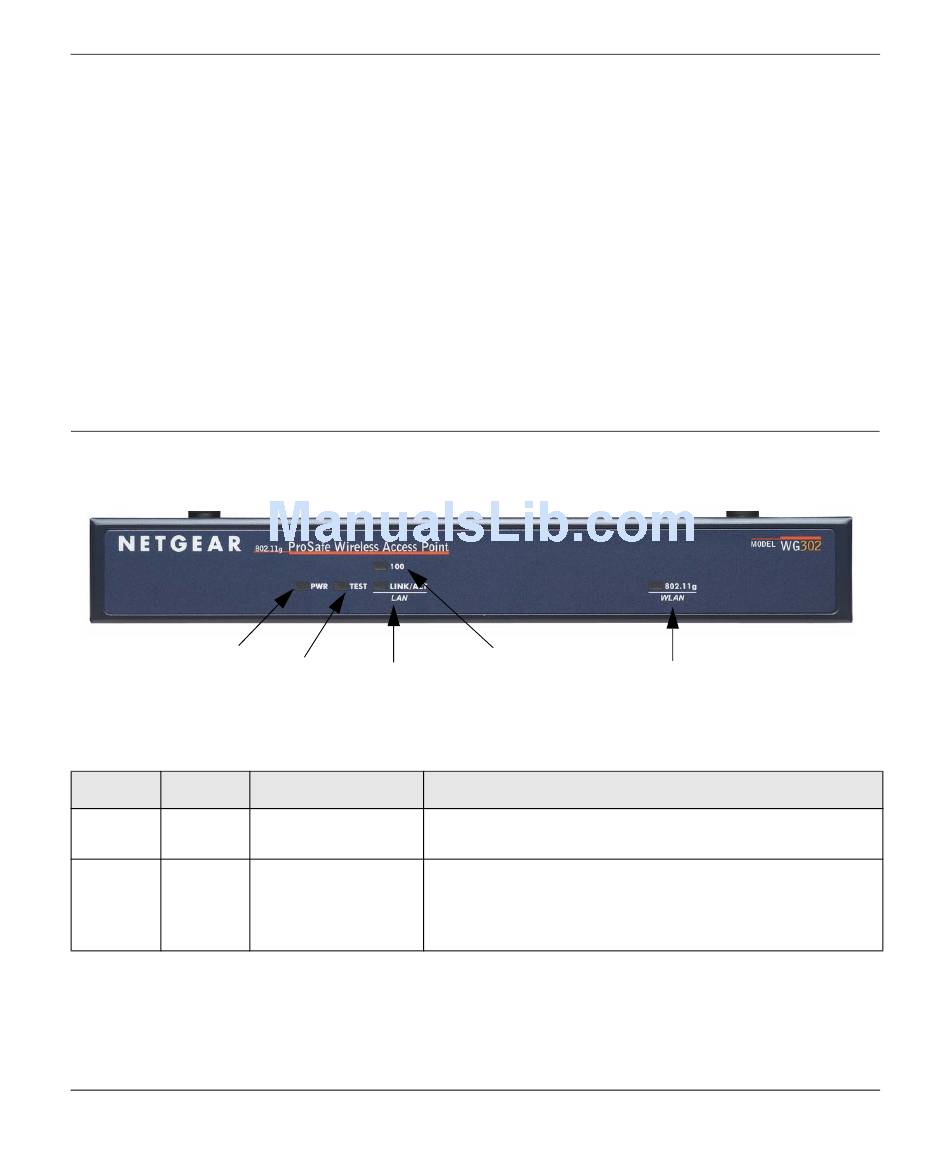

The WG302 front hardware functions are described below:
1
Figure 1-1
The following table explains the LED indicators:
Number LED
1 Power
2 Test
1-6
2
3
Activity
Off No power is supplied to the wireless access point.
On (Green) Power is supplied to the wireless access point.
Blinking Self Test Indicator
Indicates self test, loading software, or system fault (if
continues).
Note: This LED may blink for a minute before going off.
v4.0, April 2006
